ATE Originele remschijf (24011201681) voor Land Rover
€ 163,35
(incl. btw)
€ 135,00 belastingexcl.
Onderdeelnummer:
ATE 24.0112-0168.1
(240112-01681)
- Buitendiameter [mm]: 354,0
- Binnendiameter [mm]: 210,0
- Remschijfdikte [mm]: 11,9
- Aantal bolt holes: 5
- Handelsnummer: 412168
Logistieke informatie:
- Ean Code: 4006633267465
- Gewicht: 9.15kg
Specification of ATE 24.0112-0168.1 / 240112-01681 / 24011201681:
| OE Number | Reference info |
| LAND ROVER SDB000211 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) from 3A129290 Vehicle Identification Number (VIN) to 5A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2005-05 - 2012-08 | 291 | 396 | 4197 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) from 3A129290 Vehicle Identification Number (VIN) to 5A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2002-03 - 2005-08 | 210 | 286 | 4398 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) to 5A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2004-08 - 2012-08 | 220 | 299 | 4394 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) to 5A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2005-05 - 2012-08 | 225 | 306 | 4394 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) from 3A129290 Vehicle Identification Number (VIN) to 5A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2002-03 - 2012-08 | 130 | 177 | 2926 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) from 3A129290 Vehicle Identification Number (VIN) to 9A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2006-04 - 2012-08 | 200 | 272 | 3628 | Closed Off-Road Vehicle |

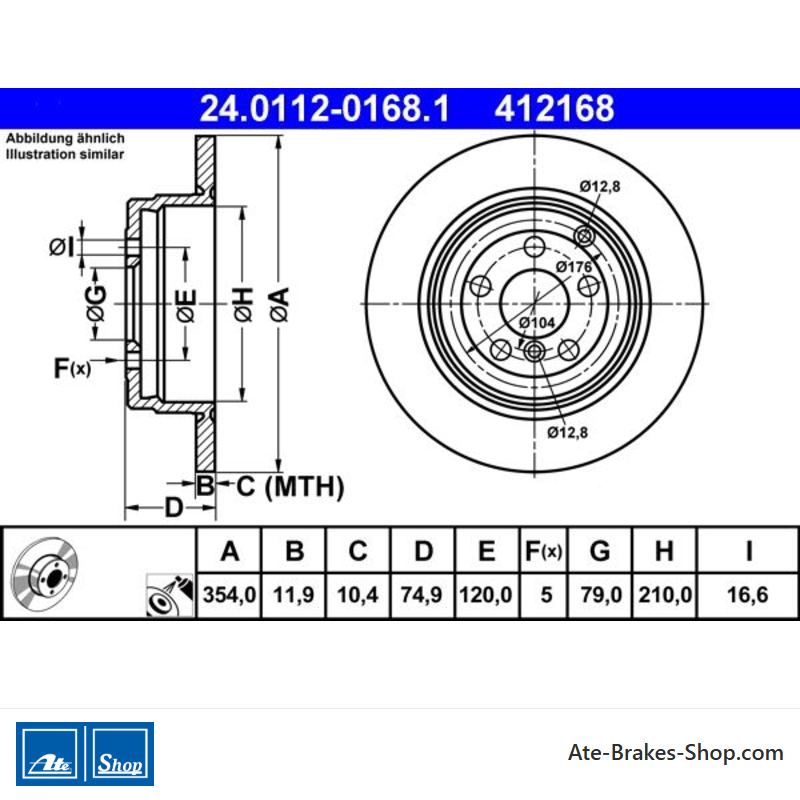

24.0112-0168.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Land Rover
- Handelsnummer
- 412168
- Land van Herkomst
- Italië
- Hoogte
- 74,9
- Buitendiameter [mm]
- 354,0
- Remschijfdikte [mm]
- 11,9
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 79,0
- Binnendiameter [mm]
- 210,0
- Bordiameter [mm]
- 16,6
- Minimale dikte [mm]
- 10,4
Specifieke referenties
- ean13
- 4006633267465
- MPN
- 2401120168102
ATE 24.0112-0168.1
(240112-01681)
- Buitendiameter [mm]: 354,0
- Binnendiameter [mm]: 210,0
- Remschijfdikte [mm]: 11,9
- Aantal bolt holes: 5
- Handelsnummer: 412168
