ATE Original 2 Pieces Brake Disk (24011201841) for Fiat, Opel
€101.64
(tax incl.)
€84.00 tax excl.
Part-number:
ATE 24.0112-0184.1
(240112-01841)
- Outer Diameter [mm]: 257,0
- Inner Diameter [mm]: 127,0
- Brake Disc Thickness [mm]: 12,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 412184
Logistical information:
- Ean Code: 4006633313773
- Weight: 8.33kg
Specification of ATE 24.0112-0184.1 / 240112-01841 / 24011201841:
| OE Number | Reference info |
| FIAT 55700918 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 55700398 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51806099 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51806103 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51830236 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 93188916 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 69 022 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 569022 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 93188916 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 69 022 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 569022 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2005-10 - | 48 | 65 | 1242 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2010-12 | 44 | 60 | 998 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2009-12 - 2014-08 | 48 | 65 | 998 | Hatchback |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-08 - 2014-08 | 44 | 60 | 998 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Front Axle | 2010-01 - 2014-08 | 48 | 65 | 998 | Hatchback Van |
24.0112-0184.1

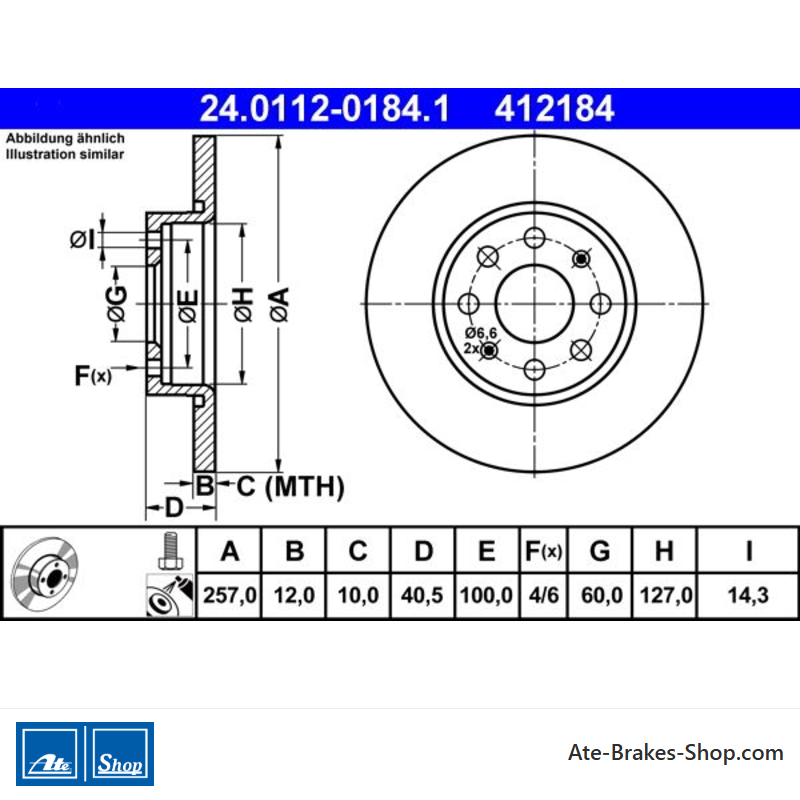

Data sheet
- Article Status
- Orderable
- Car Brand
- Fiat
Opel - Trade Number
- 412184
- Country Of Origin
- Italy
- Additional Info
- with bolts/screws
- Height
- 40,5
- Outer Diameter [mm]
- 257,0
- Brake Disc Thickness [mm]
- 12,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 60,0
- Inner Diameter [mm]
- 127,0
- Bore Diameter [mm]
- 14,3
- Minimum Thickness [mm]
- 10,0
Specific References
- EAN13
- 4006633313773
- MPN
- 2401120184102
ATE 24.0112-0184.1
(240112-01841)
- Outer Diameter [mm]: 257,0
- Inner Diameter [mm]: 127,0
- Brake Disc Thickness [mm]: 12,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 412184
