ATE Original 2 Teile Bremsscheibe (24011201841) für Fiat, Opel
101,64 €
(inkl. MwSt.)
84,00 € Steuerexzl.
Teilenummer:
ATE 24.0112-0184.1
(240112-01841)
- Außendurchmesser [mm]: 257,0
- Innendurchmesser [mm]: 127,0
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 412184
Logistische Informationen:
- Ean-Code: 4006633313773
- Gewicht: 8.33kg
Specification of ATE 24.0112-0184.1 / 240112-01841 / 24011201841:
| OE Number | Reference info |
| FIAT 55700918 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 55700398 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51806099 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51806103 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51830236 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 93188916 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 69 022 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 569022 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 93188916 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 69 022 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 569022 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2005-10 - | 48 | 65 | 1242 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2010-12 | 44 | 60 | 998 | Hatchback |
| OPEL CORSA D (S07) Fitting Position Front Axle | 2009-12 - 2014-08 | 48 | 65 | 998 | Hatchback |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-08 - 2014-08 | 44 | 60 | 998 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Fitting Position Front Axle | 2010-01 - 2014-08 | 48 | 65 | 998 | Hatchback Van |

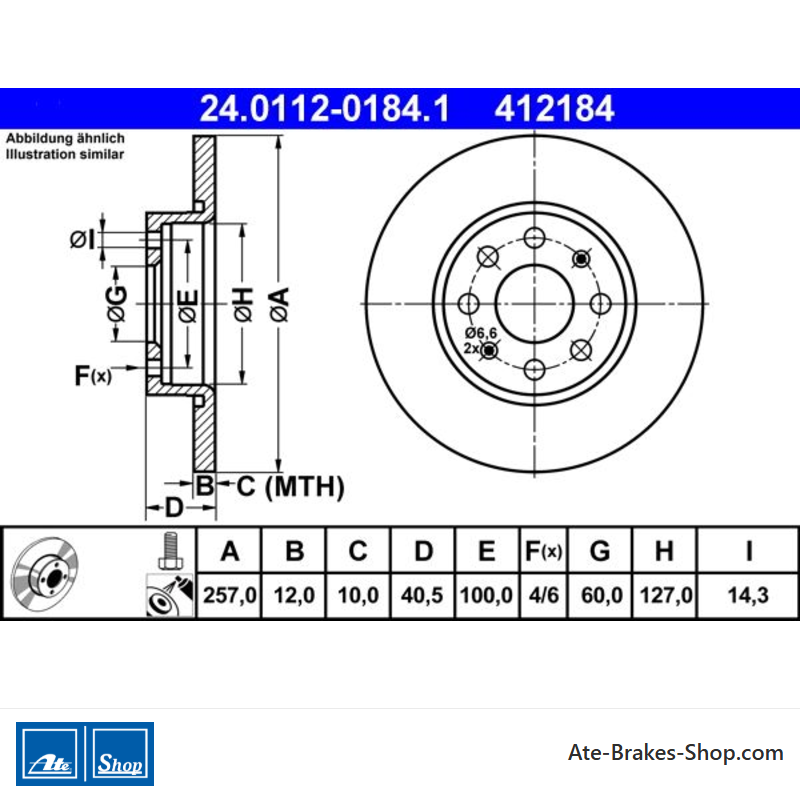

24.0112-0184.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Opel - Handelsnummer
- 412184
- Herkunftsland
- Italien
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 40,5
- Außendurchmesser [mm]
- 257,0
- Bremsscheibendicke [mm]
- 12,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 60,0
- Innendurchmesser [mm]
- 127,0
- Bohrdurchmesser [mm]
- 14,3
- Mindestdicke [mm]
- 10,0
Spezifische Referenzen
- ean13
- 4006633313773
- Hersteller-Teilenummer (MPN)
- 2401120184102
ATE 24.0112-0184.1
(240112-01841)
- Außendurchmesser [mm]: 257,0
- Innendurchmesser [mm]: 127,0
- Bremsscheibendicke [mm]: 12,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 412184
