ATE Original Brake Disk (24011401102) for Iveco
€152.46
(tax incl.)
€126.00 tax excl.
Part-number:
ATE 24.0114-0110.2
(240114-01102)
- Outer Diameter [mm]: 267,0
- Inner Diameter [mm]: 115,0
- Brake Disc Thickness [mm]: 14,2
- Number of Bolt Holes: 6
- Trade Number: 414110
Logistical information:
- Ean Code: 4006633028288
- Weight: 10.81kg
Specification of ATE 24.0114-0110.2 / 240114-01102 / 24011401102:
| OE Number | Reference info |
| IVECO 1904529 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| IVECO 93800492 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| IVECO DAILY I Van Construction Year to 198105 Fitting Position Front Axle | 1978-01 - 1989-12 | 53 | 72 | 2445 | Van |
| IVECO DAILY I Van Construction Year to 198105 Fitting Position Front Axle | 1978-01 - 1989-12 | 53 | 72 | 2445 | Van |
| IVECO DAILY I Van Fitting Position Front Axle | 1983-01 - 1989-06 | 53 | 72 | 2445 | Van |
| IVECO DAILY I Platform/Chassis Construction Year to 198105 Fitting Position Front Axle | 1978-01 - 1989-12 | 53 | 72 | 2445 | Platform/Chassis |
| IVECO DAILY I Platform/Chassis Construction Year to 198105 Fitting Position Front Axle | 1978-01 - 1989-12 | 53 | 72 | 2445 | Platform/Chassis |
| IVECO DAILY I Platform/Chassis Fitting Position Front Axle | 1983-01 - 1989-06 | 53 | 72 | 2445 | Platform/Chassis |
| IVECO DAILY II Van Construction Year to 199605 Fitting Position Front Axle | 1989-01 - 1998-08 | 55 | 75 | 2499 | Van |
| IVECO DAILY II Van Construction Year to 199605 Fitting Position Front Axle | 1989-01 - 1998-08 | 60 | 82 | 2499 | Van |
| IVECO DAILY II Van Construction Year to 199605 Fitting Position Front Axle | 1989-01 - 1998-08 | 60 | 82 | 2499 | Van |
| IVECO DAILY II Van Construction Year to 199605 Fitting Position Front Axle | 1991-01 - 1998-08 | 55 | 75 | 2499 | Van |
| IVECO DAILY II Van Construction Year to 199605 Fitting Position Front Axle | 1991-01 - 1998-08 | 60 | 82 | 2499 | Van |
| IVECO DAILY II Platform/Chassis Construction Year to 199605 Fitting Position Front Axle | 1989-01 - 1998-08 | 55 | 75 | 2499 | Platform/Chassis |
| IVECO DAILY II Platform/Chassis Construction Year to 199605 Fitting Position Front Axle | 1989-01 - 1998-08 | 60 | 82 | 2499 | Platform/Chassis |
24.0114-0110.2

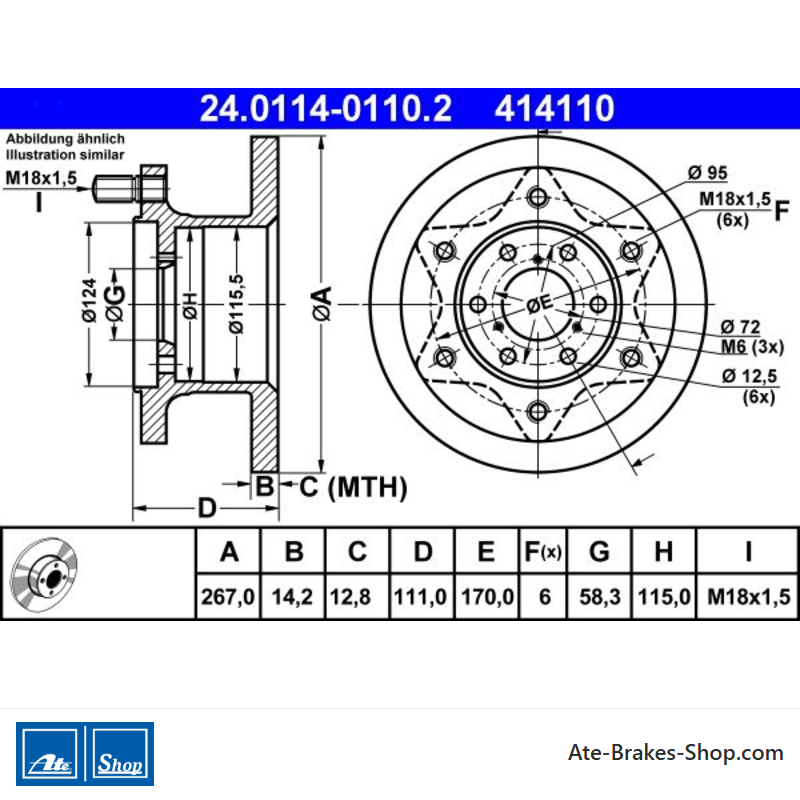

Data sheet
- Article Status
- Orderable
- Car Brand
- Iveco
- Trade Number
- 414110
- Country Of Origin
- Italy
- Additional Info
- with bolts/screws
- Height
- 111,0
- Outer Diameter [mm]
- 267,0
- Brake Disc Thickness [mm]
- 14,2
- Brake Disc Type
- solid
- Number of Bolt Holes
- 6
- Bolt Hole Diameter [mm]
- 170,0
- Centering Diameter [mm]
- 58,3
- Inner Diameter [mm]
- 115,0
- Thread Size
- M18x1,5
- Minimum Thickness [mm]
- 12,8
Specific References
- EAN13
- 4006633028288
- MPN
- 2401140110202
ATE 24.0114-0110.2
(240114-01102)
- Outer Diameter [mm]: 267,0
- Inner Diameter [mm]: 115,0
- Brake Disc Thickness [mm]: 14,2
- Number of Bolt Holes: 6
- Trade Number: 414110
