ATE Originele remschijf (24011401102) voor Iveco
€ 152,46
(incl. btw)
€ 126,00 belastingexcl.
Onderdeelnummer:
ATE 24.0114-0110.2
(240114-01102)
- Buitendiameter [mm]: 267,0
- Binnendiameter [mm]: 115,0
- Remschijfdikte [mm]: 14,2
- Aantal bolt holes: 6
- Handelsnummer: 414110
Logistieke informatie:
- Ean Code: 4006633028288
- Gewicht: 10.81kg
Specification of ATE 24.0114-0110.2 / 240114-01102 / 24011401102:
| OE Number | Reference info |
| IVECO 1904529 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| IVECO 93800492 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| IVECO DAILY I Van Construction Year to 198105 Fitting Position Front Axle | 1978-01 - 1989-12 | 53 | 72 | 2445 | Van |
| IVECO DAILY I Van Construction Year to 198105 Fitting Position Front Axle | 1978-01 - 1989-12 | 53 | 72 | 2445 | Van |
| IVECO DAILY I Van Fitting Position Front Axle | 1983-01 - 1989-06 | 53 | 72 | 2445 | Van |
| IVECO DAILY I Platform/Chassis Construction Year to 198105 Fitting Position Front Axle | 1978-01 - 1989-12 | 53 | 72 | 2445 | Platform/Chassis |
| IVECO DAILY I Platform/Chassis Construction Year to 198105 Fitting Position Front Axle | 1978-01 - 1989-12 | 53 | 72 | 2445 | Platform/Chassis |
| IVECO DAILY I Platform/Chassis Fitting Position Front Axle | 1983-01 - 1989-06 | 53 | 72 | 2445 | Platform/Chassis |
| IVECO DAILY II Van Construction Year to 199605 Fitting Position Front Axle | 1989-01 - 1998-08 | 55 | 75 | 2499 | Van |
| IVECO DAILY II Van Construction Year to 199605 Fitting Position Front Axle | 1989-01 - 1998-08 | 60 | 82 | 2499 | Van |
| IVECO DAILY II Van Construction Year to 199605 Fitting Position Front Axle | 1989-01 - 1998-08 | 60 | 82 | 2499 | Van |
| IVECO DAILY II Van Construction Year to 199605 Fitting Position Front Axle | 1991-01 - 1998-08 | 55 | 75 | 2499 | Van |
| IVECO DAILY II Van Construction Year to 199605 Fitting Position Front Axle | 1991-01 - 1998-08 | 60 | 82 | 2499 | Van |
| IVECO DAILY II Platform/Chassis Construction Year to 199605 Fitting Position Front Axle | 1989-01 - 1998-08 | 55 | 75 | 2499 | Platform/Chassis |
| IVECO DAILY II Platform/Chassis Construction Year to 199605 Fitting Position Front Axle | 1989-01 - 1998-08 | 60 | 82 | 2499 | Platform/Chassis |

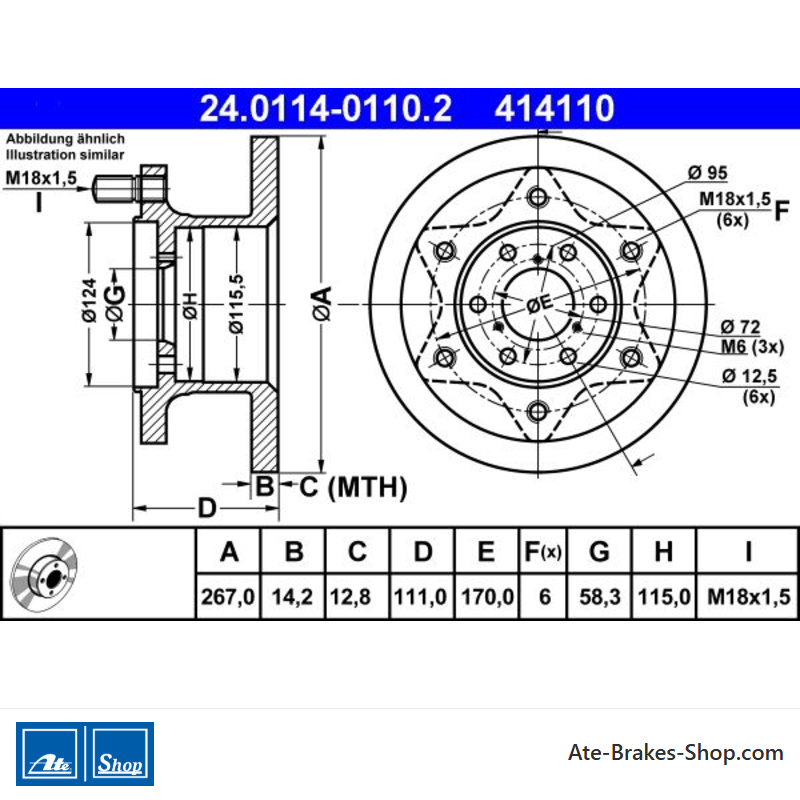

24.0114-0110.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Iveco
- Handelsnummer
- 414110
- Land van Herkomst
- Italië
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 111,0
- Buitendiameter [mm]
- 267,0
- Remschijfdikte [mm]
- 14,2
- Type remschijf
- Solide
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 170,0
- Centreringsdiameter [mm]
- 58,3
- Binnendiameter [mm]
- 115,0
- Draadmaat
- M18x1,5
- Minimale dikte [mm]
- 12,8
Specifieke referenties
- ean13
- 4006633028288
- MPN
- 2401140110202
ATE 24.0114-0110.2
(240114-01102)
- Buitendiameter [mm]: 267,0
- Binnendiameter [mm]: 115,0
- Remschijfdikte [mm]: 14,2
- Aantal bolt holes: 6
- Handelsnummer: 414110
