ATE Original Brake Disk (24011601311) for Nissan
€199.65
(tax incl.)
€165.00 tax excl.
Part-number:
ATE 24.0116-0131.1
(240116-01311)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 164,6
- Brake Disc Thickness [mm]: 16,0
- Number of Bolt Holes: 6
- Trade Number: 416131
Logistical information:
- Ean Code: 4006633338639
- Weight: 6.99kg
Specification of ATE 24.0116-0131.1 / 240116-01311 / 24011601311:
| OE Number | Reference info |
| NISSAN 43206-MB60A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| NISSAN CABSTAR (F24M, F24W) Construction Year to 201109 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2013-12 | 81 | 110 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 201110 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2013-12 | 90 | 122 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 Construction Year to 201109 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2012-12 | 96 | 131 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 201110 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2013-12 | 100 | 136 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 3500 kg Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2013-12 | 101 | 137 | 2953 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 3500 kg Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2013-12 | 110 | 150 | 2953 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Construction Year from 201402 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2014-01 - | 90 | 122 | 2488 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Fitting Position Rear Axle gross vehicle weight rating [kg] 3500 kg | 2016-09 - | 96 | 130 | 2953 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Construction Year from 201402 gross vehicle weight rating [kg] 3500 kg Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2014-01 - | 100 | 136 | 2488 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Construction Year from 201402 Fitting Position Rear Axle gross vehicle weight rating [kg] 3500 kg Braking/Driving Dynamics for vehicles with ABS | 2014-01 - | 107 | 146 | 2488 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Fitting Position Rear Axle gross vehicle weight rating [kg] 3500 kg | 2016-09 - | 110 | 150 | 2953 | Platform/Chassis |
24.0116-0131.1

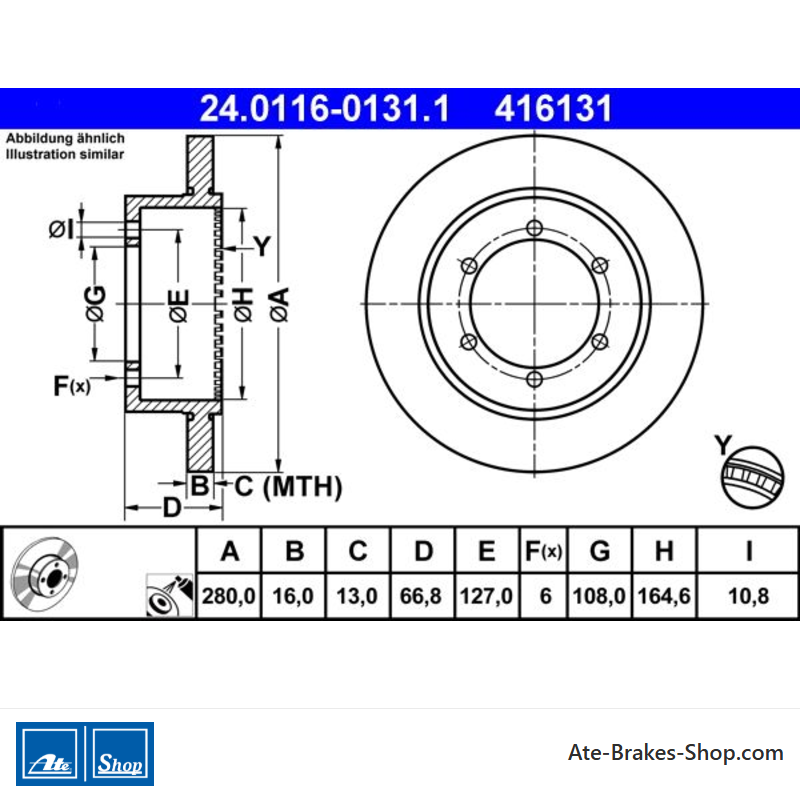

Data sheet
- Article Status
- Orderable
- Car Brand
- Nissan
- Trade Number
- 416131
- Country Of Origin
- China
- Additional Info
- with ABS sensor ring
- Height
- 66,8
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 16,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 6
- Bolt Hole Diameter [mm]
- 127,0
- Centering Diameter [mm]
- 108,0
- Inner Diameter [mm]
- 164,6
- Bore Diameter [mm]
- 10,8
- Minimum Thickness [mm]
- 13,0
Specific References
- EAN13
- 4006633338639
- MPN
- 2401160131102
ATE 24.0116-0131.1
(240116-01311)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 164,6
- Brake Disc Thickness [mm]: 16,0
- Number of Bolt Holes: 6
- Trade Number: 416131
