ATE Originele remschijf (24011601311) voor Nissan
€ 199,65
(incl. btw)
€ 165,00 belastingexcl.
Onderdeelnummer:
ATE 24.0116-0131.1
(240116-01311)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 164,6
- Remschijfdikte [mm]: 16,0
- Aantal bolt holes: 6
- Handelsnummer: 416131
Logistieke informatie:
- Ean Code: 4006633338639
- Gewicht: 6.99kg
Specification of ATE 24.0116-0131.1 / 240116-01311 / 24011601311:
| OE Number | Reference info |
| NISSAN 43206-MB60A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| NISSAN CABSTAR (F24M, F24W) Construction Year to 201109 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2013-12 | 81 | 110 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 201110 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2013-12 | 90 | 122 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 Construction Year to 201109 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2012-12 | 96 | 131 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 201110 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2013-12 | 100 | 136 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 3500 kg Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2013-12 | 101 | 137 | 2953 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 3500 kg Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2006-09 - 2013-12 | 110 | 150 | 2953 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Construction Year from 201402 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2014-01 - | 90 | 122 | 2488 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Fitting Position Rear Axle gross vehicle weight rating [kg] 3500 kg | 2016-09 - | 96 | 130 | 2953 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Construction Year from 201402 gross vehicle weight rating [kg] 3500 kg Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2014-01 - | 100 | 136 | 2488 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Construction Year from 201402 Fitting Position Rear Axle gross vehicle weight rating [kg] 3500 kg Braking/Driving Dynamics for vehicles with ABS | 2014-01 - | 107 | 146 | 2488 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Fitting Position Rear Axle gross vehicle weight rating [kg] 3500 kg | 2016-09 - | 110 | 150 | 2953 | Platform/Chassis |

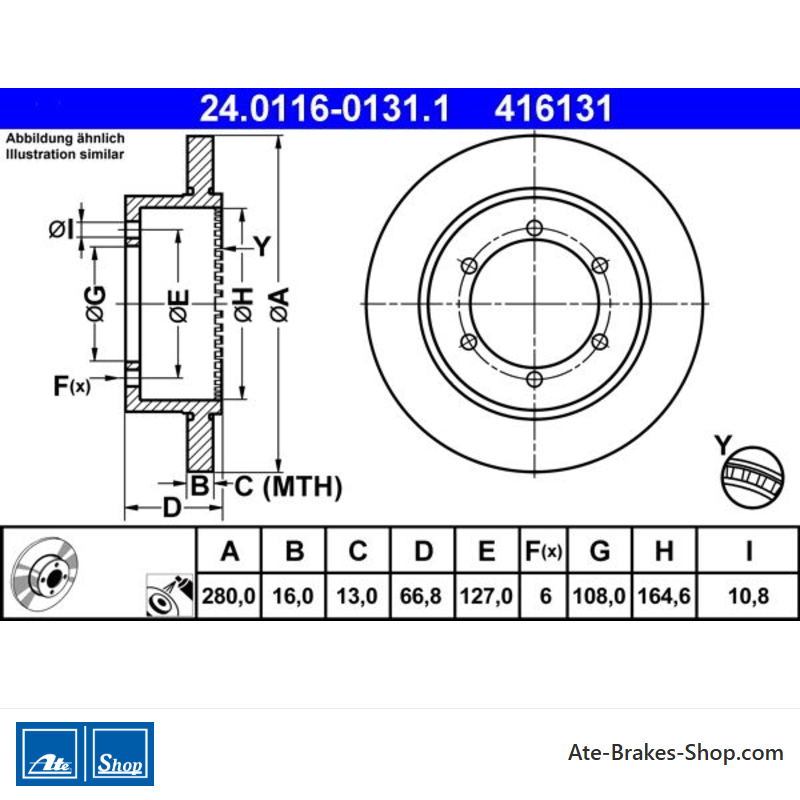

24.0116-0131.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Nissan
- Handelsnummer
- 416131
- Land van Herkomst
- China
- Aanvullende informatie
- met ABS-sensorring
- Hoogte
- 66,8
- Buitendiameter [mm]
- 280,0
- Remschijfdikte [mm]
- 16,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 127,0
- Centreringsdiameter [mm]
- 108,0
- Binnendiameter [mm]
- 164,6
- Bordiameter [mm]
- 10,8
- Minimale dikte [mm]
- 13,0
Specifieke referenties
- ean13
- 4006633338639
- MPN
- 2401160131102
ATE 24.0116-0131.1
(240116-01311)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 164,6
- Remschijfdikte [mm]: 16,0
- Aantal bolt holes: 6
- Handelsnummer: 416131
