2 pieces of ATE original Brake Disk (24011601341) for Ford
€105.27
(tax incl.)
€87.00 tax excl.
Part-number:
ATE 24.0116-0134.1
(240116-01341)
- Outer Diameter [mm]: 284,0
- Inner Diameter [mm]: 148,0
- Brake Disc Thickness [mm]: 16,0
- Number of Bolt Holes: 10
- 2 pieces of Brake Disc
- Trade Number: 416134
Logistical information:
- Ean Code: 4006633383721
- Weight: 12.37kg
Specification of ATE 24.0116-0134.1 / 240116-01341 / 24011601341:
| OE Number | Reference info |
| FORD 8C1V-2A315-AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1488311 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Construction Year from 200711 Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 100 | 136 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Construction Year from 200711 Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 74 | 100 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 114 | 155 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 74 | 100 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 103 | 140 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2007-09 - 2014-08 | 147 | 200 | 3199 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 100 | 136 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Vehicle type 460 | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 74 | 100 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 85 | 115 | 2402 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-09 - 2014-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-09 - 2014-08 | 100 | 135 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 85 | 115 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 103 | 140 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-11 - 2014-08 | 103 | 140 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2008-02 - 2014-08 | 147 | 200 | 3199 | Bus |

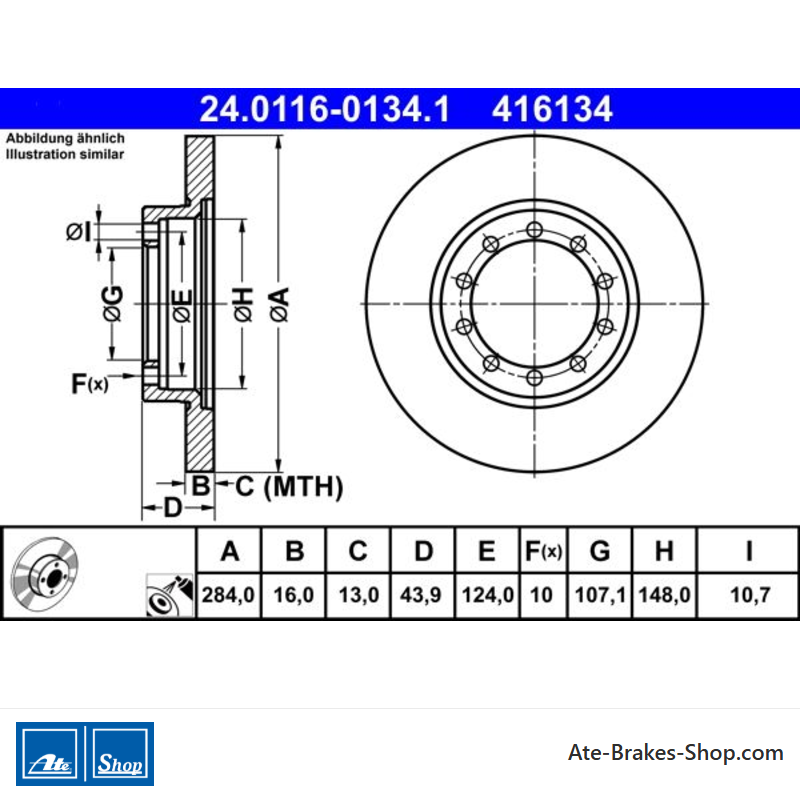

24.0116-0134.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
- Trade Number
- 416134
- Country Of Origin
- China
- Height
- 43,9
- Outer Diameter [mm]
- 284,0
- Brake Disc Thickness [mm]
- 16,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 10
- Bolt Hole Diameter [mm]
- 124,0
- Centering Diameter [mm]
- 107,1
- Inner Diameter [mm]
- 148,0
- Bore Diameter [mm]
- 10,7
- Minimum Thickness [mm]
- 13,0
Specific References
- EAN13
- 4006633383721
- MPN
- 2401160134102
ATE 24.0116-0134.1
(240116-01341)
- Outer Diameter [mm]: 284,0
- Inner Diameter [mm]: 148,0
- Brake Disc Thickness [mm]: 16,0
- Number of Bolt Holes: 10
- 2 pieces of Brake Disc
- Trade Number: 416134
