ATE Disque de frein original en 2 pièces (24011601341) pour Ford
105,27 €
TTC
87,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0116-0134.1
(240116-01341)
- Diamètre extérieur [mm] : 284,0
- Diamètre intérieur [mm] : 148,0
- Épaisseur du disque de frein [mm] : 16,0
- Nombre de trous de culasse : 10
- 2 pièces de disque de frein
- Numéro de l’échange : 416134
Informations logistiques :
- Code Ean : 4006633383721
- Poids : 12.37kg

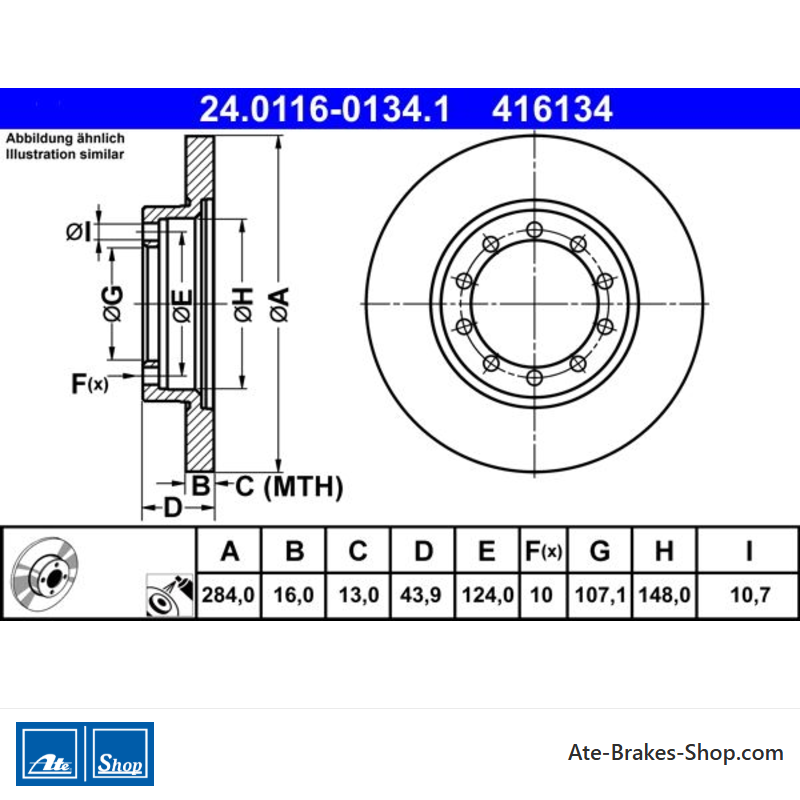

Specification of ATE 24.0116-0134.1 / 240116-01341 / 24011601341:
| OE Number | Reference info |
| FORD 8C1V-2A315-AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1488311 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Construction Year from 200711 Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 100 | 136 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Construction Year from 200711 Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 74 | 100 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 114 | 155 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 74 | 100 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 103 | 140 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle Tyres for dual tyres | 2007-09 - 2014-08 | 147 | 200 | 3199 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 100 | 136 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Rear Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Vehicle type 460 | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 74 | 100 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 85 | 115 | 2402 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-09 - 2014-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-09 - 2014-08 | 100 | 135 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2011-10 - 2014-08 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 85 | 115 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-04 - 2014-08 | 103 | 140 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2006-11 - 2014-08 | 103 | 140 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle Tyres for dual tyres | 2008-02 - 2014-08 | 147 | 200 | 3199 | Bus |
24.0116-0134.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Ford
- Numéro de trade
- 416134
- Pays d’origine
- Chine
- Hauteur
- 43,9
- Diamètre extérieur [mm]
- 284,0
- Épaisseur du disque de frein [mm]
- 16,0
- Type à disque de frein
- solide
- Surface
- Enduit
- Nombre de trous de boulons
- 10
- Diamètre du trou de boulon [mm]
- 124,0
- Diamètre de centrage [mm]
- 107,1
- Diamètre intérieur [mm]
- 148,0
- Diamètre du canon [mm]
- 10,7
- Épaisseur minimale [mm]
- 13,0
Références spécifiques
- EAN-13
- 4006633383721
- MPN
- 2401160134102
ATE 24.0116-0134.1
(240116-01341)
- Diamètre extérieur [mm] : 284,0
- Diamètre intérieur [mm] : 148,0
- Épaisseur du disque de frein [mm] : 16,0
- Nombre de trous de culasse : 10
- 2 pièces de disque de frein
- Numéro de l’échange : 416134
