2 pieces of ATE original Brake Disk (24011701041) for Suzuki
€112.53
(tax incl.)
€93.00 tax excl.
Part-number:
ATE 24.0117-0104.1
(240117-01041)
- Outer Diameter [mm]: 287,0
- Inner Diameter [mm]: 183,0
- Brake Disc Thickness [mm]: 17,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 417104
Logistical information:
- Ean Code: 4006633025881
- Weight: 10.79kg
Specification of ATE 24.0117-0104.1 / 240117-01041 / 24011701041:
| OE Number | Reference info |
| SUZUKI 55211-56B00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Vehicle Identification Number (VIN) to 00201861 Fitting Position Front Axle | 2003-12 - | 48 | 65 | 1461 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Vehicle Identification Number (VIN) to 00201861 Fitting Position Front Axle | 2005-08 - | 63 | 86 | 1461 | Closed Off-Road Vehicle |
| SUZUKI VITARA (ET, TA, TD) Construction Year from 199102 Construction Year to 199412 Fitting Position Front Axle | 1990-07 - 1998-03 | 71 | 97 | 1590 | Closed Off-Road Vehicle |
24.0117-0104.1

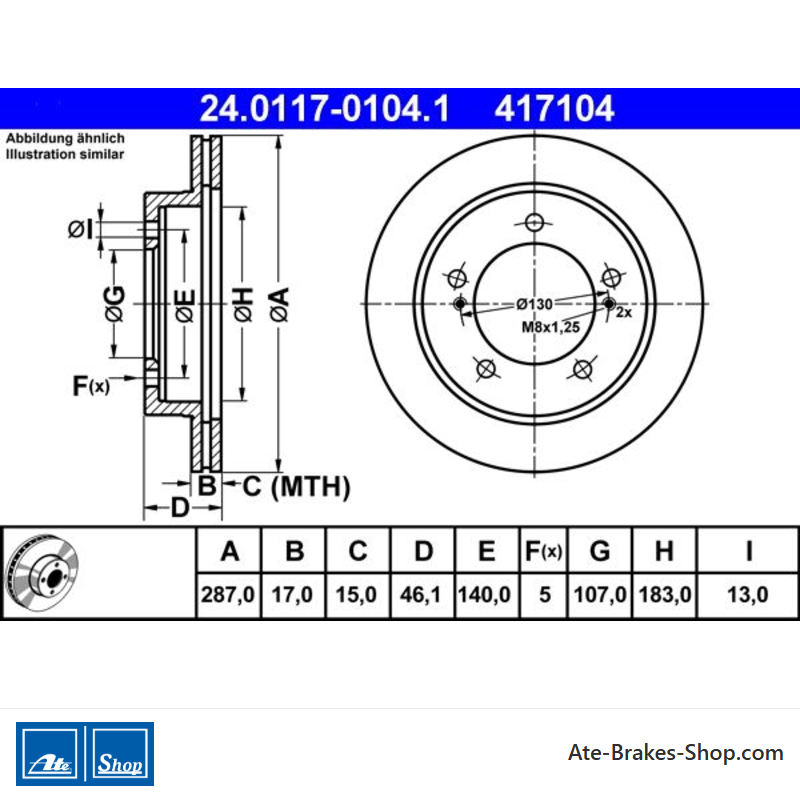

Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 417104
- Country Of Origin
- Italy
- Height
- 46,1
- Outer Diameter [mm]
- 287,0
- Brake Disc Thickness [mm]
- 17,0
- Brake Disc Type
- Vented
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 140,0
- Centering Diameter [mm]
- 107,0
- Inner Diameter [mm]
- 183,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 15,0
Specific References
- EAN13
- 4006633025881
- MPN
- 2401170104102
ATE 24.0117-0104.1
(240117-01041)
- Outer Diameter [mm]: 287,0
- Inner Diameter [mm]: 183,0
- Brake Disc Thickness [mm]: 17,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 417104
