ATE Originele 2-delige remschijf (24011701041) voor Suzuki
€ 112,53
(incl. btw)
€ 93,00 belastingexcl.
Onderdeelnummer:
ATE 24.0117-0104.1
(240117-01041)
- Buitendiameter [mm]: 287,0
- Binnendiameter [mm]: 183,0
- Remschijfdikte [mm]: 17,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 417104
Logistieke informatie:
- Ean Code: 4006633025881
- Gewicht: 10.79kg

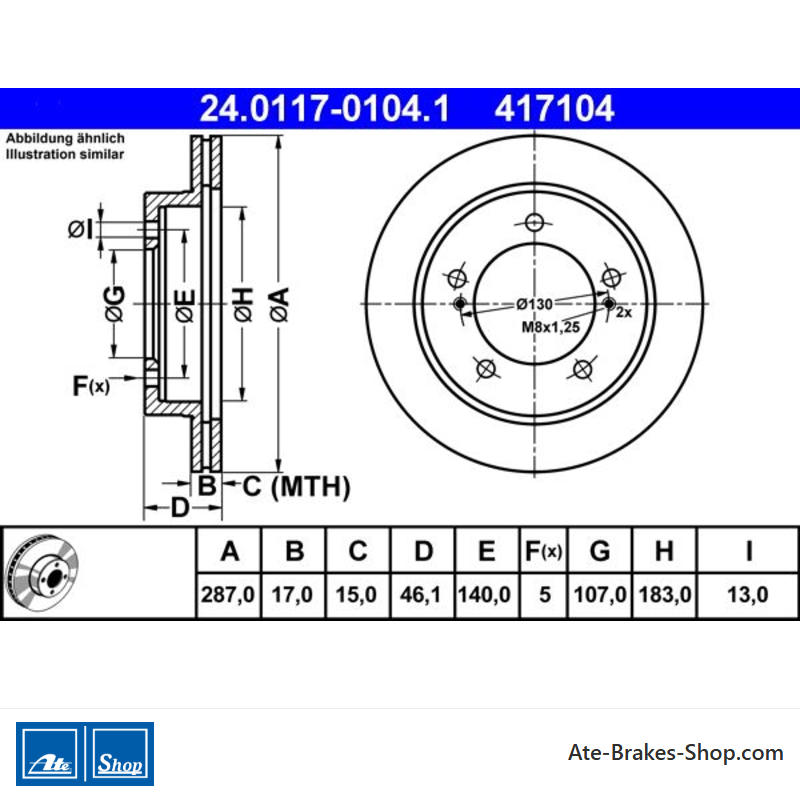

Specification of ATE 24.0117-0104.1 / 240117-01041 / 24011701041:
| OE Number | Reference info |
| SUZUKI 55211-56B00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Vehicle Identification Number (VIN) to 00201861 Fitting Position Front Axle | 2003-12 - | 48 | 65 | 1461 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Vehicle Identification Number (VIN) to 00201861 Fitting Position Front Axle | 2005-08 - | 63 | 86 | 1461 | Closed Off-Road Vehicle |
| SUZUKI VITARA (ET, TA, TD) Construction Year from 199102 Construction Year to 199412 Fitting Position Front Axle | 1990-07 - 1998-03 | 71 | 97 | 1590 | Closed Off-Road Vehicle |
24.0117-0104.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Suzuki
- Handelsnummer
- 417104
- Land van Herkomst
- Italië
- Hoogte
- 46,1
- Buitendiameter [mm]
- 287,0
- Remschijfdikte [mm]
- 17,0
- Type remschijf
- Geventileerd
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 140,0
- Centreringsdiameter [mm]
- 107,0
- Binnendiameter [mm]
- 183,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 15,0
Specifieke referenties
- ean13
- 4006633025881
- MPN
- 2401170104102
ATE 24.0117-0104.1
(240117-01041)
- Buitendiameter [mm]: 287,0
- Binnendiameter [mm]: 183,0
- Remschijfdikte [mm]: 17,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 417104
