2 pieces of ATE original Brake Disk (24011801311) for Toyota
€72.60
(tax incl.)
€60.00 tax excl.
Part-number:
ATE 24.0118-0131.1
(240118-01311)
- Outer Diameter [mm]: 235,0
- Inner Diameter [mm]: 129,5
- Brake Disc Thickness [mm]: 17,9
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 418131
Logistical information:
- Ean Code: 4006633078566
- Weight: 7.46kg
Specification of ATE 24.0118-0131.1 / 240118-01311 / 24011801311:
| OE Number | Reference info |
| TOYOTA 43512-52020 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-52050 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-0D010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA YARIS (_P1_) Construction Year from 200304 Construction Year to 200508 Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2003-03 - 2005-09 | 48 | 65 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 199907 Fitting Position Front Axle | 1999-04 - 2005-09 | 50 | 68 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200410 Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 1999-08 - 2005-11 | 63 | 86 | 1299 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200508 Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2002-04 - 2005-09 | 64 | 87 | 1298 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year from 200112 Construction Year to 200508 Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2001-10 - 2005-09 | 55 | 75 | 1364 | Hatchback |

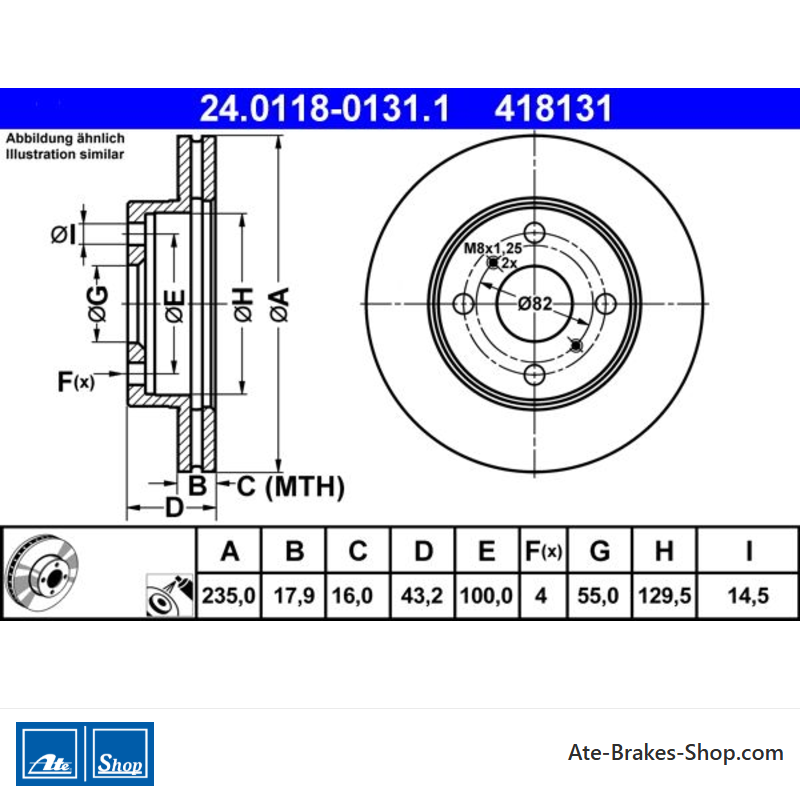

24.0118-0131.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
- Trade Number
- 418131
- Country Of Origin
- Italy
- Height
- 43,2
- Outer Diameter [mm]
- 235,0
- Brake Disc Thickness [mm]
- 17,9
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 129,5
- Bore Diameter [mm]
- 14,5
- Minimum Thickness [mm]
- 16,0
Specific References
- EAN13
- 4006633078566
- MPN
- 2401180131102
ATE 24.0118-0131.1
(240118-01311)
- Outer Diameter [mm]: 235,0
- Inner Diameter [mm]: 129,5
- Brake Disc Thickness [mm]: 17,9
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 418131
