ATE Originale zweiteilige Bremsscheibe (24011801311) für Toyota
72,60 €
(inkl. MwSt.)
60,00 € Steuerexzl.
Teilenummer:
ATE 24.0118-0131.1
(240118-01311)
- Außendurchmesser [mm]: 235,0
- Innendurchmesser [mm]: 129,5
- Bremsscheibendicke [mm]: 17,9
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 418131
Logistische Informationen:
- Ean-Code: 4006633078566
- Gewicht: 7.46kg
Specification of ATE 24.0118-0131.1 / 240118-01311 / 24011801311:
| OE Number | Reference info |
| TOYOTA 43512-52020 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-52050 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-0D010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA YARIS (_P1_) Construction Year from 200304 Construction Year to 200508 Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2003-03 - 2005-09 | 48 | 65 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 199907 Fitting Position Front Axle | 1999-04 - 2005-09 | 50 | 68 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200410 Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 1999-08 - 2005-11 | 63 | 86 | 1299 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200508 Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2002-04 - 2005-09 | 64 | 87 | 1298 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year from 200112 Construction Year to 200508 Braking System for vehicles with drum brakes on the rear axle Fitting Position Front Axle | 2001-10 - 2005-09 | 55 | 75 | 1364 | Hatchback |

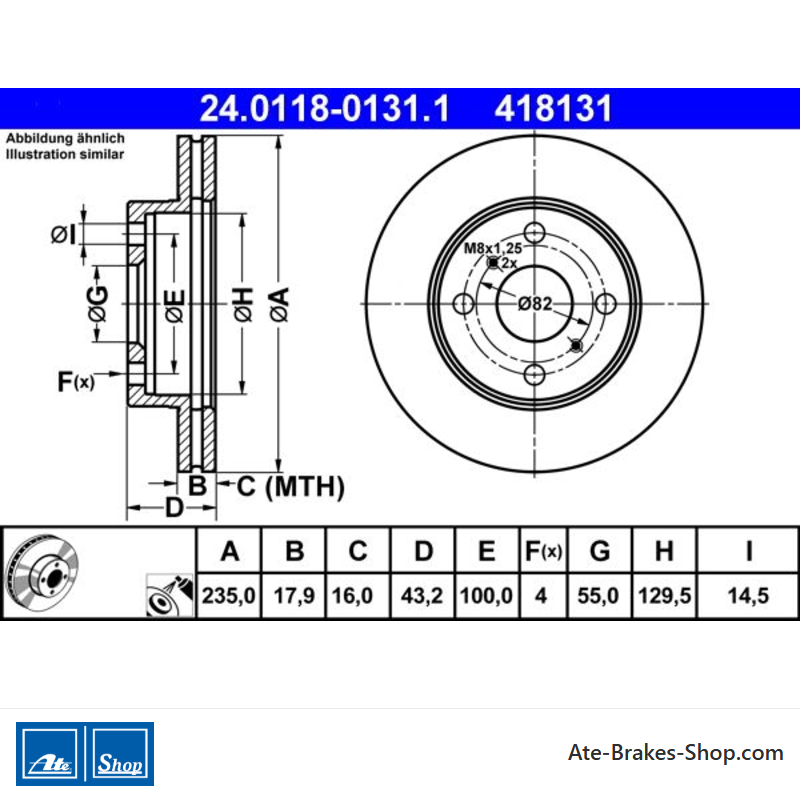

24.0118-0131.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Toyota
- Handelsnummer
- 418131
- Herkunftsland
- Italien
- Höhe
- 43,2
- Außendurchmesser [mm]
- 235,0
- Bremsscheibendicke [mm]
- 17,9
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 55,0
- Innendurchmesser [mm]
- 129,5
- Bohrdurchmesser [mm]
- 14,5
- Mindestdicke [mm]
- 16,0
Spezifische Referenzen
- ean13
- 4006633078566
- Hersteller-Teilenummer (MPN)
- 2401180131102
ATE 24.0118-0131.1
(240118-01311)
- Außendurchmesser [mm]: 235,0
- Innendurchmesser [mm]: 129,5
- Bremsscheibendicke [mm]: 17,9
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 418131
