2 pieces of ATE original Brake Disk (24012001631) for Suzuki
€94.38
(tax incl.)
€78.00 tax excl.
Part-number:
ATE 24.0120-0163.1
(240120-01631)
- Outer Diameter [mm]: 235,0
- Inner Diameter [mm]: 125,2
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 420163
Logistical information:
- Ean Code: 4006633029087
- Weight: 8.51kg
Specification of ATE 24.0120-0163.1 / 240120-01631 / 24012001631:
| OE Number | Reference info |
| SUZUKI 55311-61G00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-61G01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI BALENO (EG) Fitting Position Front Axle | 1996-09 - 2002-05 | 52 | 71 | 1298 | Saloon |
| SUZUKI BALENO (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 63 | 85 | 1298 | Saloon |
| SUZUKI BALENO (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Saloon |
| SUZUKI BALENO (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Saloon |
| SUZUKI BALENO Hatchback (EG) Fitting Position Front Axle | 1996-09 - 2002-05 | 52 | 71 | 1298 | Hatchback |
| SUZUKI BALENO Hatchback (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 63 | 85 | 1298 | Hatchback |
| SUZUKI BALENO Hatchback (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Hatchback |
| SUZUKI BALENO Hatchback (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Hatchback |
| SUZUKI BALENO Estate (EG) Fitting Position Front Axle | 1997-03 - 2002-05 | 63 | 86 | 1298 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Front Axle | 1996-08 - 2002-05 | 72 | 98 | 1590 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Front Axle | 1996-08 - 2002-05 | 72 | 98 | 1590 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Front Axle | 1996-08 - 2002-05 | 73 | 99 | 1590 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Front Axle | 1996-08 - 2002-05 | 73 | 99 | 1590 | Estate |
24.0120-0163.1

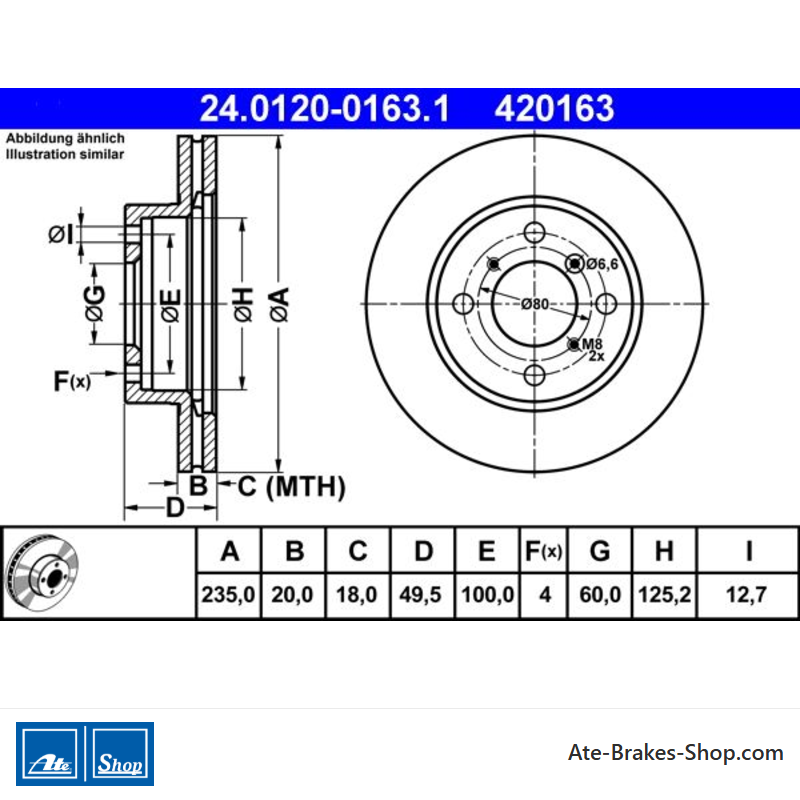

Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 420163
- Country Of Origin
- QU
- Height
- 49,5
- Outer Diameter [mm]
- 235,0
- Brake Disc Thickness [mm]
- 20,0
- Brake Disc Type
- Vented
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 60,0
- Inner Diameter [mm]
- 125,2
- Bore Diameter [mm]
- 12,7
- Minimum Thickness [mm]
- 18,0
Specific References
- EAN13
- 4006633029087
- MPN
- 2401200163102
ATE 24.0120-0163.1
(240120-01631)
- Outer Diameter [mm]: 235,0
- Inner Diameter [mm]: 125,2
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 420163
