ATE Originale zweiteilige Bremsscheibe (24012001631) für Suzuki
94,38 €
(inkl. MwSt.)
78,00 € Steuerexzl.
Teilenummer:
ATE 24.0120-0163.1
(240120-01631)
- Außendurchmesser [mm]: 235,0
- Innendurchmesser [mm]: 125,2
- Bremsscheibendicke [mm]: 20,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 420163
Logistische Informationen:
- Ean-Code: 4006633029087
- Gewicht: 8.51kg
Specification of ATE 24.0120-0163.1 / 240120-01631 / 24012001631:
| OE Number | Reference info |
| SUZUKI 55311-61G00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-61G01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI BALENO (EG) Fitting Position Front Axle | 1996-09 - 2002-05 | 52 | 71 | 1298 | Saloon |
| SUZUKI BALENO (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 63 | 85 | 1298 | Saloon |
| SUZUKI BALENO (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Saloon |
| SUZUKI BALENO (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Saloon |
| SUZUKI BALENO Hatchback (EG) Fitting Position Front Axle | 1996-09 - 2002-05 | 52 | 71 | 1298 | Hatchback |
| SUZUKI BALENO Hatchback (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 63 | 85 | 1298 | Hatchback |
| SUZUKI BALENO Hatchback (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Hatchback |
| SUZUKI BALENO Hatchback (EG) Fitting Position Front Axle | 1995-07 - 2002-05 | 72 | 98 | 1590 | Hatchback |
| SUZUKI BALENO Estate (EG) Fitting Position Front Axle | 1997-03 - 2002-05 | 63 | 86 | 1298 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Front Axle | 1996-08 - 2002-05 | 72 | 98 | 1590 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Front Axle | 1996-08 - 2002-05 | 72 | 98 | 1590 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Front Axle | 1996-08 - 2002-05 | 73 | 99 | 1590 | Estate |
| SUZUKI BALENO Estate (EG) Fitting Position Front Axle | 1996-08 - 2002-05 | 73 | 99 | 1590 | Estate |

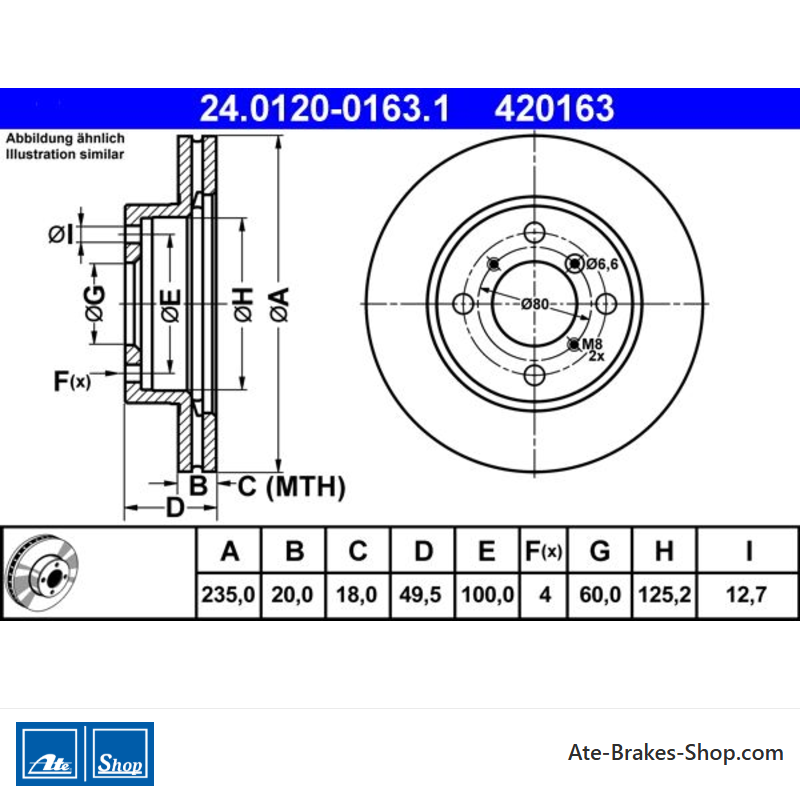

24.0120-0163.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Suzuki
- Handelsnummer
- 420163
- Herkunftsland
- QU
- Höhe
- 49,5
- Außendurchmesser [mm]
- 235,0
- Bremsscheibendicke [mm]
- 20,0
- Bremsscheibentyp
- Entlüftet
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 60,0
- Innendurchmesser [mm]
- 125,2
- Bohrdurchmesser [mm]
- 12,7
- Mindestdicke [mm]
- 18,0
Spezifische Referenzen
- ean13
- 4006633029087
- Hersteller-Teilenummer (MPN)
- 2401200163102
ATE 24.0120-0163.1
(240120-01631)
- Außendurchmesser [mm]: 235,0
- Innendurchmesser [mm]: 125,2
- Bremsscheibendicke [mm]: 20,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 420163
