ATE Original 2 Pieces Brake Disk (24012001681) for Toyota, Volkswagen (VW)
€108.90
(tax incl.)
€90.00 tax excl.
Part-number:
ATE 24.0120-0168.1
(240120-01681)
- Outer Diameter [mm]: 289,0
- Inner Diameter [mm]: 156,0
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 6
- 2 Pieces of Brake Disc
- Trade Number: 420168
Logistical information:
- Ean Code: 4006633029186
- Weight: 13.02kg
Specification of ATE 24.0120-0168.1 / 240120-01681 / 24012001681:
| OE Number | Reference info |
| TOYOTA 43512-35190 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-35110 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG J43 512 351 90 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG J4351235190 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) Fitting Position Front Axle | 1989-01 - 1997-07 | 84 | 114 | 2367 | Pickup |
| TOYOTA HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) Construction Year to 199707 Fitting Position Front Axle | 1988-09 - 1997-08 | 61 | 83 | 2446 | Pickup |
| TOYOTA HILUX VI Pickup (_N1_) Construction Year to 200107 Fitting Position Front Axle | 1997-08 - 2005-10 | 103 | 140 | 2438 | Pickup |
| TOYOTA HILUX VI Pickup (_N1_) Fitting Position Front Axle | 1998-08 - 2002-01 | 66 | 90 | 2446 | Pickup |
| TOYOTA HILUX VI Pickup (_N1_) Fitting Position Front Axle | 2001-11 - 2005-07 | 75 | 102 | 2494 | Pickup |
| VW TARO Axle Independent wheel suspension Fitting Position Front Axle | 1994-07 - 1997-03 | 58 | 79 | 2446 | Pickup |
| VW TARO Construction Year from 199407 Axle Independent wheel suspension Fitting Position Front Axle | 1989-04 - 1997-03 | 61 | 83 | 2446 | Pickup |
24.0120-0168.1

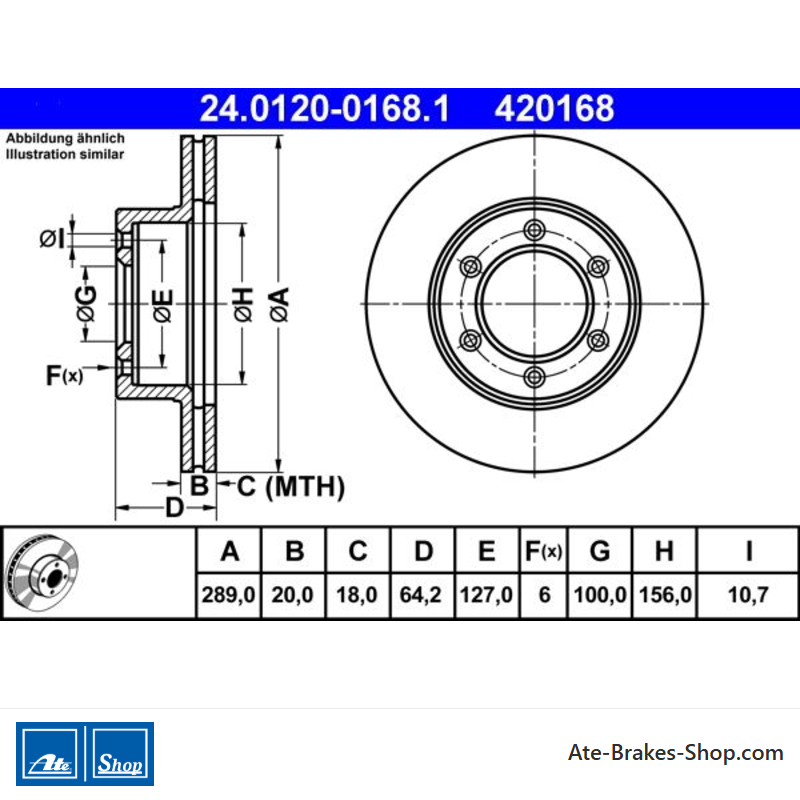

Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
Volkswagen (VW) - Trade Number
- 420168
- Country Of Origin
- Italy
- Height
- 64,2
- Outer Diameter [mm]
- 289,0
- Brake Disc Thickness [mm]
- 20,0
- Brake Disc Type
- Vented
- Number of Bolt Holes
- 6
- Bolt Hole Diameter [mm]
- 127,0
- Centering Diameter [mm]
- 100,0
- Inner Diameter [mm]
- 156,0
- Bore Diameter [mm]
- 10,7
- Minimum Thickness [mm]
- 18,0
Specific References
- EAN13
- 4006633029186
- MPN
- 2401200168102
ATE 24.0120-0168.1
(240120-01681)
- Outer Diameter [mm]: 289,0
- Inner Diameter [mm]: 156,0
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 6
- 2 Pieces of Brake Disc
- Trade Number: 420168
