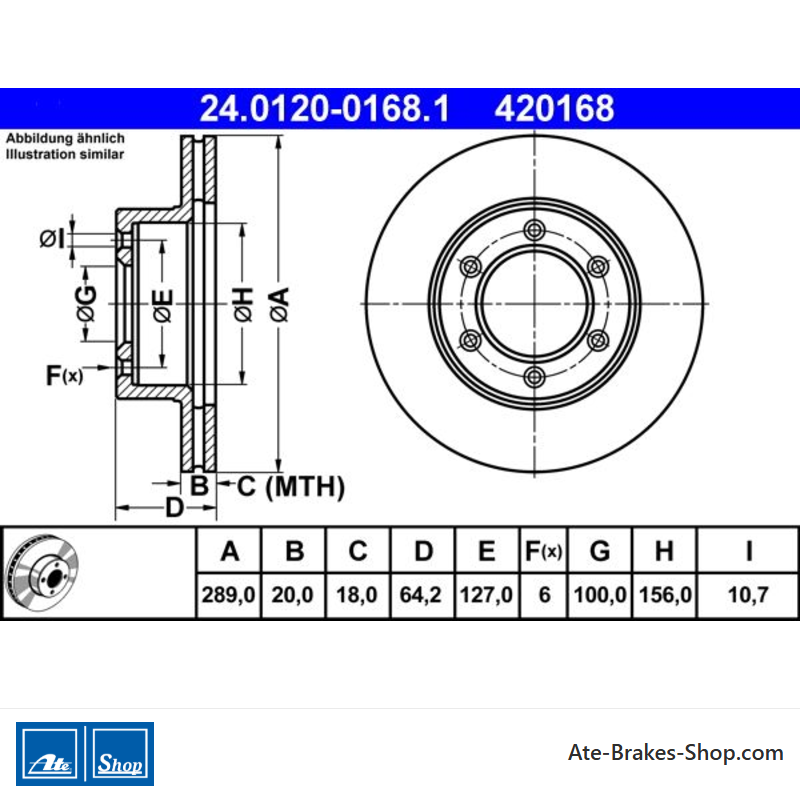

ATE Originele 2-delige remschijf (24012001681) voor Toyota, Volkswagen (VW)
€ 108,90
(incl. btw)
€ 90,00 belastingexcl.
Onderdeelnummer:
ATE 24.0120-0168.1
(240120-01681)
- Buitendiameter [mm]: 289,0
- Binnendiameter [mm]: 156,0
- Remschijfdikte [mm]: 20,0
- Aantal bolt holes: 6
- 2 stukken remschijf
- Handelsnummer: 420168
Logistieke informatie:
- Ean Code: 4006633029186
- Gewicht: 13.02kg
Specification of ATE 24.0120-0168.1 / 240120-01681 / 24012001681:
| OE Number | Reference info |
| TOYOTA 43512-35190 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-35110 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG J43 512 351 90 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG J4351235190 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) Fitting Position Front Axle | 1989-01 - 1997-07 | 84 | 114 | 2367 | Pickup |
| TOYOTA HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) Construction Year to 199707 Fitting Position Front Axle | 1988-09 - 1997-08 | 61 | 83 | 2446 | Pickup |
| TOYOTA HILUX VI Pickup (_N1_) Construction Year to 200107 Fitting Position Front Axle | 1997-08 - 2005-10 | 103 | 140 | 2438 | Pickup |
| TOYOTA HILUX VI Pickup (_N1_) Fitting Position Front Axle | 1998-08 - 2002-01 | 66 | 90 | 2446 | Pickup |
| TOYOTA HILUX VI Pickup (_N1_) Fitting Position Front Axle | 2001-11 - 2005-07 | 75 | 102 | 2494 | Pickup |
| VW TARO Axle Independent wheel suspension Fitting Position Front Axle | 1994-07 - 1997-03 | 58 | 79 | 2446 | Pickup |
| VW TARO Construction Year from 199407 Axle Independent wheel suspension Fitting Position Front Axle | 1989-04 - 1997-03 | 61 | 83 | 2446 | Pickup |
24.0120-0168.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
Volkswagen (VW) - Handelsnummer
- 420168
- Land van Herkomst
- Italië
- Hoogte
- 64,2
- Buitendiameter [mm]
- 289,0
- Remschijfdikte [mm]
- 20,0
- Type remschijf
- Geventileerd
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 127,0
- Centreringsdiameter [mm]
- 100,0
- Binnendiameter [mm]
- 156,0
- Bordiameter [mm]
- 10,7
- Minimale dikte [mm]
- 18,0
Specifieke referenties
- ean13
- 4006633029186
- MPN
- 2401200168102
ATE 24.0120-0168.1
(240120-01681)
- Buitendiameter [mm]: 289,0
- Binnendiameter [mm]: 156,0
- Remschijfdikte [mm]: 20,0
- Aantal bolt holes: 6
- 2 stukken remschijf
- Handelsnummer: 420168
