ATE Original 2 Pieces Brake Disk (24012001751) for Toyota
€94.38
(tax incl.)
€78.00 tax excl.
Part-number:
ATE 24.0120-0175.1
(240120-01751)
- Outer Diameter [mm]: 255,0
- Inner Diameter [mm]: 129,0
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 420175
Logistical information:
- Ean Code: 4006633097406
- Weight: 9.98kg
Specification of ATE 24.0120-0175.1 / 240120-01751 / 24012001751:
| OE Number | Reference info |
| TOYOTA 43512-52040 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-17130 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-17120 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-17131 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-0D050 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-52090 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA MR2 III (ZZW3_) Construction Year from 200001 Fitting Position Front Axle | 1999-10 - 2007-06 | 103 | 140 | 1794 | Convertible |
| TOYOTA YARIS (_P1_) Construction Year from 200304 Construction Year to 200508 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2003-03 - 2005-09 | 48 | 65 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year from 199908 Construction Year to 200303 Fitting Position Front Axle Braking System for vehicles with disc brakes on the rear axle | 1999-04 - 2005-09 | 50 | 68 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200410 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1999-08 - 2005-11 | 63 | 86 | 1299 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200508 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2002-04 - 2005-09 | 64 | 87 | 1298 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200508 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2003-01 - 2005-11 | 77 | 105 | 1497 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200303 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2001-04 - 2005-09 | 78 | 106 | 1497 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year from 200304 Construction Year to 200410 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-03 - 2005-07 | 110 | 150 | 1497 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year from 200112 Construction Year to 200508 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2001-10 - 2005-09 | 55 | 75 | 1364 | Hatchback |
| TOYOTA YARIS VERSO (_P2_) Fitting Position Front Axle | 2002-11 - 2005-09 | 62 | 84 | 1299 | MPV |
| TOYOTA YARIS VERSO (_P2_) Construction Year from 199911 Fitting Position Front Axle | 1999-08 - 2002-10 | 63 | 86 | 1299 | MPV |
| TOYOTA YARIS VERSO (_P2_) Fitting Position Front Axle | 2000-03 - 2005-09 | 77 | 105 | 1497 | MPV |
| TOYOTA YARIS VERSO (_P2_) Construction Year to 200303 Fitting Position Front Axle | 2000-03 - 2005-09 | 78 | 106 | 1497 | MPV |
| TOYOTA YARIS VERSO (_P2_) Fitting Position Front Axle | 2000-09 - 2005-09 | 55 | 75 | 1364 | MPV |
| TOYOTA YARIS VERSO VAN (_P2_) Fitting Position Front Axle | 2003-04 - 2005-09 | 62 | 84 | 1299 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Fitting Position Front Axle | 2000-03 - 2005-09 | 63 | 86 | 1299 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Fitting Position Front Axle | 2000-03 - 2003-03 | 78 | 106 | 1497 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Fitting Position Front Axle | 2001-10 - 2005-09 | 55 | 75 | 1364 | Hatchback Van |
24.0120-0175.1

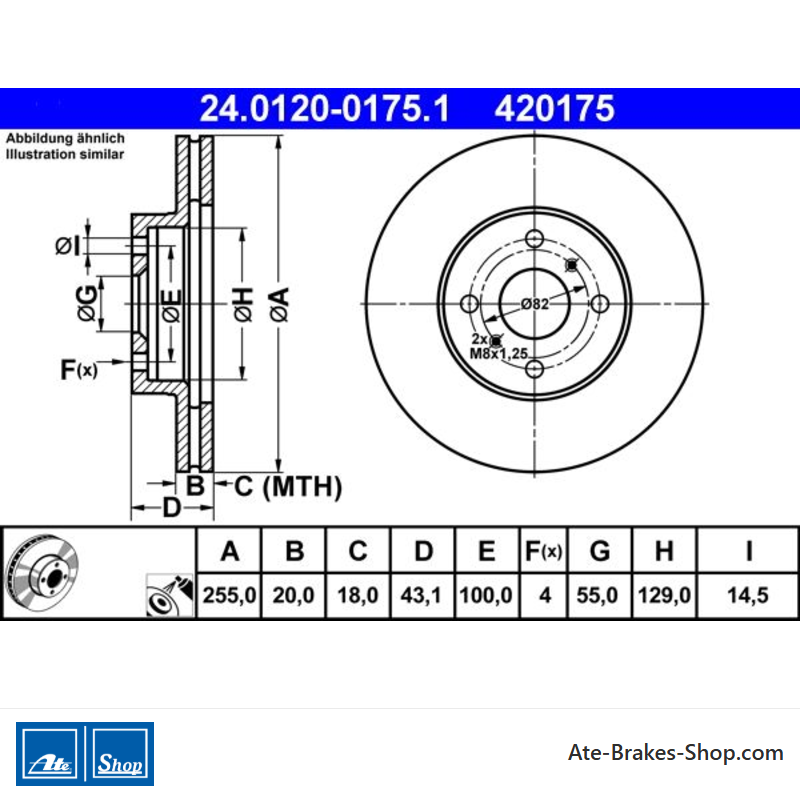

Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
- Trade Number
- 420175
- Country Of Origin
- China
- Height
- 43,1
- Outer Diameter [mm]
- 255,0
- Brake Disc Thickness [mm]
- 20,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 129,0
- Bore Diameter [mm]
- 14,5
- Minimum Thickness [mm]
- 18,0
Specific References
- EAN13
- 4006633097406
- MPN
- 2401200175102
ATE 24.0120-0175.1
(240120-01751)
- Outer Diameter [mm]: 255,0
- Inner Diameter [mm]: 129,0
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 420175
