ATE Originale zweiteilige Bremsscheibe (24012001751) für Toyota
94,38 €
(inkl. MwSt.)
78,00 € Steuerexzl.
Teilenummer:
ATE 24.0120-0175.1
(240120-01751)
- Außendurchmesser [mm]: 255,0
- Innendurchmesser [mm]: 129,0
- Bremsscheibendicke [mm]: 20,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 420175
Logistische Informationen:
- Ean-Code: 4006633097406
- Gewicht: 9.98kg
Specification of ATE 24.0120-0175.1 / 240120-01751 / 24012001751:
| OE Number | Reference info |
| TOYOTA 43512-52040 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-17130 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-17120 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-17131 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-0D050 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-52090 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA MR2 III (ZZW3_) Construction Year from 200001 Fitting Position Front Axle | 1999-10 - 2007-06 | 103 | 140 | 1794 | Convertible |
| TOYOTA YARIS (_P1_) Construction Year from 200304 Construction Year to 200508 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2003-03 - 2005-09 | 48 | 65 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year from 199908 Construction Year to 200303 Fitting Position Front Axle Braking System for vehicles with disc brakes on the rear axle | 1999-04 - 2005-09 | 50 | 68 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200410 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 1999-08 - 2005-11 | 63 | 86 | 1299 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200508 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2002-04 - 2005-09 | 64 | 87 | 1298 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200508 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2003-01 - 2005-11 | 77 | 105 | 1497 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200303 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2001-04 - 2005-09 | 78 | 106 | 1497 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year from 200304 Construction Year to 200410 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2000-03 - 2005-07 | 110 | 150 | 1497 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year from 200112 Construction Year to 200508 Braking System for vehicles with disc brakes on the rear axle Fitting Position Front Axle | 2001-10 - 2005-09 | 55 | 75 | 1364 | Hatchback |
| TOYOTA YARIS VERSO (_P2_) Fitting Position Front Axle | 2002-11 - 2005-09 | 62 | 84 | 1299 | MPV |
| TOYOTA YARIS VERSO (_P2_) Construction Year from 199911 Fitting Position Front Axle | 1999-08 - 2002-10 | 63 | 86 | 1299 | MPV |
| TOYOTA YARIS VERSO (_P2_) Fitting Position Front Axle | 2000-03 - 2005-09 | 77 | 105 | 1497 | MPV |
| TOYOTA YARIS VERSO (_P2_) Construction Year to 200303 Fitting Position Front Axle | 2000-03 - 2005-09 | 78 | 106 | 1497 | MPV |
| TOYOTA YARIS VERSO (_P2_) Fitting Position Front Axle | 2000-09 - 2005-09 | 55 | 75 | 1364 | MPV |
| TOYOTA YARIS VERSO VAN (_P2_) Fitting Position Front Axle | 2003-04 - 2005-09 | 62 | 84 | 1299 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Fitting Position Front Axle | 2000-03 - 2005-09 | 63 | 86 | 1299 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Fitting Position Front Axle | 2000-03 - 2003-03 | 78 | 106 | 1497 | Hatchback Van |
| TOYOTA YARIS VERSO VAN (_P2_) Fitting Position Front Axle | 2001-10 - 2005-09 | 55 | 75 | 1364 | Hatchback Van |

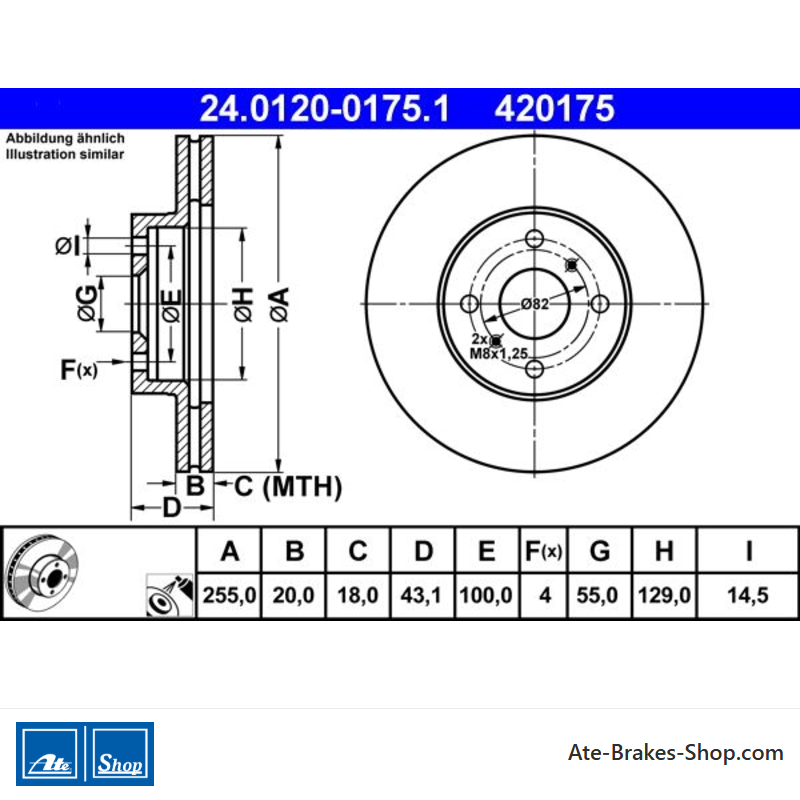

24.0120-0175.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Toyota
- Handelsnummer
- 420175
- Herkunftsland
- China
- Höhe
- 43,1
- Außendurchmesser [mm]
- 255,0
- Bremsscheibendicke [mm]
- 20,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 55,0
- Innendurchmesser [mm]
- 129,0
- Bohrdurchmesser [mm]
- 14,5
- Mindestdicke [mm]
- 18,0
Spezifische Referenzen
- ean13
- 4006633097406
- Hersteller-Teilenummer (MPN)
- 2401200175102
ATE 24.0120-0175.1
(240120-01751)
- Außendurchmesser [mm]: 255,0
- Innendurchmesser [mm]: 129,0
- Bremsscheibendicke [mm]: 20,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 420175
