2 pieces of ATE original Brake Disk (24012001861) for Lada
€83.49
(tax incl.)
€69.00 tax excl.
Part-number:
ATE 24.0120-0186.1
(240120-01861)
- Outer Diameter [mm]: 239,0
- Inner Diameter [mm]: 154,0
- Brake Disc Thickness [mm]: 19,5
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 420186
Logistical information:
- Ean Code: 4006633206013
- Weight: 7.70kg
Specification of ATE 24.0120-0186.1 / 240120-01861 / 24012001861:
| OE Number | Reference info |
| LADA 2110-3501070 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LADA 110 (2110) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2005-12 | 56 | 76 | 1499 | Saloon |
| LADA 110 (2110) Construction Year to 200708 Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2010-12 | 67 | 91 | 1499 | Saloon |
| LADA 110 (2110) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 1996-08 - 2000-07 | 110 | 150 | 1998 | Saloon |
| LADA 110 (2110) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 1997-06 - 2004-09 | 88 | 120 | 1308 | Saloon |
| LADA 111 (2111) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2009-02 | 56 | 76 | 1499 | Estate |
| LADA 111 (2111) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2005-12 | 67 | 91 | 1499 | Estate |
| LADA 111 (2111) Construction Year from 200501 Construction Year to 200812 Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2004-09 - 2009-02 | 60 | 82 | 1596 | Estate |
| LADA 111 (2111) Construction Year from 200603 Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2004-09 - 2007-12 | 66 | 90 | 1596 | Estate |
| LADA 112 (2112) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2005-12 | 56 | 76 | 1499 | Hatchback |
| LADA 112 (2112) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2005-12 | 67 | 91 | 1499 | Hatchback |
| LADA 112 (2112) Construction Year to 200812 Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2005-01 - 2011-12 | 60 | 82 | 1596 | Hatchback |
| LADA 112 (2112) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2006-03 - 2008-12 | 66 | 90 | 1596 | Hatchback |
24.0120-0186.1

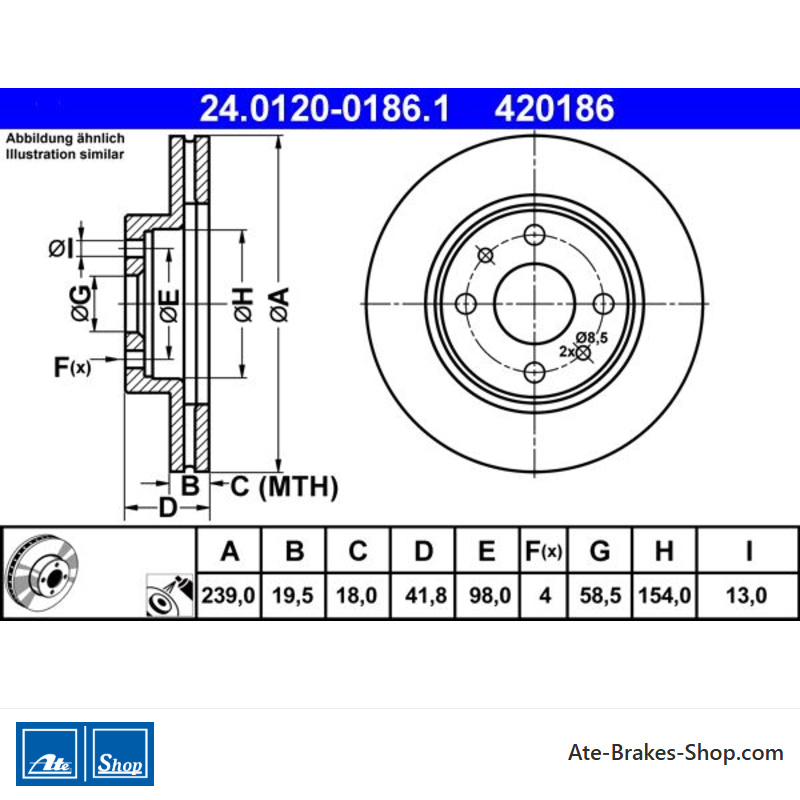

Data sheet
- Article Status
- Orderable
- Car Brand
- Lada
- Trade Number
- 420186
- Country Of Origin
- Germany
- Height
- 41,8
- Outer Diameter [mm]
- 239,0
- Brake Disc Thickness [mm]
- 19,5
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 98,0
- Centering Diameter [mm]
- 58,5
- Inner Diameter [mm]
- 154,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 18,0
Specific References
- EAN13
- 4006633206013
- MPN
- 2401200186102
ATE 24.0120-0186.1
(240120-01861)
- Outer Diameter [mm]: 239,0
- Inner Diameter [mm]: 154,0
- Brake Disc Thickness [mm]: 19,5
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 420186
