ATE Originele 2-delige remschijf (24012001861) voor Lada
€ 83,49
(incl. btw)
€ 69,00 belastingexcl.
Onderdeelnummer:
ATE 24.0120-0186.1
(240120-01861)
- Buitendiameter [mm]: 239,0
- Binnendiameter [mm]: 154,0
- Remschijfdikte [mm]: 19,5
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 420186
Logistieke informatie:
- Ean Code: 4006633206013
- Gewicht: 7.70kg
Specification of ATE 24.0120-0186.1 / 240120-01861 / 24012001861:
| OE Number | Reference info |
| LADA 2110-3501070 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LADA 110 (2110) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2005-12 | 56 | 76 | 1499 | Saloon |
| LADA 110 (2110) Construction Year to 200708 Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2010-12 | 67 | 91 | 1499 | Saloon |
| LADA 110 (2110) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 1996-08 - 2000-07 | 110 | 150 | 1998 | Saloon |
| LADA 110 (2110) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 1997-06 - 2004-09 | 88 | 120 | 1308 | Saloon |
| LADA 111 (2111) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2009-02 | 56 | 76 | 1499 | Estate |
| LADA 111 (2111) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2005-12 | 67 | 91 | 1499 | Estate |
| LADA 111 (2111) Construction Year from 200501 Construction Year to 200812 Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2004-09 - 2009-02 | 60 | 82 | 1596 | Estate |
| LADA 111 (2111) Construction Year from 200603 Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2004-09 - 2007-12 | 66 | 90 | 1596 | Estate |
| LADA 112 (2112) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2005-12 | 56 | 76 | 1499 | Hatchback |
| LADA 112 (2112) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2000-10 - 2005-12 | 67 | 91 | 1499 | Hatchback |
| LADA 112 (2112) Construction Year to 200812 Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2005-01 - 2011-12 | 60 | 82 | 1596 | Hatchback |
| LADA 112 (2112) Fitting Position Front Axle Rim Size [inch] 13.0 Inch | 2006-03 - 2008-12 | 66 | 90 | 1596 | Hatchback |

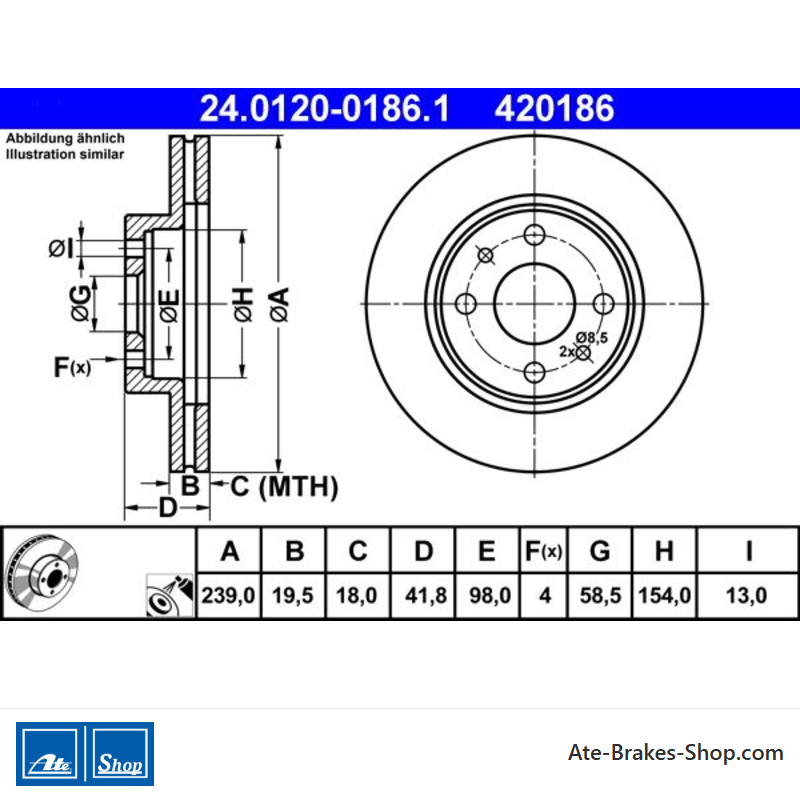

24.0120-0186.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Lada
- Handelsnummer
- 420186
- Land van Herkomst
- Duitsland
- Hoogte
- 41,8
- Buitendiameter [mm]
- 239,0
- Remschijfdikte [mm]
- 19,5
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 98,0
- Centreringsdiameter [mm]
- 58,5
- Binnendiameter [mm]
- 154,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 18,0
Specifieke referenties
- ean13
- 4006633206013
- MPN
- 2401200186102
