ATE Original 2 Pieces Brake Disk (24012002481) for Suzuki
€116.16
(tax incl.)
€96.00 tax excl.
Part-number:
ATE 24.0120-0248.1
(240120-02481)

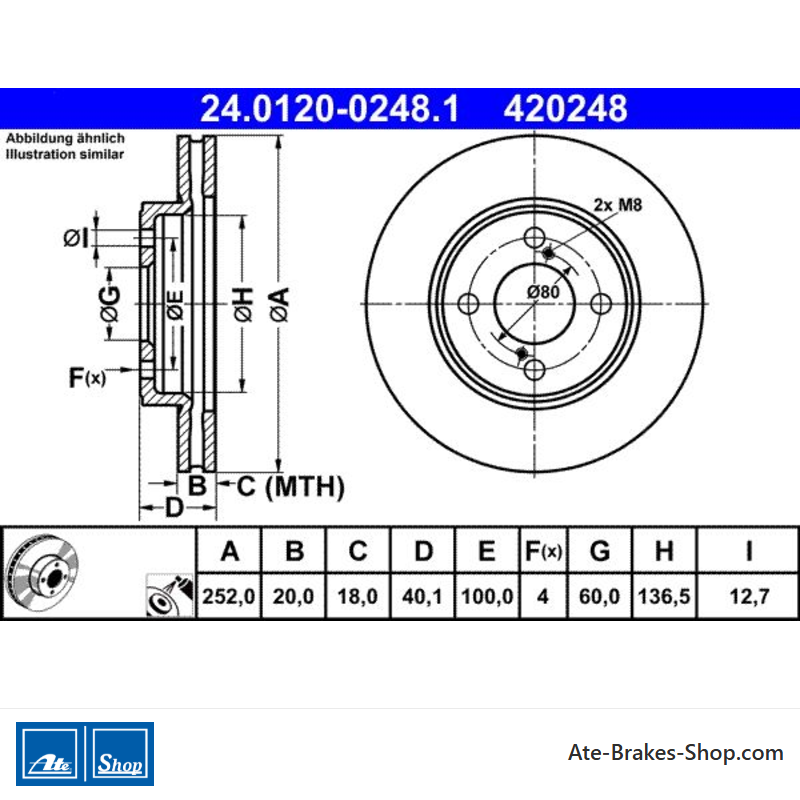

- Outer Diameter [mm]: 252,0
- Inner Diameter [mm]: 136,5
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 420248
Logistical information:
- Ean Code: 4006633461672
- Weight: 8.46kg
Specification of ATE 24.0120-0248.1 / 240120-02481 / 24012002481:
| OE Number | Reference info |
| SUZUKI 55311-M69P10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-52R50 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI BALENO (FW, EW) Fitting Position Front Axle | 2016-02 - | 82 | 111 | 998 | Hatchback |
| SUZUKI BALENO (FW, EW) Fitting Position Front Axle | 2016-02 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI BALENO (FW, EW) Fitting Position Front Axle | 2016-02 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 82 | 111 | 998 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 82 | 111 | 998 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2020-06 - | 61 | 83 | 1197 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2020-06 - | 61 | 83 | 1197 | Hatchback |
24.0120-0248.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 420248
- Country Of Origin
- QU
- Height
- 40,1
- Outer Diameter [mm]
- 252,0
- Brake Disc Thickness [mm]
- 20,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 60,0
- Inner Diameter [mm]
- 136,5
- Bore Diameter [mm]
- 12,7
- Minimum Thickness [mm]
- 18,0
Specific References
- EAN13
- 4006633461672
- MPN
- 2401200248102
ATE 24.0120-0248.1
(240120-02481)
- Outer Diameter [mm]: 252,0
- Inner Diameter [mm]: 136,5
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 420248
