ATE Originele 2-delige remschijf (24012002481) voor Suzuki
€ 116,16
(incl. btw)
€ 96,00 belastingexcl.
Onderdeelnummer:
ATE 24.0120-0248.1
(240120-02481)
- Buitendiameter [mm]: 252,0
- Binnendiameter [mm]: 136,5
- Remschijfdikte [mm]: 20,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 420248
Logistieke informatie:
- Ean Code: 4006633461672
- Gewicht: 8.46kg
Specification of ATE 24.0120-0248.1 / 240120-02481 / 24012002481:
| OE Number | Reference info |
| SUZUKI 55311-M69P10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-52R50 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI BALENO (FW, EW) Fitting Position Front Axle | 2016-02 - | 82 | 111 | 998 | Hatchback |
| SUZUKI BALENO (FW, EW) Fitting Position Front Axle | 2016-02 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI BALENO (FW, EW) Fitting Position Front Axle | 2016-02 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 82 | 111 | 998 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 82 | 111 | 998 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2020-06 - | 61 | 83 | 1197 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Front Axle | 2020-06 - | 61 | 83 | 1197 | Hatchback |

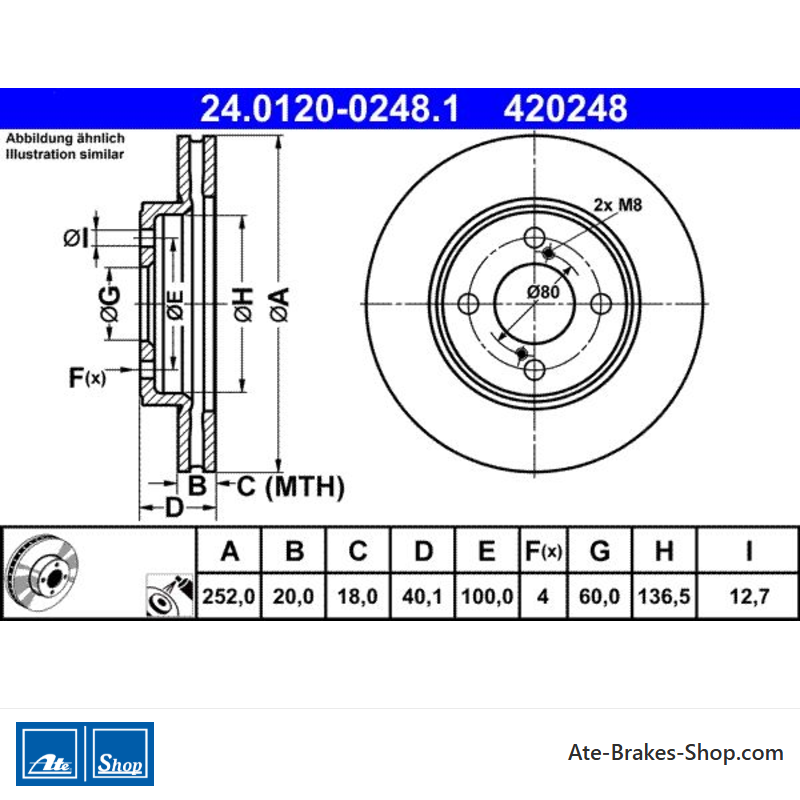

24.0120-0248.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Suzuki
- Handelsnummer
- 420248
- Land van Herkomst
- QU
- Hoogte
- 40,1
- Buitendiameter [mm]
- 252,0
- Remschijfdikte [mm]
- 20,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 60,0
- Binnendiameter [mm]
- 136,5
- Bordiameter [mm]
- 12,7
- Minimale dikte [mm]
- 18,0
Specifieke referenties
- ean13
- 4006633461672
- MPN
- 2401200248102
ATE 24.0120-0248.1
(240120-02481)
- Buitendiameter [mm]: 252,0
- Binnendiameter [mm]: 136,5
- Remschijfdikte [mm]: 20,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 420248
