2 pieces of ATE original Brake Disk (24012202071) for Mazda
€72.60
(tax incl.)
€60.00 tax excl.
Part-number:
ATE 24.0122-0207.1
(240122-02071)
- Outer Diameter [mm]: 235,0
- Inner Diameter [mm]: 125,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 422207
Logistical information:
- Ean Code: 4006633092555
- Weight: 9.04kg

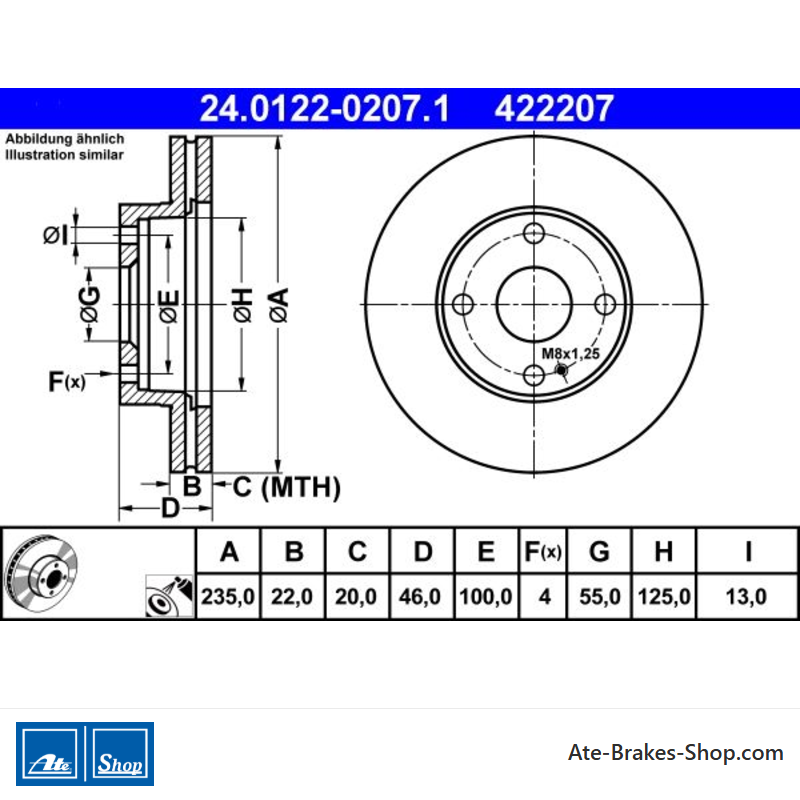

Specification of ATE 24.0122-0207.1 / 240122-02071 / 24012202071:
| OE Number | Reference info |
| MAZDA BJ0Y-33-25X | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B26Y-33-25XA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XD | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XE | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 323 F VI Hatchback (BJ) Construction Year to 200310 Fitting Position Front Axle | 2001-01 - 2004-05 | 53 | 72 | 1324 | Hatchback |
| MAZDA 323 F VI Hatchback (BJ) Construction Year to 200012 Fitting Position Front Axle | 1998-09 - 2001-01 | 54 | 73 | 1324 | Hatchback |
| MAZDA 323 F VI Hatchback (BJ) Construction Year to 200012 Fitting Position Front Axle | 1998-09 - 2001-01 | 65 | 88 | 1498 | Hatchback |
| MAZDA 323 S VI Saloon (BJ) Construction Year to 200310 Fitting Position Front Axle | 2001-01 - 2004-05 | 53 | 72 | 1324 | Saloon |
| MAZDA 323 S VI Saloon (BJ) Construction Year to 200012 Fitting Position Front Axle | 1998-09 - 2001-01 | 54 | 73 | 1324 | Saloon |
| MAZDA 323 S VI Saloon (BJ) Construction Year to 200012 Fitting Position Front Axle | 1998-09 - 2001-01 | 65 | 88 | 1498 | Saloon |
24.0122-0207.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Mazda
- Trade Number
- 422207
- Country Of Origin
- China
- Height
- 46,0
- Outer Diameter [mm]
- 235,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 125,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 20,0
Specific References
- EAN13
- 4006633092555
- MPN
- 2401220207102
ATE 24.0122-0207.1
(240122-02071)
- Outer Diameter [mm]: 235,0
- Inner Diameter [mm]: 125,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 422207
