ATE Originale zweiteilige Bremsscheibe (24012202071) für Mazda
72,60 €
(inkl. MwSt.)
60,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0207.1
(240122-02071)
- Außendurchmesser [mm]: 235,0
- Innendurchmesser [mm]: 125,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 422207
Logistische Informationen:
- Ean-Code: 4006633092555
- Gewicht: 9.04kg
Specification of ATE 24.0122-0207.1 / 240122-02071 / 24012202071:
| OE Number | Reference info |
| MAZDA BJ0Y-33-25X | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B26Y-33-25XA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XD | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XE | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B461-33-25XF | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 323 F VI Hatchback (BJ) Construction Year to 200310 Fitting Position Front Axle | 2001-01 - 2004-05 | 53 | 72 | 1324 | Hatchback |
| MAZDA 323 F VI Hatchback (BJ) Construction Year to 200012 Fitting Position Front Axle | 1998-09 - 2001-01 | 54 | 73 | 1324 | Hatchback |
| MAZDA 323 F VI Hatchback (BJ) Construction Year to 200012 Fitting Position Front Axle | 1998-09 - 2001-01 | 65 | 88 | 1498 | Hatchback |
| MAZDA 323 S VI Saloon (BJ) Construction Year to 200310 Fitting Position Front Axle | 2001-01 - 2004-05 | 53 | 72 | 1324 | Saloon |
| MAZDA 323 S VI Saloon (BJ) Construction Year to 200012 Fitting Position Front Axle | 1998-09 - 2001-01 | 54 | 73 | 1324 | Saloon |
| MAZDA 323 S VI Saloon (BJ) Construction Year to 200012 Fitting Position Front Axle | 1998-09 - 2001-01 | 65 | 88 | 1498 | Saloon |

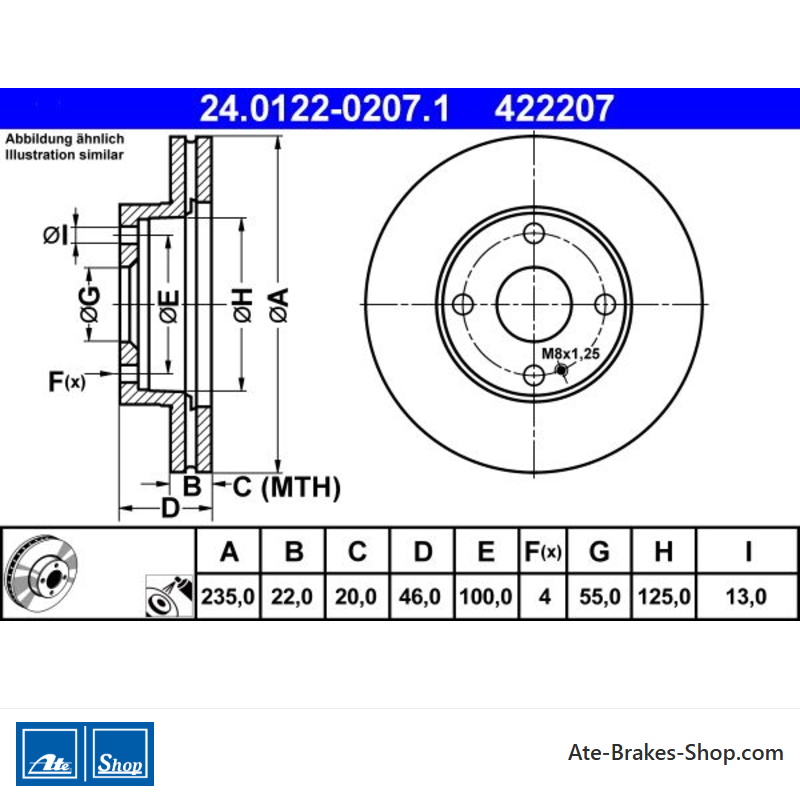

24.0122-0207.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Mazda
- Handelsnummer
- 422207
- Herkunftsland
- China
- Höhe
- 46,0
- Außendurchmesser [mm]
- 235,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 55,0
- Innendurchmesser [mm]
- 125,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 20,0
Spezifische Referenzen
- ean13
- 4006633092555
- Hersteller-Teilenummer (MPN)
- 2401220207102
ATE 24.0122-0207.1
(240122-02071)
- Außendurchmesser [mm]: 235,0
- Innendurchmesser [mm]: 125,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 422207
