ATE Original 2 Pieces Brake Disk (24012202201) for Audi
€141.57
(tax incl.)
€117.00 tax excl.
Part-number:
ATE 24.0122-0220.1
(240122-02201)
- Outer Diameter [mm]: 300,0
- Inner Diameter [mm]: 194,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 422220
Logistical information:
- Ean Code: 4006633221481
- Weight: 13.13kg
Specification of ATE 24.0122-0220.1 / 240122-02201 / 24012202201:
| OE Number | Reference info |
| VAG 8E0 615 601 K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 8E0615601K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 8E0 615 601 R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 8E0615601R | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI A4 B6 (8E2) Fitting Position Rear Axle | 2003-03 - 2004-12 | 253 | 344 | 4163 | Saloon |
| AUDI A4 B6 Avant (8E5) Fitting Position Rear Axle | 2003-03 - 2004-12 | 253 | 344 | 4163 | Estate |
| AUDI A4 B6 Convertible (8H7) Fitting Position Rear Axle | 2004-03 - 2005-12 | 253 | 344 | 4163 | Convertible |
| AUDI A4 B7 Convertible (8HE) Fitting Position Rear Axle | 2005-11 - 2009-03 | 253 | 344 | 4163 | Convertible |
| AUDI A4 B7 (8EC) Fitting Position Rear Axle | 2004-11 - 2008-06 | 253 | 344 | 4163 | Saloon |
| AUDI A4 B7 Avant (8ED) Fitting Position Rear Axle | 2004-11 - 2008-06 | 253 | 344 | 4163 | Estate |

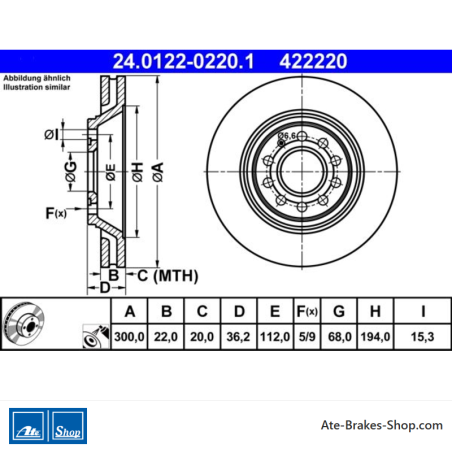

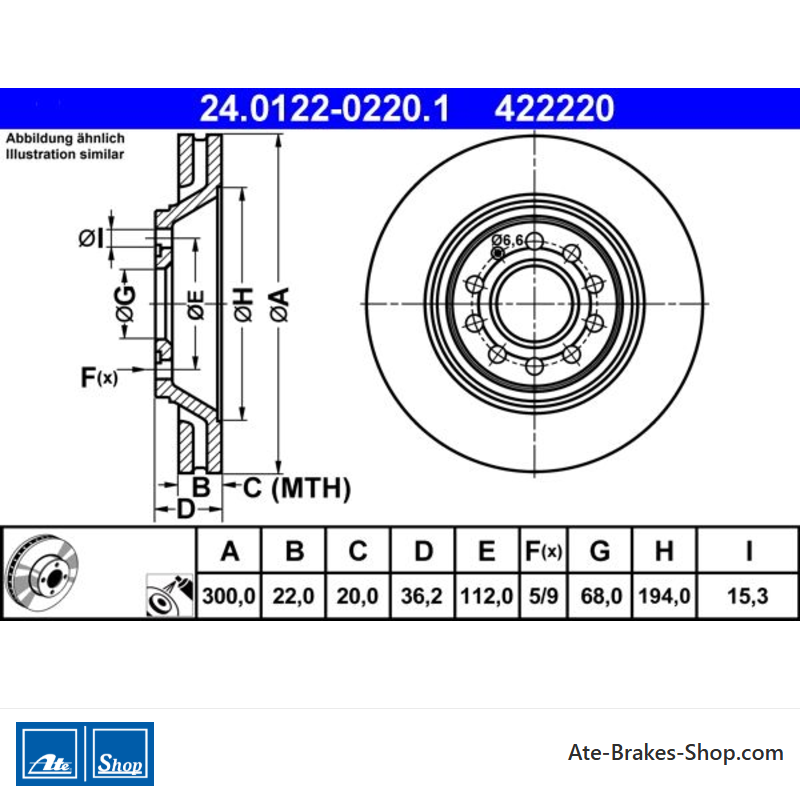

24.0122-0220.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Audi
- Trade Number
- 422220
- Country Of Origin
- Germany
- Height
- 36,2
- Outer Diameter [mm]
- 300,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 112,0
- Centering Diameter [mm]
- 68,0
- Inner Diameter [mm]
- 194,0
- Bore Diameter [mm]
- 15,3
- Minimum Thickness [mm]
- 20,0
Specific References
- EAN13
- 4006633221481
- MPN
- 2401220220102
ATE 24.0122-0220.1
(240122-02201)
- Outer Diameter [mm]: 300,0
- Inner Diameter [mm]: 194,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 422220
