ATE Original 2 Pieces Brake Disk (24012202371) for Hyundai, Mitsubishi
€116.16
(tax incl.)
€96.00 tax excl.
Part-number:
ATE 24.0122-0237.1
(240122-02371)
- Outer Diameter [mm]: 277,0
- Inner Diameter [mm]: 170,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 6
- 2 Pieces of Brake Disc
- Trade Number: 422237
Logistical information:
- Ean Code: 4006633246033
- Weight: 12.32kg
Specification of ATE 24.0122-0237.1 / 240122-02371 / 24012202371:
| OE Number | Reference info |
| MITSUBISHI HQ232405 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI HQ232405 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI GALLOPER II (JK-01) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-08 - 2003-12 | 65 | 88 | 2476 | Closed Off-Road Vehicle |
| HYUNDAI GALLOPER II (JK-01) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-08 - 2003-12 | 73 | 99 | 2476 | Closed Off-Road Vehicle |
| HYUNDAI GALLOPER II (JK-01) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-08 - 2003-12 | 104 | 141 | 2972 | Closed Off-Road Vehicle |
| MITSUBISHI GALLOPER (JK-01) Construction Year from 199901 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-09 - 2003-12 | 104 | 141 | 2972 | Closed Off-Road Vehicle |
| MITSUBISHI GALLOPER (JK-01) Construction Year from 199901 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-09 - 2003-12 | 65 | 88 | 2476 | Closed Off-Road Vehicle |
| MITSUBISHI GALLOPER (JK-01) Construction Year from 199901 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-09 - 2003-12 | 73 | 99 | 2476 | Closed Off-Road Vehicle |

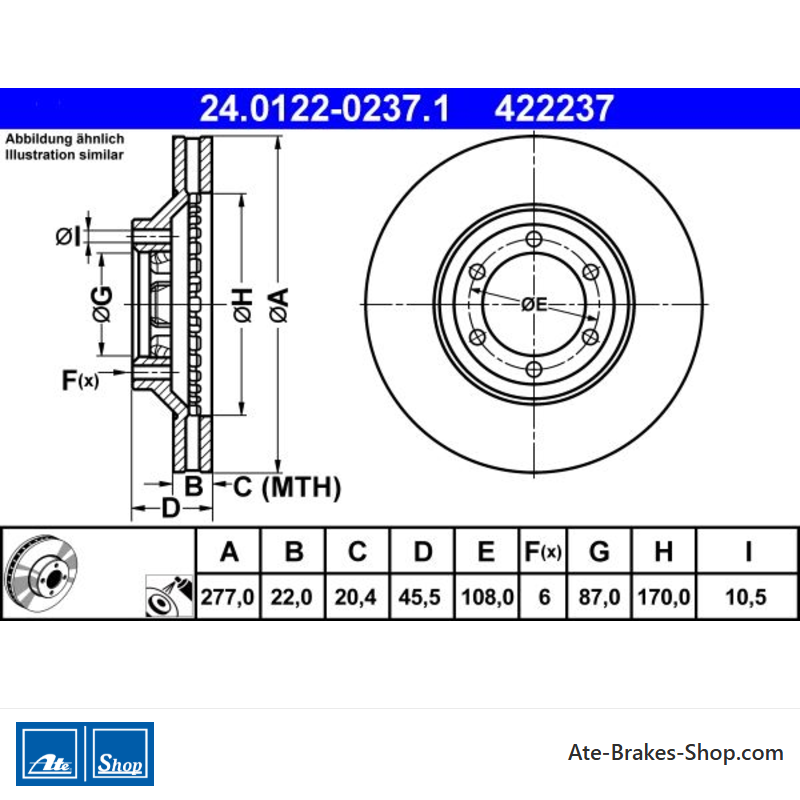

24.0122-0237.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Hyundai
Mitsubishi - Trade Number
- 422237
- Country Of Origin
- Italy
- Height
- 45,5
- Outer Diameter [mm]
- 277,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 6
- Bolt Hole Diameter [mm]
- 108,0
- Centering Diameter [mm]
- 87,0
- Inner Diameter [mm]
- 170,0
- Bore Diameter [mm]
- 10,5
- Minimum Thickness [mm]
- 20,4
Specific References
- EAN13
- 4006633246033
- MPN
- 2401220237102
ATE 24.0122-0237.1
(240122-02371)
- Outer Diameter [mm]: 277,0
- Inner Diameter [mm]: 170,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 6
- 2 Pieces of Brake Disc
- Trade Number: 422237
