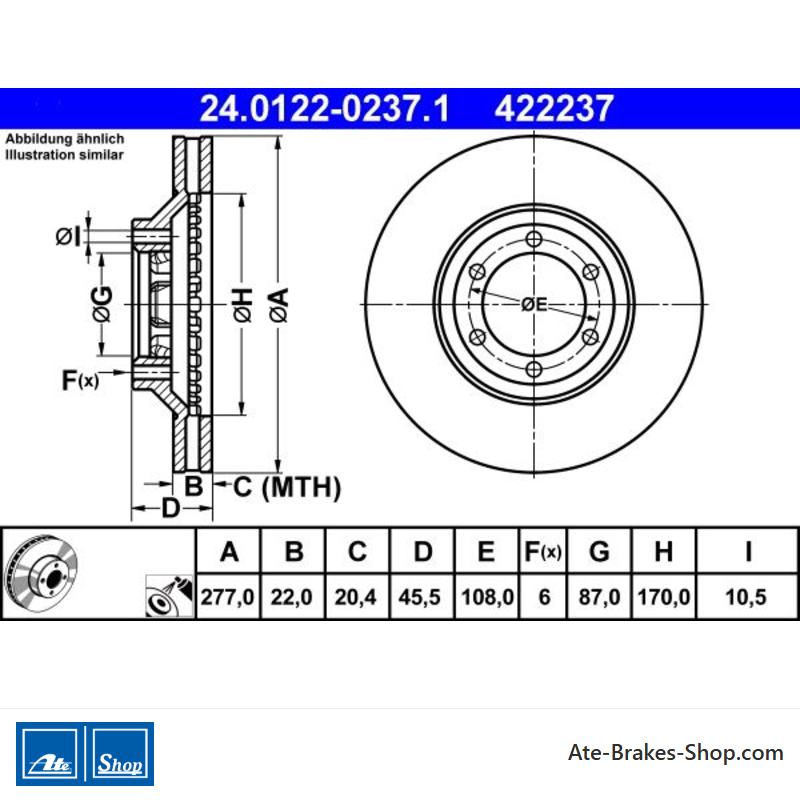

ATE Originele 2-delige remschijf (24012202371) voor Hyundai, Mitsubishi
€ 116,16
(incl. btw)
€ 96,00 belastingexcl.
Onderdeelnummer:
ATE 24.0122-0237.1
(240122-02371)
- Buitendiameter [mm]: 277,0
- Binnendiameter [mm]: 170,0
- Remschijfdikte [mm]: 22,0
- Aantal bolt holes: 6
- 2 stukken remschijf
- Handelsnummer: 422237
Logistieke informatie:
- Ean Code: 4006633246033
- Gewicht: 12.32kg
Specification of ATE 24.0122-0237.1 / 240122-02371 / 24012202371:
| OE Number | Reference info |
| MITSUBISHI HQ232405 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI HQ232405 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI GALLOPER II (JK-01) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-08 - 2003-12 | 65 | 88 | 2476 | Closed Off-Road Vehicle |
| HYUNDAI GALLOPER II (JK-01) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-08 - 2003-12 | 73 | 99 | 2476 | Closed Off-Road Vehicle |
| HYUNDAI GALLOPER II (JK-01) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-08 - 2003-12 | 104 | 141 | 2972 | Closed Off-Road Vehicle |
| MITSUBISHI GALLOPER (JK-01) Construction Year from 199901 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-09 - 2003-12 | 104 | 141 | 2972 | Closed Off-Road Vehicle |
| MITSUBISHI GALLOPER (JK-01) Construction Year from 199901 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-09 - 2003-12 | 65 | 88 | 2476 | Closed Off-Road Vehicle |
| MITSUBISHI GALLOPER (JK-01) Construction Year from 199901 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1998-09 - 2003-12 | 73 | 99 | 2476 | Closed Off-Road Vehicle |
24.0122-0237.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
Mitsubishi - Handelsnummer
- 422237
- Land van Herkomst
- Italië
- Hoogte
- 45,5
- Buitendiameter [mm]
- 277,0
- Remschijfdikte [mm]
- 22,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 87,0
- Binnendiameter [mm]
- 170,0
- Bordiameter [mm]
- 10,5
- Minimale dikte [mm]
- 20,4
Specifieke referenties
- ean13
- 4006633246033
- MPN
- 2401220237102
ATE 24.0122-0237.1
(240122-02371)
- Buitendiameter [mm]: 277,0
- Binnendiameter [mm]: 170,0
- Remschijfdikte [mm]: 22,0
- Aantal bolt holes: 6
- 2 stukken remschijf
- Handelsnummer: 422237
