2 pieces of ATE original Brake Disk (24012202641) for Nissan
€181.50
(tax incl.)
€150.00 tax excl.
Part-number:
ATE 24.0122-0264.1
(240122-02641)
- Outer Diameter [mm]: 290,0
- Inner Diameter [mm]: 172,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 8
- 2 pieces of Brake Disc
- Trade Number: 422264
Logistical information:
- Ean Code: 4006633346160
- Weight: 16.02kg
Specification of ATE 24.0122-0264.1 / 240122-02641 / 24012202641:
| OE Number | Reference info |
| NISSAN 43207-9X100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 43206-MA50A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 Construction Year to 201109 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2006-09 - 2012-12 | 96 | 131 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 201110 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2006-09 - 2013-12 | 100 | 136 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2006-09 - 2013-12 | 101 | 137 | 2953 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 4500 kg Transmission Type 5-Speed Manual Transmission Fitting Position Rear Axle | 2006-09 - 2013-12 | 101 | 137 | 2953 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2006-09 - 2013-12 | 110 | 150 | 2953 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 4500 kg Transmission Type 5-Speed Manual Transmission Fitting Position Rear Axle | 2006-09 - 2013-12 | 110 | 150 | 2953 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Construction Year from 201402 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2014-01 - | 100 | 136 | 2488 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Construction Year from 201402 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2014-01 - | 107 | 146 | 2488 | Platform/Chassis |

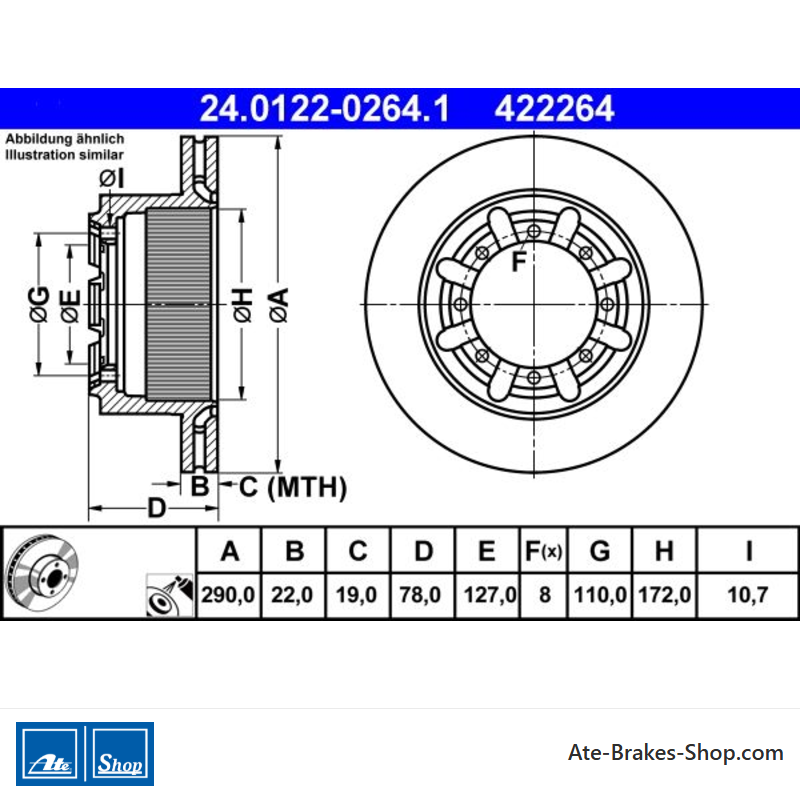

24.0122-0264.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Nissan
- Trade Number
- 422264
- Country Of Origin
- Italy
- Height
- 78,0
- Outer Diameter [mm]
- 290,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 8
- Bolt Hole Diameter [mm]
- 127,0
- Centering Diameter [mm]
- 110,0
- Inner Diameter [mm]
- 172,0
- Bore Diameter [mm]
- 10,7
- Minimum Thickness [mm]
- 19,0
Specific References
- EAN13
- 4006633346160
- MPN
- 2401220264102
ATE 24.0122-0264.1
(240122-02641)
- Outer Diameter [mm]: 290,0
- Inner Diameter [mm]: 172,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 8
- 2 pieces of Brake Disc
- Trade Number: 422264
