ATE Originale zweiteilige Bremsscheibe (24012202641) für Nissan
181,50 €
(inkl. MwSt.)
150,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0264.1
(240122-02641)
- Außendurchmesser [mm]: 290,0
- Innendurchmesser [mm]: 172,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 8
- 2 Teile Bremsscheiben
- Handelsnummer: 422264
Logistische Informationen:
- Ean-Code: 4006633346160
- Gewicht: 16.02kg
Specification of ATE 24.0122-0264.1 / 240122-02641 / 24012202641:
| OE Number | Reference info |
| NISSAN 43207-9X100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 43206-MA50A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 Construction Year to 201109 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2006-09 - 2012-12 | 96 | 131 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 201110 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2006-09 - 2013-12 | 100 | 136 | 2488 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2006-09 - 2013-12 | 101 | 137 | 2953 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 4500 kg Transmission Type 5-Speed Manual Transmission Fitting Position Rear Axle | 2006-09 - 2013-12 | 101 | 137 | 2953 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2006-09 - 2013-12 | 110 | 150 | 2953 | Platform/Chassis |
| NISSAN CABSTAR (F24M, F24W) Construction Year from 200610 gross vehicle weight rating [kg] 4500 kg Transmission Type 5-Speed Manual Transmission Fitting Position Rear Axle | 2006-09 - 2013-12 | 110 | 150 | 2953 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Construction Year from 201402 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2014-01 - | 100 | 136 | 2488 | Platform/Chassis |
| NISSAN NT400 CABSTAR (F24M) Construction Year from 201402 gross vehicle weight rating [kg] 4500 kg Fitting Position Rear Axle | 2014-01 - | 107 | 146 | 2488 | Platform/Chassis |

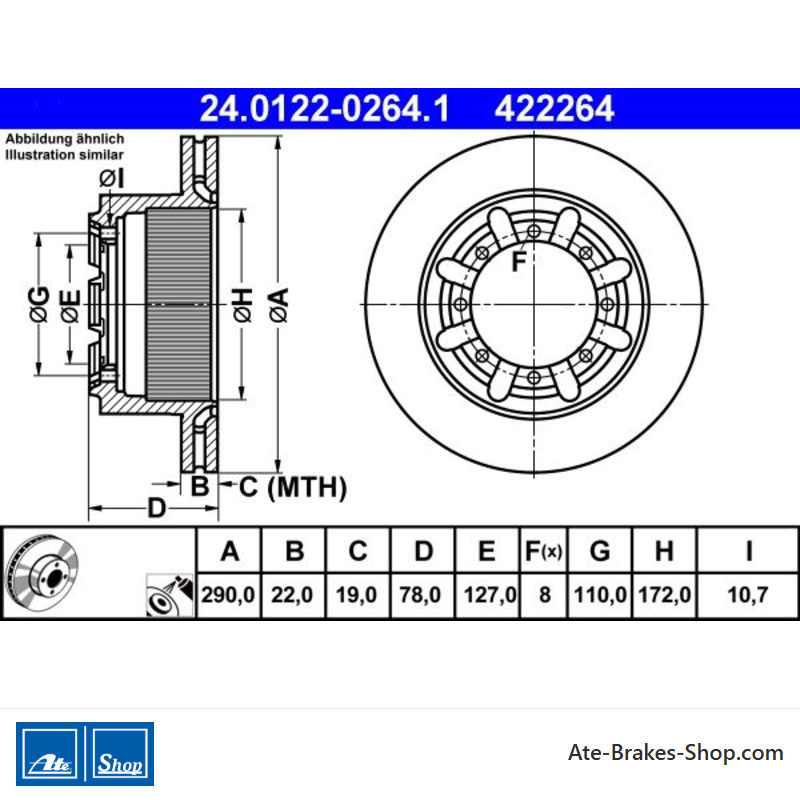

24.0122-0264.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Nissan
- Handelsnummer
- 422264
- Herkunftsland
- Italien
- Höhe
- 78,0
- Außendurchmesser [mm]
- 290,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 8
- Bolzenlochdurchmesser [mm]
- 127,0
- Zentrierungsdurchmesser [mm]
- 110,0
- Innendurchmesser [mm]
- 172,0
- Bohrdurchmesser [mm]
- 10,7
- Mindestdicke [mm]
- 19,0
Spezifische Referenzen
- ean13
- 4006633346160
- Hersteller-Teilenummer (MPN)
- 2401220264102
ATE 24.0122-0264.1
(240122-02641)
- Außendurchmesser [mm]: 290,0
- Innendurchmesser [mm]: 172,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 8
- 2 Teile Bremsscheiben
- Handelsnummer: 422264
