2 pieces of ATE original Brake Disk (24012202821) for Suzuki
€105.27
(tax incl.)
€87.00 tax excl.
Part-number:
ATE 24.0122-0282.1
(240122-02821)
- Outer Diameter [mm]: 272,0
- Inner Diameter [mm]: 150,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 422282
Logistical information:
- Ean Code: 4006633407106
- Weight: 10.36kg
Specification of ATE 24.0122-0282.1 / 240122-02821 / 24012202821:
| OE Number | Reference info |
| SUZUKI 55311-68L50 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle Vehicle Equipment for vehicles with cruise control | 2010-10 - 2017-04 | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle Vehicle Equipment for vehicles with cruise control | 2010-10 - 2017-04 | 69 | 94 | 1242 | Hatchback |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle Vehicle Equipment for vehicles with cruise control | 2010-10 - 2017-04 | 55 | 75 | 1248 | Hatchback |

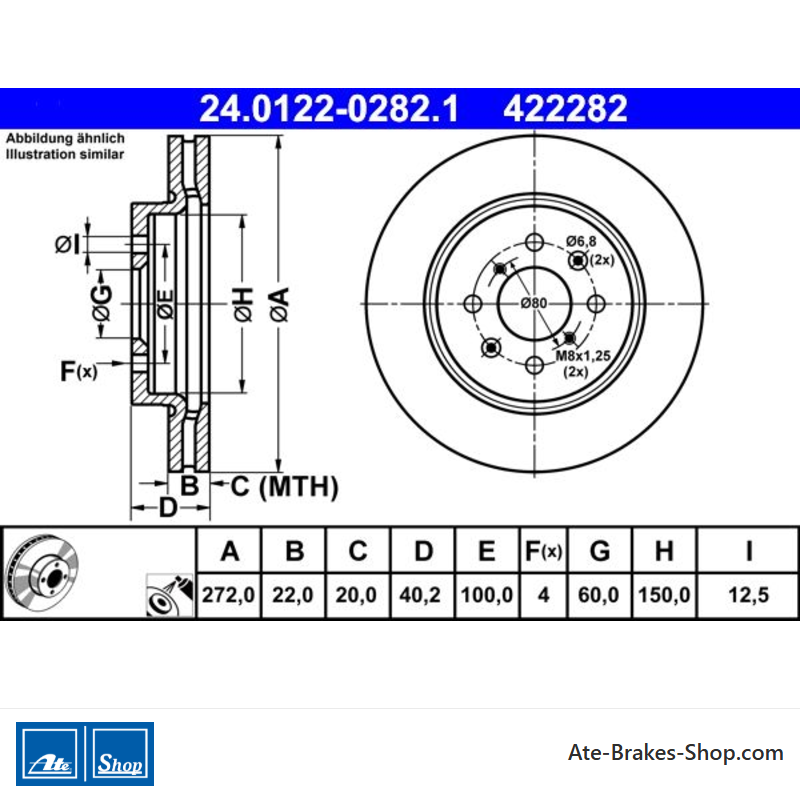

24.0122-0282.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 422282
- Country Of Origin
- Germany
- Height
- 40,2
- Outer Diameter [mm]
- 272,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 60,0
- Inner Diameter [mm]
- 150,0
- Bore Diameter [mm]
- 12,5
- Minimum Thickness [mm]
- 20,0
Specific References
- EAN13
- 4006633407106
- MPN
- 2401220282102
ATE 24.0122-0282.1
(240122-02821)
- Outer Diameter [mm]: 272,0
- Inner Diameter [mm]: 150,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 422282
