ATE Originele 2-delige remschijf (24012202821) voor Suzuki
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0122-0282.1
(240122-02821)
- Buitendiameter [mm]: 272,0
- Binnendiameter [mm]: 150,0
- Remschijfdikte [mm]: 22,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 422282
Logistieke informatie:
- Ean Code: 4006633407106
- Gewicht: 10.36kg
Specification of ATE 24.0122-0282.1 / 240122-02821 / 24012202821:
| OE Number | Reference info |
| SUZUKI 55311-68L50 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle Vehicle Equipment for vehicles with cruise control | 2010-10 - 2017-04 | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle Vehicle Equipment for vehicles with cruise control | 2010-10 - 2017-04 | 69 | 94 | 1242 | Hatchback |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle Vehicle Equipment for vehicles with cruise control | 2010-10 - 2017-04 | 55 | 75 | 1248 | Hatchback |

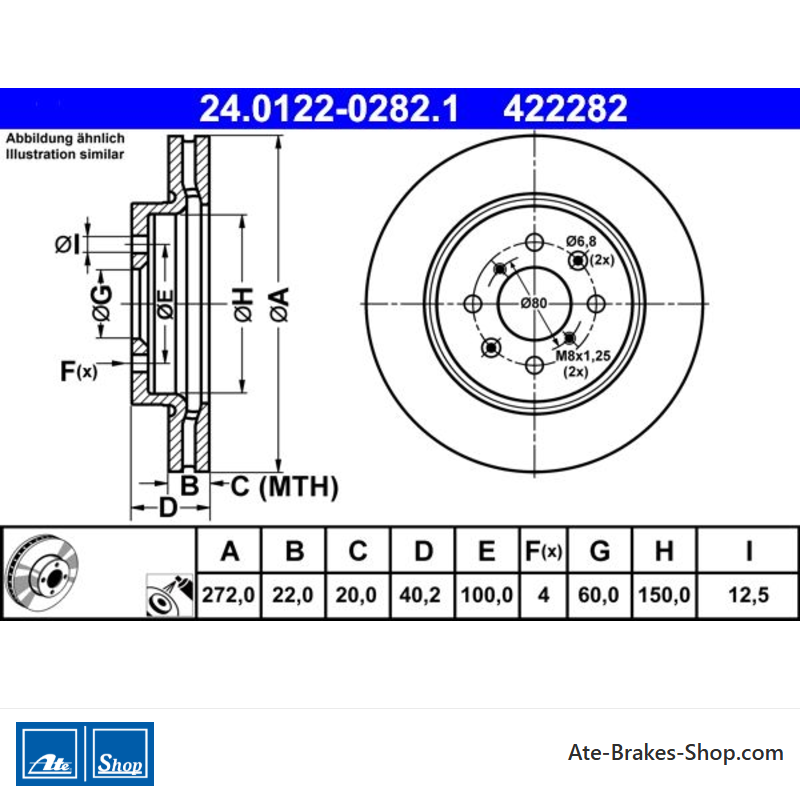

24.0122-0282.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Suzuki
- Handelsnummer
- 422282
- Land van Herkomst
- Duitsland
- Hoogte
- 40,2
- Buitendiameter [mm]
- 272,0
- Remschijfdikte [mm]
- 22,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 60,0
- Binnendiameter [mm]
- 150,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 20,0
Specifieke referenties
- ean13
- 4006633407106
- MPN
- 2401220282102
ATE 24.0122-0282.1
(240122-02821)
- Buitendiameter [mm]: 272,0
- Binnendiameter [mm]: 150,0
- Remschijfdikte [mm]: 22,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 422282
