ATE Original 2 Pieces Brake Disk (24012401181) for Volkswagen (VW)
search
  • ATE Original 2 Pieces Brake Disk (24012401181) for Volkswagen (VW)
  • ATE Original 2 Pieces Brake Disk (24012401181) for Volkswagen (VW)
  • ATE Original 2 Pieces Brake Disk (24012401181) for Volkswagen (VW)

ATE Original 2 Pieces Brake Disk (24012401181) for Volkswagen (VW)

€119.79 (tax incl.)

€99.00 tax excl.

Part-number:

ATE 24.0124-0118.1
(240124-01181)

  • Outer Diameter [mm]: 280,0
  • Inner Diameter [mm]: 144,0
  • Brake Disc Thickness [mm]: 24,0
  • Number of Bolt Holes: 5
  • 2 Pieces of Brake Disc
  • Trade Number: 424118
Logistical information:
68,2Click here for detailed information.
  • Ean Code: 4006633127240
  • Weight: 14.31kg
Quantity

Specification of ATE 24.0124-0118.1 / 240124-01181 / 24012401181:

OE NumberReference info
VAG 701 615 301 DPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 701615301DPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 701 615 301 APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 701615301APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-07 - 2003-0462841968Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-11 - 2003-04811102461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 1995-1244601896Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-07 - 1995-1245611896Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 2003-0450681896Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-07 - 1998-0457782370Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199211

Construction Year to 199506

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 1998-0957782370Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1995-09 - 2003-04751022461Van
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 2003-0462841968Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 2003-06811102461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year to 199506

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-08 - 2003-04811102461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 1995-1244601896Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 2003-0450681896Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 1998-0457782370Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199211

Construction Year to 199506

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 1998-0957782370Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1995-09 - 2003-04751022461Bus
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-07 - 2003-0462841968Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-11 - 2003-04811102461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year to 199506

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-11 - 2001-11811102461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 1995-1244601896Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-07 - 1995-1245611896Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 2003-0450681896Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1990-09 - 1998-0457782370Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199211

Construction Year to 199506

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1992-10 - 1998-0957782370Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year to 199604

for PR number 1LE

for PR number 1LU

Fitting Position Front Axle		1995-09 - 2003-04751022461Platform/Chassis

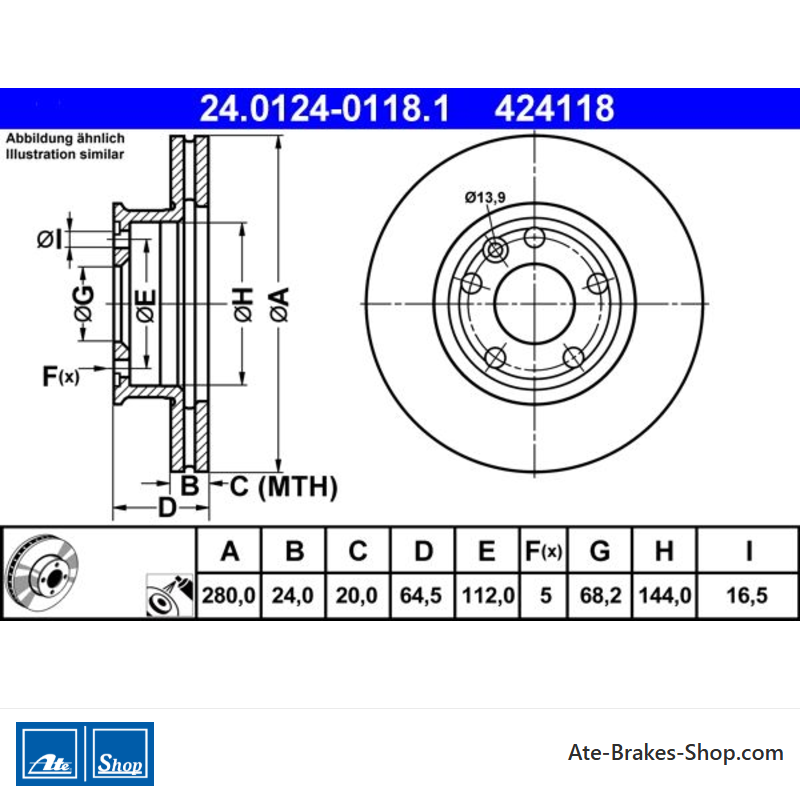

24.0124-0118.1

Data sheet

Article Status
Orderable
Car Brand
Volkswagen (VW)
Trade Number
424118
Country Of Origin
EU
Height
64,5
Outer Diameter [mm]
280,0
Brake Disc Thickness [mm]
24,0
Brake Disc Type
Vented
Processing
Alloyed/High-carbon
Surface
Coated
Number of Bolt Holes
5
Bolt Hole Diameter [mm]
112,0
Centering Diameter [mm]
68,2
Inner Diameter [mm]
144,0
Bore Diameter [mm]
16,5
Minimum Thickness [mm]
20,0

Specific References

EAN13
4006633127240
MPN
2401240118101
