ATE Originele 2-delige remschijf (24012401181) voor Volkswagen (VW)
€ 119,79
(incl. btw)
€ 99,00 belastingexcl.
Onderdeelnummer:
ATE 24.0124-0118.1
(240124-01181)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 144,0
- Remschijfdikte [mm]: 24,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 424118
Logistieke informatie:
- Ean Code: 4006633127240
- Gewicht: 14.31kg
Specification of ATE 24.0124-0118.1 / 240124-01181 / 24012401181:
| OE Number | Reference info |
| VAG 701 615 301 D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701615301D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701 615 301 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701615301A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-07 - 1998-04 | 57 | 78 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year from 199211 Construction Year to 199506 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Van |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-09 - 2003-04 | 62 | 84 | 1968 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-09 - 2003-06 | 81 | 110 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199506 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1992-08 - 2003-04 | 81 | 110 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year from 199211 Construction Year to 199506 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Bus |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199506 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1992-11 - 2001-11 | 81 | 110 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year from 199211 Construction Year to 199506 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LE for PR number 1LU Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Platform/Chassis |

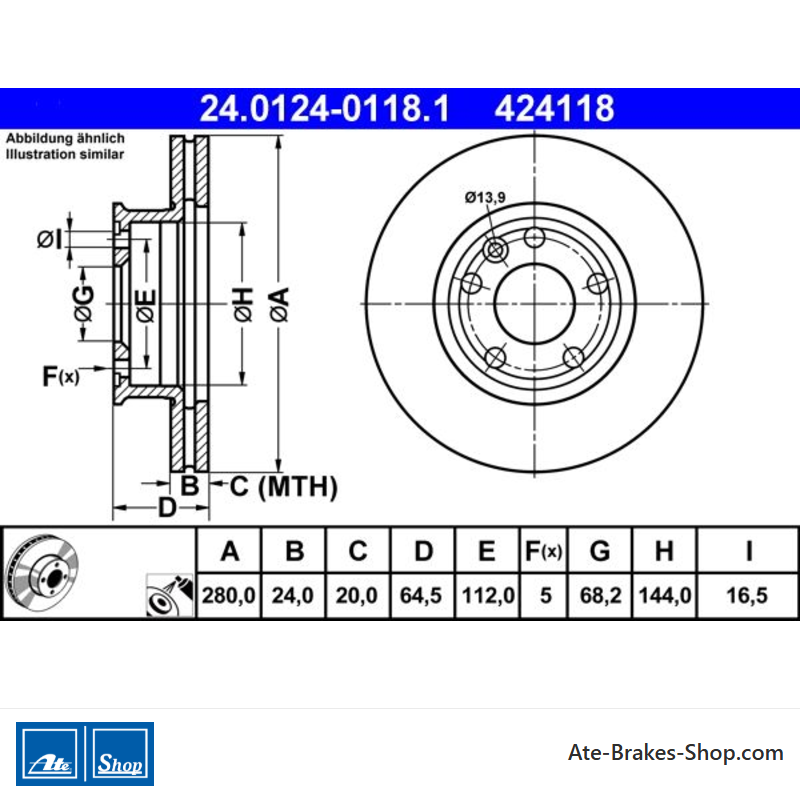

24.0124-0118.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 424118
- Land van Herkomst
- EU
- Hoogte
- 64,5
- Buitendiameter [mm]
- 280,0
- Remschijfdikte [mm]
- 24,0
- Type remschijf
- Geventileerd
- Verwerking
- Gelegeerd/Hoog-koolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 68,2
- Binnendiameter [mm]
- 144,0
- Bordiameter [mm]
- 16,5
- Minimale dikte [mm]
- 20,0
Specifieke referenties
- ean13
- 4006633127240
- MPN
- 2401240118101
ATE 24.0124-0118.1
(240124-01181)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 144,0
- Remschijfdikte [mm]: 24,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 424118
