2 pieces of ATE original Brake Disk (24012502161) for Honda
€112.53
(tax incl.)
€93.00 tax excl.
Part-number:
ATE 24.0125-0216.1
(240125-02161)
- Outer Diameter [mm]: 292,7
- Inner Diameter [mm]: 143,0
- Brake Disc Thickness [mm]: 25,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 425216
Logistical information:
- Ean Code: 4006633462877
- Weight: 14.99kg
Specification of ATE 24.0125-0216.1 / 240125-02161 / 24012502161:
| OE Number | Reference info |
| HONDA 45251-TV2-E02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-TGN-E00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-TV2-E01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-TV2-E00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CIVIC IX Saloon (FB) Fitting Position Front Axle Brake Size 16" | 2012-02 - 2016-12 | 104 | 141 | 1799 | Saloon |
| HONDA CIVIC IX (FK) Fitting Position Front Axle | 2012-02 - 2016-12 | 73 | 99 | 1339 | Hatchback |
| HONDA CIVIC IX (FK) Fitting Position Front Axle Brake Size 16" | 2012-02 - 2016-12 | 104 | 141 | 1798 | Hatchback |
| HONDA CIVIC IX (FK) Fitting Position Front Axle | 2013-02 - 2016-12 | 88 | 120 | 1597 | Hatchback |
| HONDA CIVIC IX (FK) Fitting Position Front Axle | 2012-02 - 2016-12 | 110 | 150 | 2199 | Hatchback |
| HONDA CIVIC IX Tourer (FK) Fitting Position Front Axle | 2014-01 - 2016-12 | 88 | 120 | 1597 | Estate |
| HONDA CIVIC IX Tourer (FK) Fitting Position Front Axle Brake Size 16" | 2014-01 - 2016-12 | 104 | 141 | 1798 | Estate |
| HONDA CIVIC X Saloon (FC_) Fitting Position Front Axle | 2016-08 - 2022-12 | 134 | 182 | 1498 | Saloon |
| HONDA CIVIC X Saloon (FC_) Construction Year from 201702 Fitting Position Front Axle Transmission Type CVT automatic transmission (stepless) | 2016-09 - 2022-12 | 92 | 125 | 1597 | Saloon |
| HONDA CIVIC X Saloon (FC_) Fitting Position Front Axle | 2019-01 - 2022-12 | 92 | 125 | 1597 | Saloon |
| HONDA CIVIC X Saloon (FC_) Fitting Position Front Axle | 2018-05 - 2022-12 | 88 | 120 | 1597 | Saloon |
| HONDA CIVIC X Hatchback (FC_, FK_) Fitting Position Front Axle Transmission Type CVT automatic transmission (stepless) | 2017-02 - 2022-12 | 134 | 182 | 1498 | Hatchback |
| HONDA CIVIC X Hatchback (FC_, FK_) Fitting Position Front Axle | 2018-01 - 2022-12 | 88 | 120 | 1597 | Hatchback |

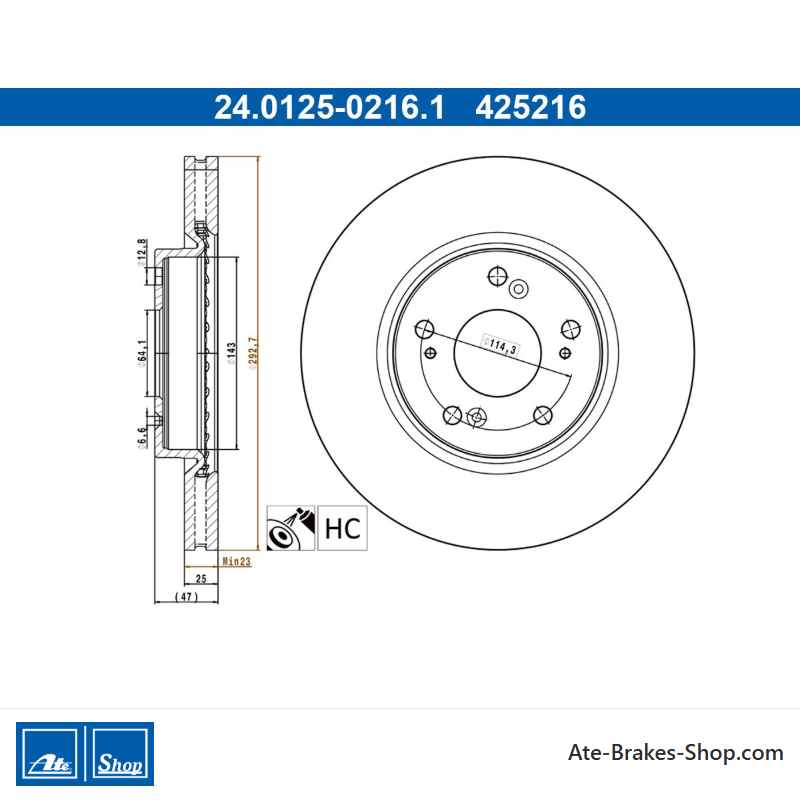

24.0125-0216.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Honda
- Trade Number
- 425216
- Country Of Origin
- Germany
- Height
- 47,0
- Outer Diameter [mm]
- 292,7
- Brake Disc Thickness [mm]
- 25,0
- Brake Disc Type
- Vented
- Processing
- Alloyed/High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 64,1
- Inner Diameter [mm]
- 143,0
- Bore Diameter [mm]
- 12,8
- Minimum Thickness [mm]
- 23,0
Specific References
- EAN13
- 4006633462877
- MPN
- 2401250216102
ATE 24.0125-0216.1
(240125-02161)
- Outer Diameter [mm]: 292,7
- Inner Diameter [mm]: 143,0
- Brake Disc Thickness [mm]: 25,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 425216
