ATE Originele 2-delige remschijf (24012502161) voor Honda
€ 112,53
(incl. btw)
€ 93,00 belastingexcl.
Onderdeelnummer:
ATE 24.0125-0216.1
(240125-02161)
- Buitendiameter [mm]: 292,7
- Binnendiameter [mm]: 143,0
- Remschijfdikte [mm]: 25,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 425216
Logistieke informatie:
- Ean Code: 4006633462877
- Gewicht: 14.99kg

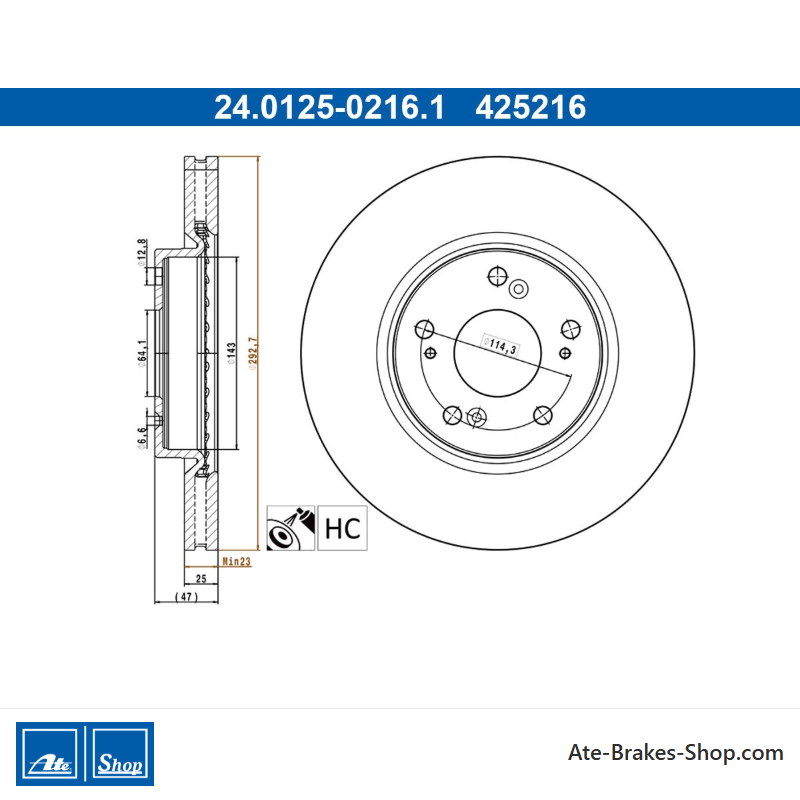

Specification of ATE 24.0125-0216.1 / 240125-02161 / 24012502161:
| OE Number | Reference info |
| HONDA 45251-TV2-E02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-TGN-E00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-TV2-E01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-TV2-E00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CIVIC IX Saloon (FB) Fitting Position Front Axle Brake Size 16" | 2012-02 - 2016-12 | 104 | 141 | 1799 | Saloon |
| HONDA CIVIC IX (FK) Fitting Position Front Axle | 2012-02 - 2016-12 | 73 | 99 | 1339 | Hatchback |
| HONDA CIVIC IX (FK) Fitting Position Front Axle Brake Size 16" | 2012-02 - 2016-12 | 104 | 141 | 1798 | Hatchback |
| HONDA CIVIC IX (FK) Fitting Position Front Axle | 2013-02 - 2016-12 | 88 | 120 | 1597 | Hatchback |
| HONDA CIVIC IX (FK) Fitting Position Front Axle | 2012-02 - 2016-12 | 110 | 150 | 2199 | Hatchback |
| HONDA CIVIC IX Tourer (FK) Fitting Position Front Axle | 2014-01 - 2016-12 | 88 | 120 | 1597 | Estate |
| HONDA CIVIC IX Tourer (FK) Fitting Position Front Axle Brake Size 16" | 2014-01 - 2016-12 | 104 | 141 | 1798 | Estate |
| HONDA CIVIC X Saloon (FC_) Fitting Position Front Axle | 2016-08 - 2022-12 | 134 | 182 | 1498 | Saloon |
| HONDA CIVIC X Saloon (FC_) Construction Year from 201702 Fitting Position Front Axle Transmission Type CVT automatic transmission (stepless) | 2016-09 - 2022-12 | 92 | 125 | 1597 | Saloon |
| HONDA CIVIC X Saloon (FC_) Fitting Position Front Axle | 2019-01 - 2022-12 | 92 | 125 | 1597 | Saloon |
| HONDA CIVIC X Saloon (FC_) Fitting Position Front Axle | 2018-05 - 2022-12 | 88 | 120 | 1597 | Saloon |
| HONDA CIVIC X Hatchback (FC_, FK_) Fitting Position Front Axle Transmission Type CVT automatic transmission (stepless) | 2017-02 - 2022-12 | 134 | 182 | 1498 | Hatchback |
| HONDA CIVIC X Hatchback (FC_, FK_) Fitting Position Front Axle | 2018-01 - 2022-12 | 88 | 120 | 1597 | Hatchback |
24.0125-0216.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 425216
- Land van Herkomst
- Duitsland
- Hoogte
- 47,0
- Buitendiameter [mm]
- 292,7
- Remschijfdikte [mm]
- 25,0
- Type remschijf
- Geventileerd
- Verwerking
- Gelegeerd/Hoog-koolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 64,1
- Binnendiameter [mm]
- 143,0
- Bordiameter [mm]
- 12,8
- Minimale dikte [mm]
- 23,0
Specifieke referenties
- ean13
- 4006633462877
- MPN
- 2401250216102
ATE 24.0125-0216.1
(240125-02161)
- Buitendiameter [mm]: 292,7
- Binnendiameter [mm]: 143,0
- Remschijfdikte [mm]: 25,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 425216
