ATE Original 2 Pieces Brake Disk (24012801751) for Mazda
€101.64
(tax incl.)
€84.00 tax excl.
Part-number:
ATE 24.0128-0175.1
(240128-01751)
- Outer Diameter [mm]: 273,5
- Inner Diameter [mm]: 142,8
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 428175
Logistical information:
- Ean Code: 4006633209519
- Weight: 14.54kg
Specification of ATE 24.0128-0175.1 / 240128-01751 / 24012801751:
| OE Number | Reference info |
| MAZDA T002-33-25XA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA TY01-33-25X | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA MPV II (LW) Construction Year to 200206 Fitting Position Front Axle | 2000-08 - 2002-07 | 88 | 120 | 1991 | MPV |
| MAZDA MPV II (LW) Construction Year to 200007 Fitting Position Front Axle | 1999-09 - 2000-08 | 90 | 122 | 1991 | MPV |
| MAZDA MPV II (LW) Fitting Position Front Axle | 2002-07 - 2006-02 | 104 | 141 | 2261 | MPV |
| MAZDA XEDOS 9 (TA) Fitting Position Front Axle | 1993-08 - 2000-01 | 105 | 143 | 1995 | Saloon |

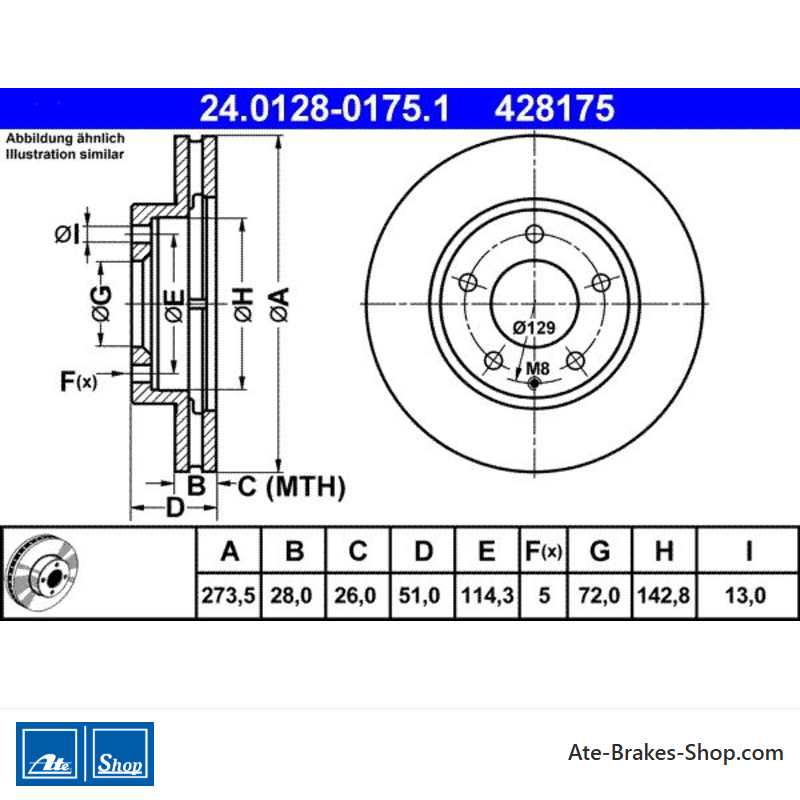

24.0128-0175.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Mazda
- Trade Number
- 428175
- Country Of Origin
- Italy
- Height
- 51,0
- Outer Diameter [mm]
- 273,5
- Brake Disc Thickness [mm]
- 28,0
- Brake Disc Type
- Vented
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 72,0
- Inner Diameter [mm]
- 142,8
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 26,0
Specific References
- EAN13
- 4006633209519
- MPN
- 2401280175102
ATE 24.0128-0175.1
(240128-01751)
- Outer Diameter [mm]: 273,5
- Inner Diameter [mm]: 142,8
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 428175
