ATE Originele 2-delige remschijf (24012801751) voor Mazda
€ 101,64
(incl. btw)
€ 84,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0175.1
(240128-01751)
- Buitendiameter [mm]: 273,5
- Binnendiameter [mm]: 142,8
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 428175
Logistieke informatie:
- Ean Code: 4006633209519
- Gewicht: 14.54kg
Specification of ATE 24.0128-0175.1 / 240128-01751 / 24012801751:
| OE Number | Reference info |
| MAZDA T002-33-25XA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA TY01-33-25X | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA MPV II (LW) Construction Year to 200206 Fitting Position Front Axle | 2000-08 - 2002-07 | 88 | 120 | 1991 | MPV |
| MAZDA MPV II (LW) Construction Year to 200007 Fitting Position Front Axle | 1999-09 - 2000-08 | 90 | 122 | 1991 | MPV |
| MAZDA MPV II (LW) Fitting Position Front Axle | 2002-07 - 2006-02 | 104 | 141 | 2261 | MPV |
| MAZDA XEDOS 9 (TA) Fitting Position Front Axle | 1993-08 - 2000-01 | 105 | 143 | 1995 | Saloon |

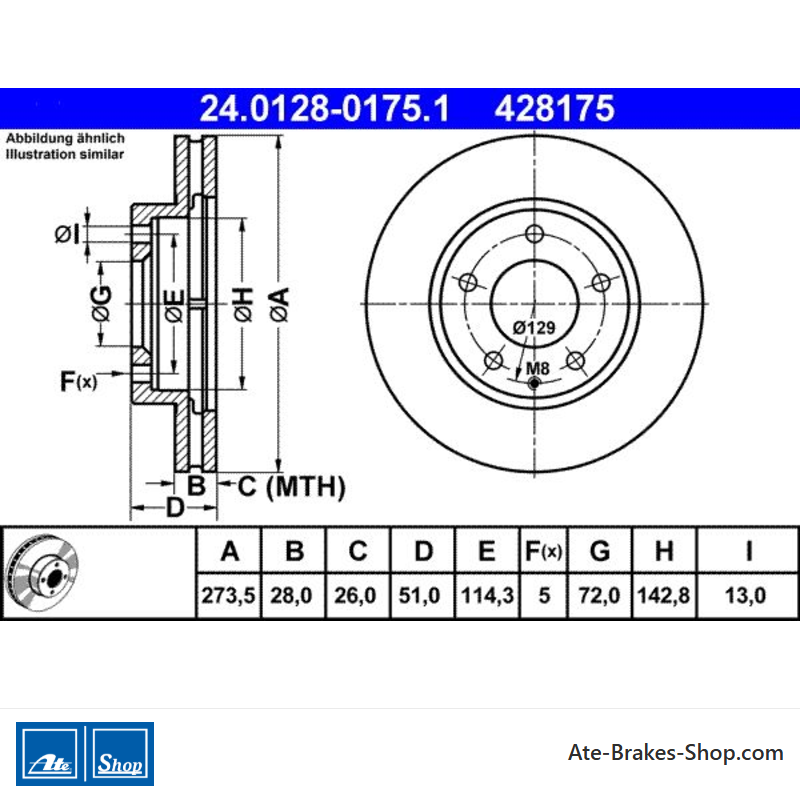

24.0128-0175.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mazda
- Handelsnummer
- 428175
- Land van Herkomst
- Italië
- Hoogte
- 51,0
- Buitendiameter [mm]
- 273,5
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 72,0
- Binnendiameter [mm]
- 142,8
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 26,0
Specifieke referenties
- ean13
- 4006633209519
- MPN
- 2401280175102
ATE 24.0128-0175.1
(240128-01751)
- Buitendiameter [mm]: 273,5
- Binnendiameter [mm]: 142,8
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 428175
