2 pieces of ATE original Brake Disk (24012802171) for Honda
€134.31
(tax incl.)
€111.00 tax excl.
Part-number:
ATE 24.0128-0217.1
(240128-02171)
- Outer Diameter [mm]: 293,0
- Inner Diameter [mm]: 155,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 428217
Logistical information:
- Ean Code: 4006633314596
- Weight: 8.28kg
Specification of ATE 24.0128-0217.1 / 240128-02171 / 24012802171:
| OE Number | Reference info |
| HONDA 45251-SWW-G01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-T1E-G00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-T1E-G01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CR-V III (RE_) Fitting Position Front Axle | 2007-01 - 2012-06 | 110 | 150 | 1997 | SUV |
| HONDA CR-V III (RE_) Fitting Position Front Axle | 2006-10 - 2012-06 | 110 | 150 | 1997 | SUV |
| HONDA CR-V III (RE_) Construction Year from 200701 Construction Year to 201209 Fitting Position Front Axle | 2006-10 - 2012-10 | 118 | 160 | 2354 | SUV |
| HONDA CR-V III (RE_) Construction Year to 201209 Fitting Position Front Axle | 2009-09 - 2012-12 | 122 | 166 | 2354 | SUV |
| HONDA CR-V III (RE_) Fitting Position Front Axle | 2006-06 - 2012-06 | 124 | 168 | 2354 | SUV |
| HONDA CR-V III (RE_) Construction Year to 201209 Fitting Position Front Axle | 2007-04 - 2012-12 | 125 | 170 | 2354 | SUV |
| HONDA CR-V III (RE_) Construction Year to 201209 Fitting Position Front Axle | 2007-04 - 2012-12 | 125 | 170 | 2354 | SUV |
| HONDA CR-V III (RE_) Fitting Position Front Axle | 2007-01 - 2010-02 | 103 | 140 | 2204 | SUV |
| HONDA CR-V III (RE_) Construction Year to 201209 Fitting Position Front Axle | 2007-01 - 2012-06 | 110 | 150 | 2199 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2012-01 - 2018-12 | 110 | 150 | 1997 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2012-10 - 2018-12 | 114 | 155 | 1997 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2012-10 - 2018-12 | 114 | 155 | 1997 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2012-01 - 2018-12 | 140 | 190 | 2354 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2015-09 - 2018-12 | 138 | 188 | 2356 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2013-10 - 2018-08 | 88 | 120 | 1597 | SUV |
| HONDA CR-V IV (RM_) Brake Caliper Type Brake Caliper (1 piston) Fitting Position Front Axle | 2015-02 - 2018-08 | 118 | 160 | 1597 | SUV |
| HONDA CR-V IV (RM_) Brake Caliper Type Brake Caliper (1 piston) Fitting Position Front Axle | 2012-11 - 2015-05 | 110 | 150 | 2199 | SUV |

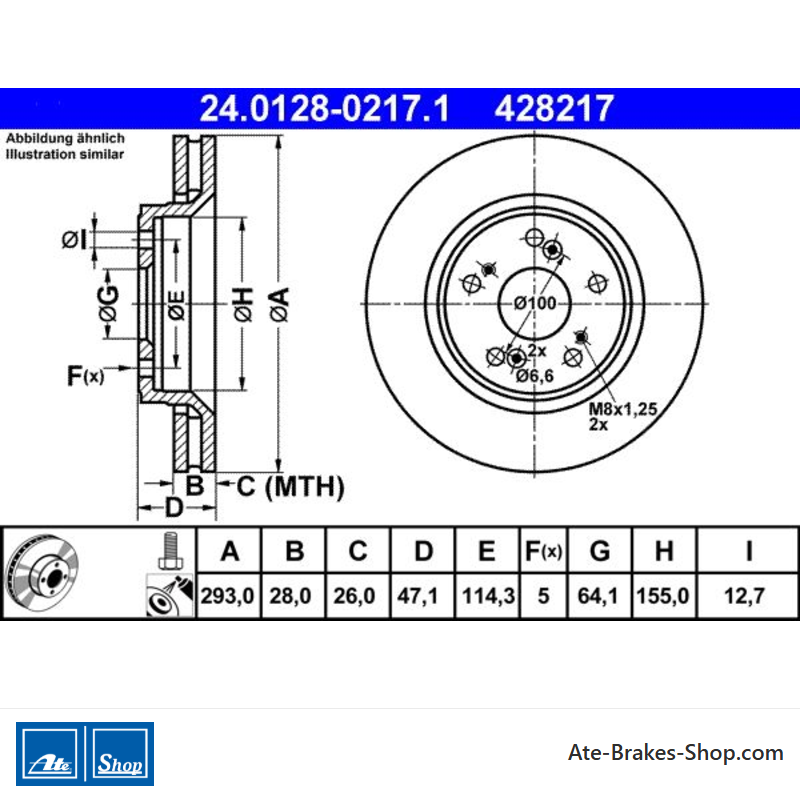

24.0128-0217.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Honda
- Trade Number
- 428217
- Country Of Origin
- China
- Additional Info
- with bolts/screws
- Height
- 47,1
- Outer Diameter [mm]
- 293,0
- Brake Disc Thickness [mm]
- 28,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 64,1
- Inner Diameter [mm]
- 155,0
- Bore Diameter [mm]
- 12,7
- Minimum Thickness [mm]
- 26,0
Specific References
- EAN13
- 4006633314596
- MPN
- 2401280217102
ATE 24.0128-0217.1
(240128-02171)
- Outer Diameter [mm]: 293,0
- Inner Diameter [mm]: 155,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 428217
