ATE Originele remschijf (24012802171) voor Honda
€ 134,31
(incl. btw)
€ 111,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0217.1
(240128-02171)
- Buitendiameter [mm]: 293,0
- Binnendiameter [mm]: 155,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428217
Logistieke informatie:
- Ean Code: 4006633314596
- Gewicht: 8.28kg
Specification of ATE 24.0128-0217.1 / 240128-02171 / 24012802171:
| OE Number | Reference info |
| HONDA 45251-SWW-G01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-T1E-G00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 45251-T1E-G01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CR-V III (RE_) Fitting Position Front Axle | 2007-01 - 2012-06 | 110 | 150 | 1997 | SUV |
| HONDA CR-V III (RE_) Fitting Position Front Axle | 2006-10 - 2012-06 | 110 | 150 | 1997 | SUV |
| HONDA CR-V III (RE_) Construction Year from 200701 Construction Year to 201209 Fitting Position Front Axle | 2006-10 - 2012-10 | 118 | 160 | 2354 | SUV |
| HONDA CR-V III (RE_) Construction Year to 201209 Fitting Position Front Axle | 2009-09 - 2012-12 | 122 | 166 | 2354 | SUV |
| HONDA CR-V III (RE_) Fitting Position Front Axle | 2006-06 - 2012-06 | 124 | 168 | 2354 | SUV |
| HONDA CR-V III (RE_) Construction Year to 201209 Fitting Position Front Axle | 2007-04 - 2012-12 | 125 | 170 | 2354 | SUV |
| HONDA CR-V III (RE_) Construction Year to 201209 Fitting Position Front Axle | 2007-04 - 2012-12 | 125 | 170 | 2354 | SUV |
| HONDA CR-V III (RE_) Fitting Position Front Axle | 2007-01 - 2010-02 | 103 | 140 | 2204 | SUV |
| HONDA CR-V III (RE_) Construction Year to 201209 Fitting Position Front Axle | 2007-01 - 2012-06 | 110 | 150 | 2199 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2012-01 - 2018-12 | 110 | 150 | 1997 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2012-10 - 2018-12 | 114 | 155 | 1997 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2012-10 - 2018-12 | 114 | 155 | 1997 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2012-01 - 2018-12 | 140 | 190 | 2354 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2015-09 - 2018-12 | 138 | 188 | 2356 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Front Axle | 2013-10 - 2018-08 | 88 | 120 | 1597 | SUV |
| HONDA CR-V IV (RM_) Brake Caliper Type Brake Caliper (1 piston) Fitting Position Front Axle | 2015-02 - 2018-08 | 118 | 160 | 1597 | SUV |
| HONDA CR-V IV (RM_) Brake Caliper Type Brake Caliper (1 piston) Fitting Position Front Axle | 2012-11 - 2015-05 | 110 | 150 | 2199 | SUV |

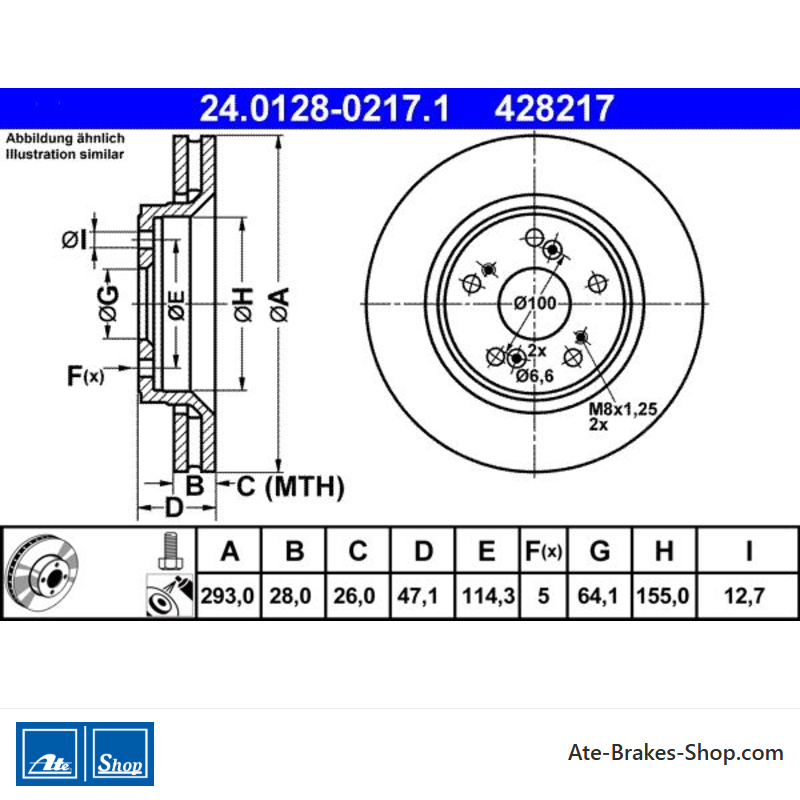

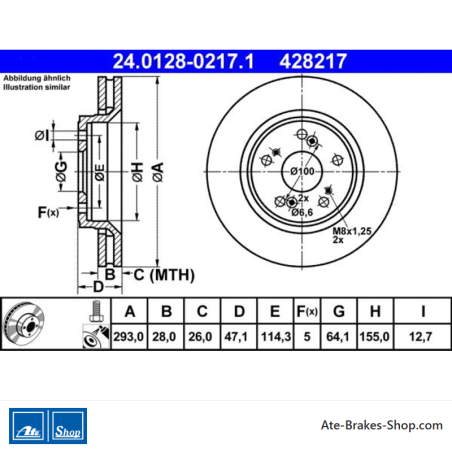

24.0128-0217.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 428217
- Land van Herkomst
- China
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 47,1
- Buitendiameter [mm]
- 293,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 64,1
- Binnendiameter [mm]
- 155,0
- Bordiameter [mm]
- 12,7
- Minimale dikte [mm]
- 26,0
Specifieke referenties
- ean13
- 4006633314596
- MPN
- 2401280217102
ATE 24.0128-0217.1
(240128-02171)
- Buitendiameter [mm]: 293,0
- Binnendiameter [mm]: 155,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 5
- Handelsnummer: 428217
