2 pieces of ATE original Brake Disk (24013002521) for Volkswagen (VW)
€152.46
(tax incl.)
€126.00 tax excl.
Part-number:
ATE 24.0130-0252.1
(240130-02521)
- Outer Diameter [mm]: 332,0
- Inner Diameter [mm]: 165,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 430252
Logistical information:
- Ean Code: 4006633470957
- Weight: 11.61kg
Specification of ATE 24.0130-0252.1 / 240130-02521 / 24013002521:
| OE Number | Reference info |
| VAG 2H6 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 2H6615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2010-12 - 2016-10 | 118 | 160 | 1984 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2010-09 - 2013-10 | 90 | 122 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2010-09 - 2013-10 | 90 | 122 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2012-07 - | 103 | 140 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2012-06 - 2022-05 | 103 | 140 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2010-09 - 2012-08 | 120 | 163 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2010-09 - 2012-08 | 120 | 163 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2011-11 - | 132 | 180 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2011-11 - | 132 | 180 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2016-06 - 2020-06 | 120 | 163 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) Construction Year from 201609 for PR number 2E4 Fitting Position Front Axle | 2016-06 - 2020-06 | 120 | 163 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2016-06 - 2020-08 | 150 | 204 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) Construction Year from 201609 for PR number 2E4 Fitting Position Front Axle | 2016-06 - 2022-05 | 165 | 224 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2018-05 - | 190 | 258 | 2967 | Pickup |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201207 for PR number 2E4 Fitting Position Front Axle | 2011-09 - 2013-10 | 90 | 122 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201207 for PR number 2E4 Fitting Position Front Axle | 2011-09 - 2016-10 | 103 | 140 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201206 for PR number 2E4 Fitting Position Front Axle | 2011-09 - 2016-10 | 103 | 140 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) for PR number 2E4 Fitting Position Front Axle | 2012-05 - 2016-10 | 132 | 180 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201111 for PR number 2E4 Fitting Position Front Axle | 2011-09 - 2022-05 | 132 | 180 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) for PR number 2E4 Fitting Position Front Axle | 2016-06 - 2020-08 | 150 | 204 | 2967 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) for PR number 2E4 Fitting Position Front Axle | 2018-05 - 2022-05 | 190 | 258 | 2967 | Platform/Chassis |
24.0130-0252.1

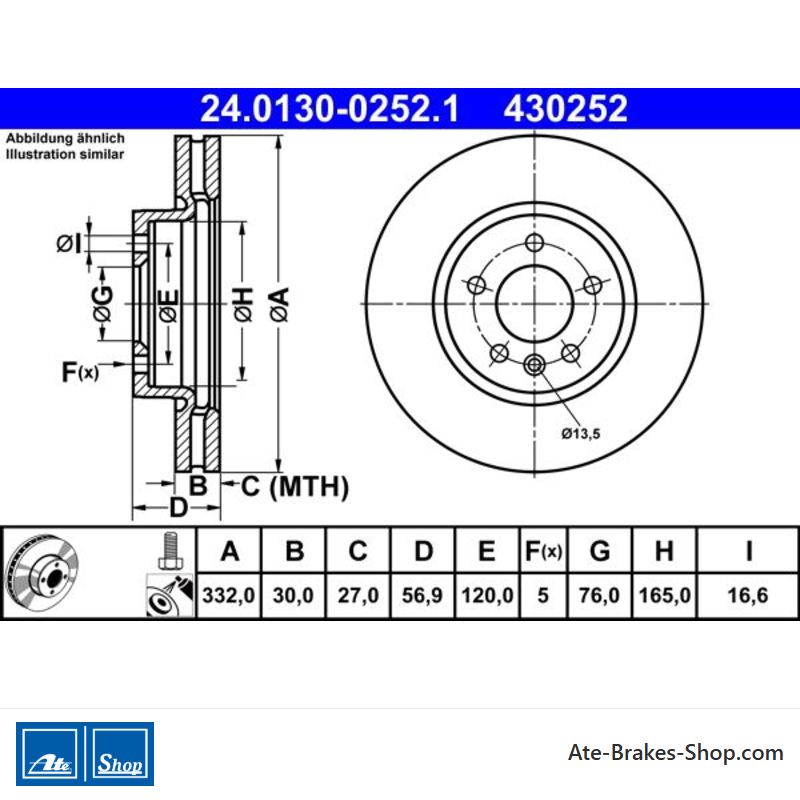

Data sheet
- Article Status
- Orderable
- Car Brand
- Volkswagen (VW)
- Trade Number
- 430252
- Country Of Origin
- Italy
- Additional Info
- with bolts/screws
- Height
- 56,9
- Outer Diameter [mm]
- 332,0
- Brake Disc Thickness [mm]
- 30,0
- Brake Disc Type
- Vented
- Processing
- Alloyed/High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 120,0
- Centering Diameter [mm]
- 76,0
- Inner Diameter [mm]
- 165,0
- Bore Diameter [mm]
- 16,6
- Minimum Thickness [mm]
- 27,0
Specific References
- EAN13
- 4006633470957
- MPN
- 2401300252102
ATE 24.0130-0252.1
(240130-02521)
- Outer Diameter [mm]: 332,0
- Inner Diameter [mm]: 165,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 430252
