ATE Originale Bremsscheibe (24013002521) für Volkswagen (VW)
152,46 €
(inkl. MwSt.)
126,00 € Steuerexzl.
Teilenummer:
ATE 24.0130-0252.1
(240130-02521)
- Außendurchmesser [mm]: 332,0
- Innendurchmesser [mm]: 165,0
- Bremsscheibendicke [mm]: 30,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 430252
Logistische Informationen:
- Ean-Code: 4006633470957
- Gewicht: 11.61kg
Specification of ATE 24.0130-0252.1 / 240130-02521 / 24013002521:
| OE Number | Reference info |
| VAG 2H6 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 2H6615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2010-12 - 2016-10 | 118 | 160 | 1984 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2010-09 - 2013-10 | 90 | 122 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2010-09 - 2013-10 | 90 | 122 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2012-07 - | 103 | 140 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2012-06 - 2022-05 | 103 | 140 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2010-09 - 2012-08 | 120 | 163 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2010-09 - 2012-08 | 120 | 163 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2011-11 - | 132 | 180 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2011-11 - | 132 | 180 | 1968 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2016-06 - 2020-06 | 120 | 163 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) Construction Year from 201609 for PR number 2E4 Fitting Position Front Axle | 2016-06 - 2020-06 | 120 | 163 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2016-06 - 2020-08 | 150 | 204 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) Construction Year from 201609 for PR number 2E4 Fitting Position Front Axle | 2016-06 - 2022-05 | 165 | 224 | 2967 | Pickup |
| VW AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) for PR number 2E4 Fitting Position Front Axle | 2018-05 - | 190 | 258 | 2967 | Pickup |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201207 for PR number 2E4 Fitting Position Front Axle | 2011-09 - 2013-10 | 90 | 122 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201207 for PR number 2E4 Fitting Position Front Axle | 2011-09 - 2016-10 | 103 | 140 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201206 for PR number 2E4 Fitting Position Front Axle | 2011-09 - 2016-10 | 103 | 140 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) for PR number 2E4 Fitting Position Front Axle | 2012-05 - 2016-10 | 132 | 180 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) Construction Year from 201111 for PR number 2E4 Fitting Position Front Axle | 2011-09 - 2022-05 | 132 | 180 | 1968 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) for PR number 2E4 Fitting Position Front Axle | 2016-06 - 2020-08 | 150 | 204 | 2967 | Platform/Chassis |
| VW AMAROK Platform/Chassis (S1B, S6B, S7B) for PR number 2E4 Fitting Position Front Axle | 2018-05 - 2022-05 | 190 | 258 | 2967 | Platform/Chassis |

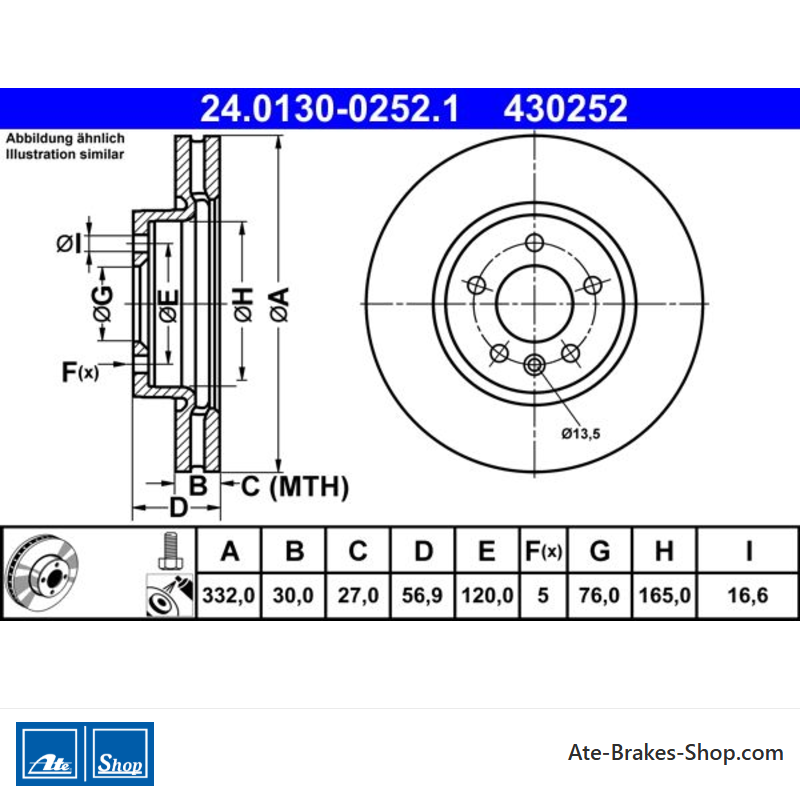

24.0130-0252.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Volkswagen (VW)
- Handelsnummer
- 430252
- Herkunftsland
- Italien
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 56,9
- Außendurchmesser [mm]
- 332,0
- Bremsscheibendicke [mm]
- 30,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Legierte/Hochkohlenstoff-Legierungen
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 120,0
- Zentrierungsdurchmesser [mm]
- 76,0
- Innendurchmesser [mm]
- 165,0
- Bohrdurchmesser [mm]
- 16,6
- Mindestdicke [mm]
- 27,0
Spezifische Referenzen
- ean13
- 4006633470957
- Hersteller-Teilenummer (MPN)
- 2401300252102
ATE 24.0130-0252.1
(240130-02521)
- Außendurchmesser [mm]: 332,0
- Innendurchmesser [mm]: 165,0
- Bremsscheibendicke [mm]: 30,0
- Anzahl der Bolzenlöcher: 5
- Handelsnummer: 430252
