2 pieces of ATE original Brake Disk (24013101001) for Ford
€156.09
(tax incl.)
€129.00 tax excl.
Part-number:
ATE 24.0131-0100.1
(240131-01001)
- Outer Diameter [mm]: 308,0
- Inner Diameter [mm]: 135,5
- Brake Disc Thickness [mm]: 31,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 431100
Logistical information:
- Ean Code: 4006633427173
- Weight: 11.45kg
Specification of ATE 24.0131-0100.1 / 240131-01001 / 24013101001:
| OE Number | Reference info |
| FORD 1812200 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1822205 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD BK31-1125-AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD BK31-1125-AC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2226523 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2527117 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD KK31-1125-AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD KK31-1125-AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-03 - 2025-06 | 135 | 184 | CC | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-03 - 2025-06 | 198 | 269 | CC | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-05 - | 114 | 155 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2021-01 - | 118 | 160 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2023-07 - | 121 | 165 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-05 - | 121 | 165 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2023-07 - | 121 | 165 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2017-01 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 136 | 185 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 136 | 185 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2015-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-03 - 2025-06 | 135 | 184 | CC | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-03 - 2025-06 | 198 | 269 | CC | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2017-01 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2021-01 - | 118 | 160 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2023-07 - | 121 | 165 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-05 - | 121 | 165 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2023-07 - | 121 | 165 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2017-01 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Vehicle Equipment Line/Trim Level +Premier Serie | 2019-05 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 136 | 185 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 136 | 185 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Construction Year from 201405 Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-05 - | 114 | 155 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2021-10 - | 110 | 150 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2021-10 - | 110 | 150 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2023-07 - | 121 | 165 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-05 - | 121 | 165 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - 2024-06 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - 2024-06 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2014-12 - 2018-12 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2015-08 - 2018-12 | 114 | 155 | 2198 | Bus |

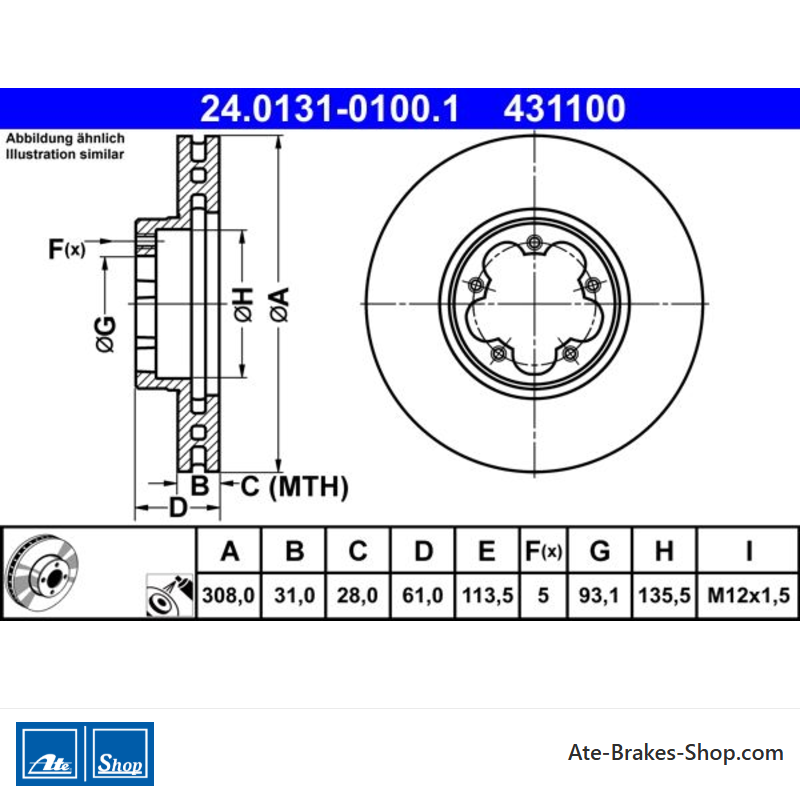

24.0131-0100.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
- Trade Number
- 431100
- Country Of Origin
- Germany
- Height
- 61,0
- Outer Diameter [mm]
- 308,0
- Brake Disc Thickness [mm]
- 31,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 113,5
- Centering Diameter [mm]
- 93,1
- Inner Diameter [mm]
- 135,5
- Thread Size
- M12x1,5
- Minimum Thickness [mm]
- 28,0
Specific References
- EAN13
- 4006633427173
- MPN
- 2401310100102
ATE 24.0131-0100.1
(240131-01001)
- Outer Diameter [mm]: 308,0
- Inner Diameter [mm]: 135,5
- Brake Disc Thickness [mm]: 31,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 431100
