ATE Disque de frein d’origine (24013101001) pour Ford
156,09 €
TTC
129,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0131-0100.1
(240131-01001)
- Diamètre extérieur [mm] : 308,0
- Diamètre intérieur [mm] : 135,5
- Épaisseur du disque de frein [mm] : 31,0
- Nombre de trous de boulon : 5
- Numéro de commerce : 431100
Informations logistiques :
- Code Ean : 4006633427173
- Poids : 11.45kg
Specification of ATE 24.0131-0100.1 / 240131-01001 / 24013101001:
| OE Number | Reference info |
| FORD 1812200 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1822205 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD BK31-1125-AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD BK31-1125-AC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2226523 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2527117 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD KK31-1125-AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD KK31-1125-AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-03 - 2025-06 | 135 | 184 | CC | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-03 - 2025-06 | 198 | 269 | CC | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-05 - | 114 | 155 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2021-01 - | 118 | 160 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2023-07 - | 121 | 165 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-05 - | 121 | 165 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2023-07 - | 121 | 165 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2017-01 - 2024-06 | 125 | 170 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 136 | 185 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 136 | 185 | 1995 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Van (FCD, FDD) Tyres for dual tyres Fitting Position Front Axle | 2015-08 - 2018-12 | 114 | 155 | 2198 | Van |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-03 - 2025-06 | 135 | 184 | CC | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-03 - 2025-06 | 198 | 269 | CC | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2017-01 - | 96 | 130 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2021-01 - | 118 | 160 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2023-07 - | 121 | 165 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-05 - | 121 | 165 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2023-07 - | 121 | 165 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2017-01 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Vehicle Equipment Line/Trim Level +Premier Serie | 2019-05 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - 2024-06 | 125 | 170 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 136 | 185 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 136 | 185 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Construction Year from 201405 Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT V363 Platform/Chassis (FED, FFD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-05 - | 114 | 155 | 1995 | Platform/Chassis |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 77 | 105 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - | 96 | 130 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - | 96 | 130 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2021-10 - | 110 | 150 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2021-10 - | 110 | 150 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2023-07 - | 121 | 165 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2022-05 - | 121 | 165 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2016-03 - 2024-06 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - 2024-06 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Fitting Position Front Axle Tyres for vehicles with rear dual tyres | 2019-05 - 2024-06 | 125 | 170 | 1995 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2013-08 - 2018-12 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2014-12 - 2018-12 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT V363 Bus (FAD, FBD) Tyres for dual tyres Fitting Position Front Axle | 2015-08 - 2018-12 | 114 | 155 | 2198 | Bus |

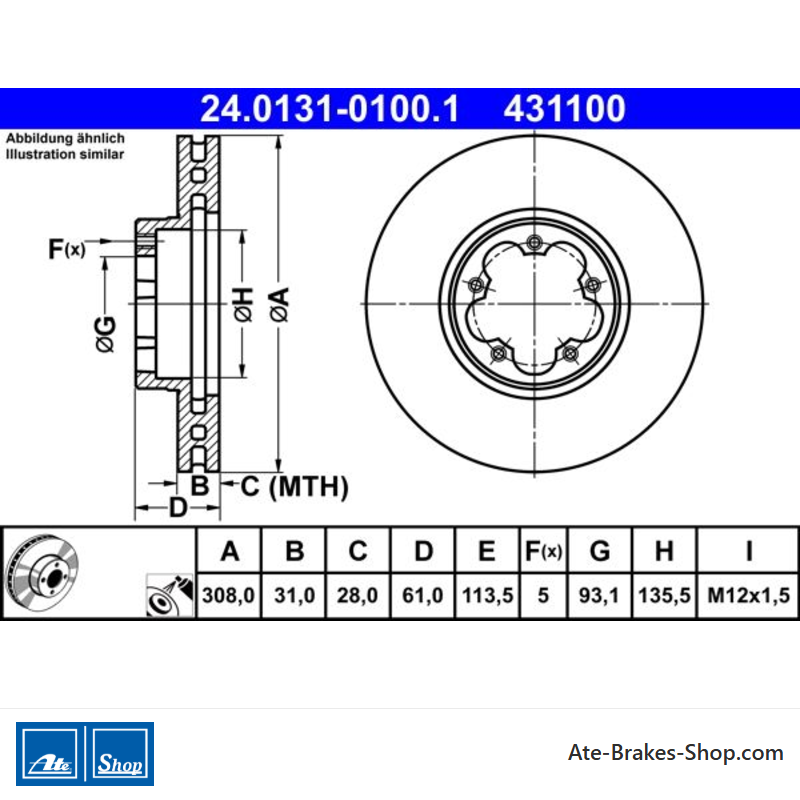

24.0131-0100.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Ford
- Numéro de trade
- 431100
- Pays d’origine
- Allemagne
- Hauteur
- 61,0
- Diamètre extérieur [mm]
- 308,0
- Épaisseur du disque de frein [mm]
- 31,0
- Type à disque de frein
- Ventilé
- Surface
- Enduit
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 113,5
- Diamètre de centrage [mm]
- 93,1
- Diamètre intérieur [mm]
- 135,5
- Taille du filetage
- M12x1,5
- Épaisseur minimale [mm]
- 28,0
Références spécifiques
- EAN-13
- 4006633427173
- MPN
- 2401310100102
ATE 24.0131-0100.1
(240131-01001)
- Diamètre extérieur [mm] : 308,0
- Diamètre intérieur [mm] : 135,5
- Épaisseur du disque de frein [mm] : 31,0
- Nombre de trous de boulon : 5
- Numéro de commerce : 431100
