ATE Original Brake Disk (24013601031) for Audi
€373.89
(tax incl.)
€309.00 tax excl.
Part-number:
ATE 24.0136-0103.1
(240136-01031)
- Outer Diameter [mm]: 385,0
- Inner Diameter [mm]: 135,0
- Brake Disc Thickness [mm]: 36,0
- Number of Bolt Holes: 5
- Trade Number: 436103
Logistical information:
- Ean Code: 4006633230810
- Weight: 17.85kg
Specification of ATE 24.0136-0103.1 / 240136-01031 / 24013601031:
| OE Number | Reference info |
| VAG 4E0 615 301 E | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4E0615301E | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4E0 615 301 K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4E0615301K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2007-08 - 2010-07 | 154 | 210 | 2773 | Saloon |
| AUDI A8 D3 (4E2, 4E8) for PR number 1LJ Fitting Position Front Axle | 2003-07 - 2006-05 | 160 | 218 | 2976 | Saloon |
| AUDI A8 D3 (4E2, 4E8) for PR number 1LJ Fitting Position Front Axle | 2003-07 - 2005-05 | 162 | 220 | 2976 | Saloon |
| AUDI A8 D3 (4E2, 4E8) for PR number 1LJ Fitting Position Front Axle | 2003-07 - 2005-05 | 162 | 220 | 2976 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2005-06 - 2010-07 | 191 | 260 | 3123 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2005-06 - 2010-07 | 191 | 260 | 3123 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year from 200211 for PR number 1LJ Fitting Position Front Axle | 2002-10 - 2006-05 | 206 | 280 | 3697 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year from 200211 Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2002-10 - 2010-07 | 246 | 335 | 4172 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2006-06 - 2010-07 | 257 | 350 | 4163 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 Fitting Position Front Axle | 2006-06 - 2010-07 | 331 | 450 | 5204 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year from 200402 Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2003-12 - 2010-07 | 331 | 450 | 5998 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2003-11 - 2010-07 | 155 | 211 | 2967 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year from 200311 Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2003-08 - 2010-07 | 171 | 233 | 2967 | Saloon |
| AUDI A8 D3 (4E2, 4E8) for PR number 1LJ Fitting Position Front Axle | 2003-05 - 2005-07 | 202 | 275 | 3936 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2005-07 - 2010-07 | 240 | 326 | 4134 | Saloon |

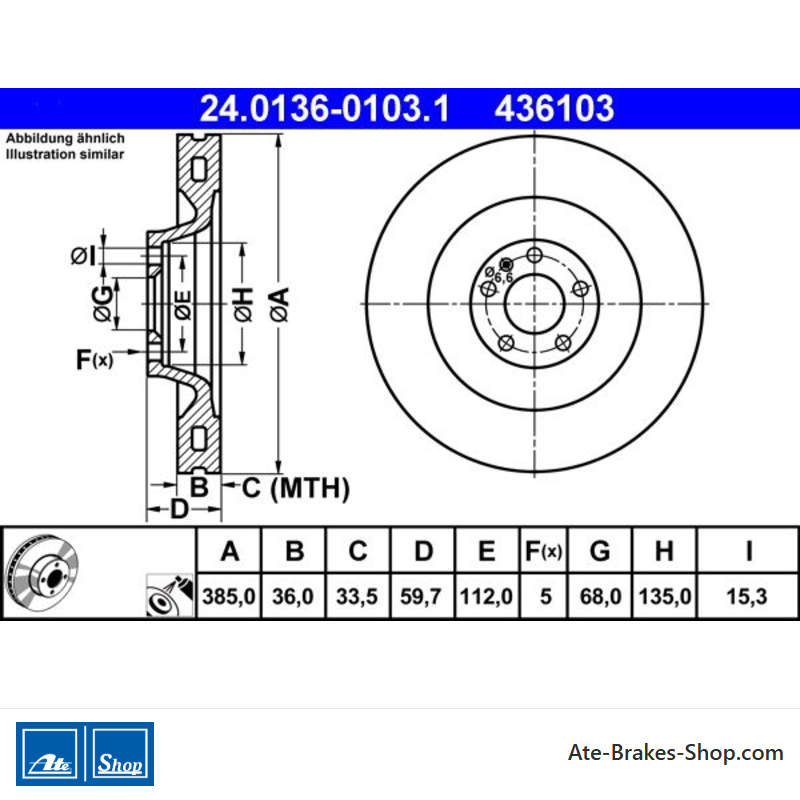

24.0136-0103.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Audi
- Trade Number
- 436103
- Country Of Origin
- Germany
- Height
- 59,7
- Outer Diameter [mm]
- 385,0
- Brake Disc Thickness [mm]
- 36,0
- Brake Disc Type
- Vented
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 112,0
- Centering Diameter [mm]
- 68,0
- Inner Diameter [mm]
- 135,0
- Bore Diameter [mm]
- 15,3
- Minimum Thickness [mm]
- 33,5
Specific References
- EAN13
- 4006633230810
- MPN
- 2401360103102
ATE 24.0136-0103.1
(240136-01031)
- Outer Diameter [mm]: 385,0
- Inner Diameter [mm]: 135,0
- Brake Disc Thickness [mm]: 36,0
- Number of Bolt Holes: 5
- Trade Number: 436103
