ATE Originele remschijf (24013601031) voor Audi
€ 373,89
(incl. btw)
€ 309,00 belastingexcl.
Onderdeelnummer:
ATE 24.0136-0103.1
(240136-01031)
- Buitendiameter [mm]: 385,0
- Binnendiameter [mm]: 135,0
- Remschijfdikte [mm]: 36,0
- Aantal bolt holes: 5
- Handelsnummer: 436103
Logistieke informatie:
- Ean Code: 4006633230810
- Gewicht: 17.85kg
Specification of ATE 24.0136-0103.1 / 240136-01031 / 24013601031:
| OE Number | Reference info |
| VAG 4E0 615 301 E | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4E0615301E | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4E0 615 301 K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4E0615301K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2007-08 - 2010-07 | 154 | 210 | 2773 | Saloon |
| AUDI A8 D3 (4E2, 4E8) for PR number 1LJ Fitting Position Front Axle | 2003-07 - 2006-05 | 160 | 218 | 2976 | Saloon |
| AUDI A8 D3 (4E2, 4E8) for PR number 1LJ Fitting Position Front Axle | 2003-07 - 2005-05 | 162 | 220 | 2976 | Saloon |
| AUDI A8 D3 (4E2, 4E8) for PR number 1LJ Fitting Position Front Axle | 2003-07 - 2005-05 | 162 | 220 | 2976 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2005-06 - 2010-07 | 191 | 260 | 3123 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2005-06 - 2010-07 | 191 | 260 | 3123 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year from 200211 for PR number 1LJ Fitting Position Front Axle | 2002-10 - 2006-05 | 206 | 280 | 3697 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year from 200211 Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2002-10 - 2010-07 | 246 | 335 | 4172 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2006-06 - 2010-07 | 257 | 350 | 4163 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 Fitting Position Front Axle | 2006-06 - 2010-07 | 331 | 450 | 5204 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year from 200402 Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2003-12 - 2010-07 | 331 | 450 | 5998 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2003-11 - 2010-07 | 155 | 211 | 2967 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year from 200311 Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2003-08 - 2010-07 | 171 | 233 | 2967 | Saloon |
| AUDI A8 D3 (4E2, 4E8) for PR number 1LJ Fitting Position Front Axle | 2003-05 - 2005-07 | 202 | 275 | 3936 | Saloon |
| AUDI A8 D3 (4E2, 4E8) Construction Year to 200910 for PR number 1LJ Fitting Position Front Axle | 2005-07 - 2010-07 | 240 | 326 | 4134 | Saloon |

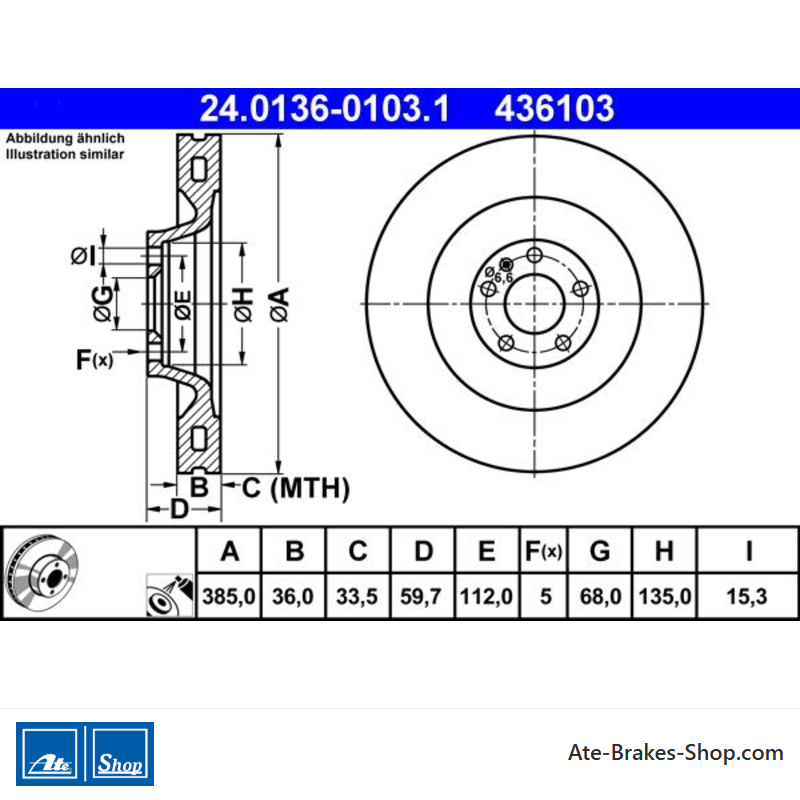

24.0136-0103.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Audi
- Handelsnummer
- 436103
- Land van Herkomst
- Duitsland
- Hoogte
- 59,7
- Buitendiameter [mm]
- 385,0
- Remschijfdikte [mm]
- 36,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 68,0
- Binnendiameter [mm]
- 135,0
- Bordiameter [mm]
- 15,3
- Minimale dikte [mm]
- 33,5
Specifieke referenties
- ean13
- 4006633230810
- MPN
- 2401360103102
ATE 24.0136-0103.1
(240136-01031)
- Buitendiameter [mm]: 385,0
- Binnendiameter [mm]: 135,0
- Remschijfdikte [mm]: 36,0
- Aantal bolt holes: 5
- Handelsnummer: 436103
