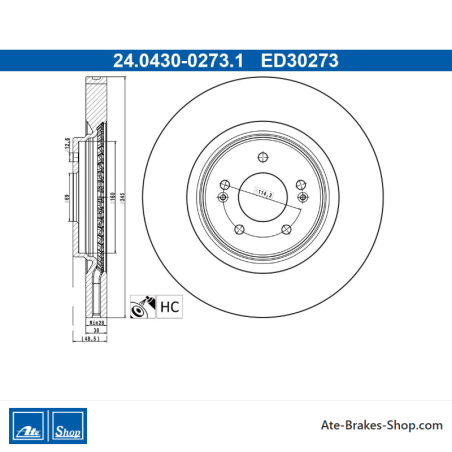

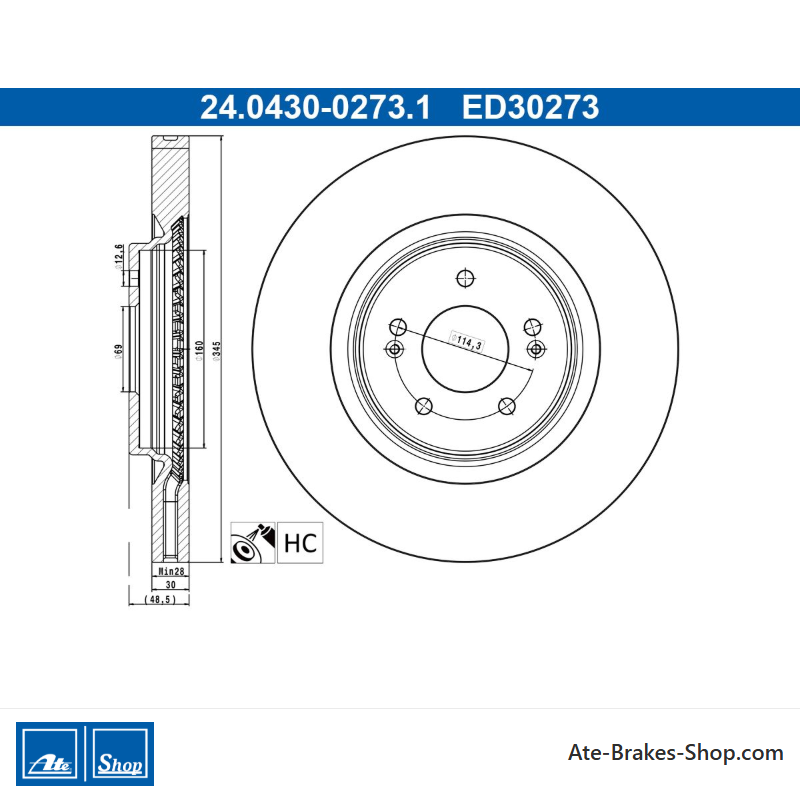

ATE Original Brake Disk (24043002731) for Hyundai, Kia
€98.01
(tax incl.)
€81.00 tax excl.
Part-number:
ATE 24.0430-0273.1
(240430-02731)
- Outer Diameter [mm]: 345,0
- Inner Diameter [mm]: 160,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 5
- Trade Number: ED30273
Logistical information:
- Ean Code: 4006633509770
- Weight: 12.25kg
Specification of ATE 24.0430-0273.1 / 240430-02731 / 24043002731:
| OE Number | Reference info |
| HYUNDAI 51712-L1700 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-L1700 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 125 | 170 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 160 | 218 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 168 | 228 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 173 | 235 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 225 | 305 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 239 | 325 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2023-11 - | 478 | 650 | CC | Hatchback |
| HYUNDAI IONIQ 6 (CE) Fitting Position Front Axle | 2022-10 - | 111 | 151 | CC | Hatchback |
| HYUNDAI IONIQ 6 (CE) Fitting Position Front Axle | 2022-10 - | 168 | 228 | CC | Hatchback |
| HYUNDAI IONIQ 6 (CE) Fitting Position Front Axle | 2022-10 - | 239 | 325 | CC | Hatchback |
| KIA EV6 (CV) Fitting Position Front Axle | 2021-07 - | 125 | 170 | CC | Hatchback |
| KIA EV6 (CV) Fitting Position Front Axle | 2021-07 - | 173 | 235 | CC | Hatchback |
| KIA EV6 (CV) Fitting Position Front Axle | 2021-07 - | 168 | 228 | CC | Hatchback |
| KIA EV6 (CV) Fitting Position Front Axle | 2021-07 - | 239 | 325 | CC | Hatchback |
| KIA EV6 (CV) Fitting Position Front Axle | 2021-07 - | 430 | 585 | CC | Hatchback |
24.0430-0273.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Hyundai
Kia - Trade Number
- ED30273
- Country Of Origin
- China
- Height
- 48,5
- Outer Diameter [mm]
- 345,0
- Brake Disc Thickness [mm]
- 30,0
- Brake Disc Type
- Vented
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 69,0
- Inner Diameter [mm]
- 160,0
- Bore Diameter [mm]
- 12,6
- Minimum Thickness [mm]
- 28,0
Specific References
- EAN13
- 4006633509770
- MPN
- 2404300273102
ATE 24.0430-0273.1
(240430-02731)
- Outer Diameter [mm]: 345,0
- Inner Diameter [mm]: 160,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 5
- Trade Number: ED30273
