ATE Originele remschijf (24043002731) voor Hyundai, Kia
€ 98,01
(incl. btw)
€ 81,00 belastingexcl.
Onderdeelnummer:
ATE 24.0430-0273.1
(240430-02731)
- Buitendiameter [mm]: 345,0
- Binnendiameter [mm]: 160,0
- Remschijfdikte [mm]: 30,0
- Aantal bolt holes: 5
- Handelsnummer: ED30273
Logistieke informatie:
- Ean Code: 4006633509770
- Gewicht: 12.25kg
Specification of ATE 24.0430-0273.1 / 240430-02731 / 24043002731:
| OE Number | Reference info |
| HYUNDAI 51712-L1700 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-L1700 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 125 | 170 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 160 | 218 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 168 | 228 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 173 | 235 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 225 | 305 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2021-05 - | 239 | 325 | CC | Hatchback |
| HYUNDAI IONIQ 5 (NE) Fitting Position Front Axle | 2023-11 - | 478 | 650 | CC | Hatchback |
| HYUNDAI IONIQ 6 (CE) Fitting Position Front Axle | 2022-10 - | 111 | 151 | CC | Hatchback |
| HYUNDAI IONIQ 6 (CE) Fitting Position Front Axle | 2022-10 - | 168 | 228 | CC | Hatchback |
| HYUNDAI IONIQ 6 (CE) Fitting Position Front Axle | 2022-10 - | 239 | 325 | CC | Hatchback |
| KIA EV6 (CV) Fitting Position Front Axle | 2021-07 - | 125 | 170 | CC | Hatchback |
| KIA EV6 (CV) Fitting Position Front Axle | 2021-07 - | 173 | 235 | CC | Hatchback |
| KIA EV6 (CV) Fitting Position Front Axle | 2021-07 - | 168 | 228 | CC | Hatchback |
| KIA EV6 (CV) Fitting Position Front Axle | 2021-07 - | 239 | 325 | CC | Hatchback |
| KIA EV6 (CV) Fitting Position Front Axle | 2021-07 - | 430 | 585 | CC | Hatchback |

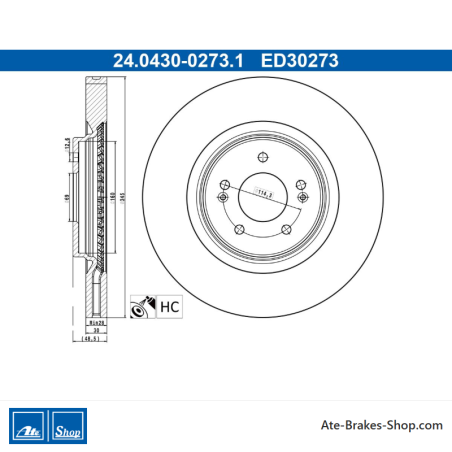

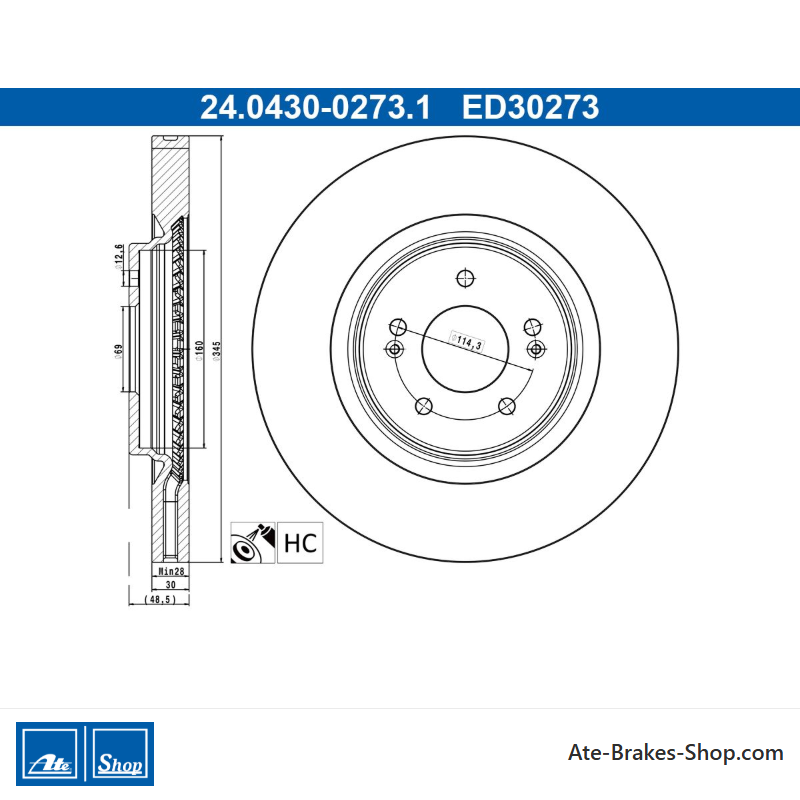

24.0430-0273.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
Kia - Handelsnummer
- ED30273
- Land van Herkomst
- China
- Hoogte
- 48,5
- Buitendiameter [mm]
- 345,0
- Remschijfdikte [mm]
- 30,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 69,0
- Binnendiameter [mm]
- 160,0
- Bordiameter [mm]
- 12,6
- Minimale dikte [mm]
- 28,0
Specifieke referenties
- ean13
- 4006633509770
- MPN
- 2404300273102
ATE 24.0430-0273.1
(240430-02731)
- Buitendiameter [mm]: 345,0
- Binnendiameter [mm]: 160,0
- Remschijfdikte [mm]: 30,0
- Aantal bolt holes: 5
- Handelsnummer: ED30273
