ATE Original-2-teilige Bremstrommel (24021800181) für Honda
87,12 €
(inkl. MwSt.)
72,00 € Steuerexzl.
Teilenummer:
ATE 24.0218-0018.1
(240218-00181)
- Außendurchmesser [mm]: 217,0
- Innendurchmesser [mm]: 180,0
- Trägerplattendurchmesser [mm]: 61,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480063
- Ean-Code: 4006633302807
- Gewicht: 7.11kg
Specification of ATE 24.0218-0018.1 / 240218-00181 / 24021800181:
| OE Number | Reference info |
| HONDA 42610-SB2-010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42610-SB2-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CIVIC III Saloon (AM, AK, AU) Construction Year to 198708 Fitting Position Rear Axle | 1985-01 - 1987-10 | 40 | 54 | 1187 | Saloon |
| HONDA CIVIC III Saloon (AM, AK, AU) Construction Year to 198708 Fitting Position Rear Axle | 1983-10 - 1987-10 | 52 | 71 | 1342 | Saloon |
| HONDA CIVIC III Saloon (AM, AK, AU) Construction Year to 198708 Fitting Position Rear Axle | 1983-10 - 1987-10 | 63 | 86 | 1488 | Saloon |
| HONDA CIVIC III Saloon (AM, AK, AU) Construction Year to 198708 Fitting Position Rear Axle | 1986-03 - 1987-10 | 66 | 90 | 1488 | Saloon |
| HONDA CIVIC III Saloon (AM, AK, AU) Construction Year to 198708 Fitting Position Rear Axle | 1985-01 - 1987-10 | 74 | 101 | 1488 | Saloon |
| HONDA CIVIC III Hatchback (AL, AJ, AG, AH) Construction Year to 198708 Fitting Position Rear Axle | 1984-01 - 1987-10 | 40 | 54 | 1187 | Hatchback |
| HONDA CIVIC III Hatchback (AL, AJ, AG, AH) Construction Year to 198708 Fitting Position Rear Axle | 1983-10 - 1987-10 | 52 | 71 | 1342 | Hatchback |
| HONDA CIVIC III Hatchback (AL, AJ, AG, AH) Construction Year to 198708 Fitting Position Rear Axle | 1983-10 - 1987-10 | 63 | 86 | 1488 | Hatchback |
| HONDA CIVIC III Hatchback (AL, AJ, AG, AH) Construction Year to 198708 Fitting Position Rear Axle | 1986-03 - 1987-10 | 66 | 90 | 1488 | Hatchback |
| HONDA CIVIC III Hatchback (AL, AJ, AG, AH) Construction Year to 198708 Fitting Position Rear Axle | 1985-01 - 1987-10 | 74 | 101 | 1488 | Hatchback |
| HONDA CIVIC IV Saloon (ED, EF) Fitting Position Rear Axle | 1987-10 - 1989-12 | 55 | 75 | 1343 | Saloon |
| HONDA CIVIC IV Saloon (ED, EF) Fitting Position Rear Axle | 1987-10 - 1989-12 | 66 | 90 | 1396 | Saloon |
| HONDA CIVIC IV Saloon (ED, EF) Construction Year from 198909 Construction Year to 199108 Fitting Position Rear Axle | 1987-10 - 1991-09 | 66 | 90 | 1493 | Saloon |
| HONDA CIVIC IV Saloon (ED, EF) Construction Year from 198909 Construction Year to 199108 Fitting Position Rear Axle | 1987-10 - 1991-09 | 69 | 94 | 1493 | Saloon |
| HONDA CIVIC IV Hatchback (EC, ED, EE, EF) Fitting Position Rear Axle | 1987-10 - 1989-12 | 55 | 75 | 1343 | Hatchback |
| HONDA CIVIC IV Hatchback (EC, ED, EE, EF) Construction Year to 199108 Fitting Position Rear Axle | 1989-09 - 1991-09 | 55 | 75 | 1343 | Hatchback |
| HONDA CIVIC IV Hatchback (EC, ED, EE, EF) Fitting Position Rear Axle | 1987-10 - 1991-12 | 66 | 90 | 1396 | Hatchback |
| HONDA CIVIC IV Hatchback (EC, ED, EE, EF) Construction Year from 198909 Construction Year to 199108 Fitting Position Rear Axle | 1988-10 - 1991-09 | 66 | 90 | 1493 | Hatchback |
| HONDA CIVIC IV Hatchback (EC, ED, EE, EF) Construction Year from 198909 Construction Year to 199108 Fitting Position Rear Axle | 1988-10 - 1991-09 | 69 | 94 | 1493 | Hatchback |
| HONDA CIVIC V Hatchback (EG, EH) Construction Year to 199510 Fitting Position Rear Axle | 1991-10 - 1995-11 | 55 | 75 | 1343 | Hatchback |
| HONDA CIVIC V Hatchback (EG, EH) Construction Year to 199510 Fitting Position Rear Axle | 1991-10 - 1995-11 | 66 | 90 | 1493 | Hatchback |
| HONDA CIVIC V Hatchback (EG, EH) Construction Year to 199510 Fitting Position Rear Axle | 1991-10 - 1995-11 | 69 | 94 | 1493 | Hatchback |
| HONDA CIVIC VI Hatchback (EJ, EK) Construction Year to 200101 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2001-02 | 55 | 75 | 1396 | Hatchback |
| HONDA CRX I (AF, AS) Fitting Position Rear Axle | 1983-10 - 1986-11 | 74 | 101 | 1488 | Coupe |
| HONDA CRX I (AF, AS) Construction Year from 198612 Construction Year to 198708 Fitting Position Rear Axle | 1986-03 - 1987-10 | 92 | 125 | 1590 | Coupe |
| HONDA CRX III (EH, EG) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-03 - 1998-12 | 92 | 125 | 1590 | Targa |
24.0218-0018.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Honda
- Handelsnummer
- 480063
- Herkunftsland
- Italien

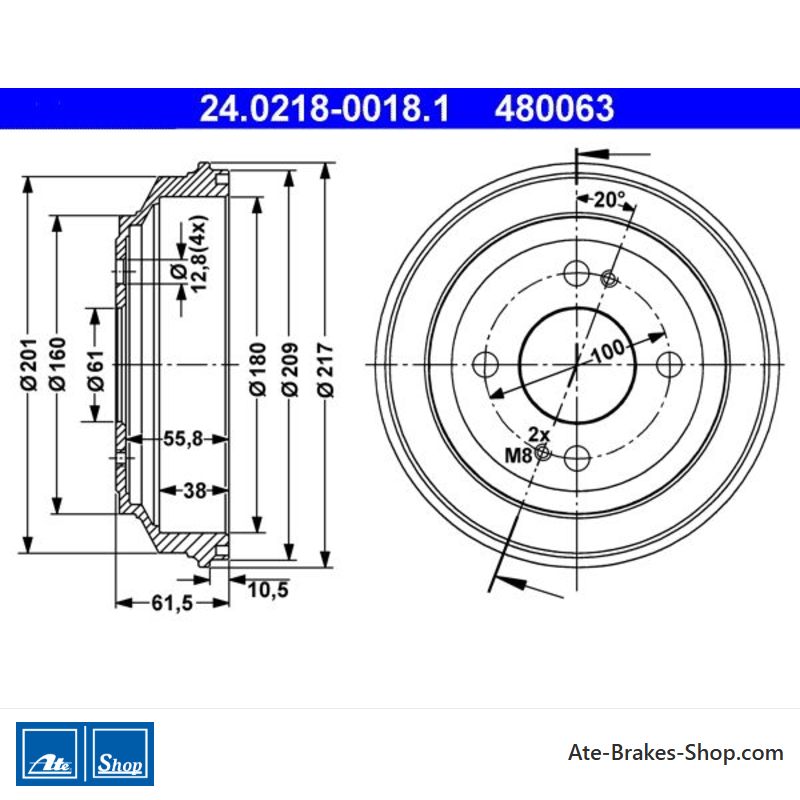

- Höhe
- 61,5
- Außendurchmesser [mm]
- 217,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 61,0
- Innendurchmesser [mm]
- 180,0
- Bohrdurchmesser [mm]
- 12,8
- Max. Bohrende Dimension [mm]
- 181,0
- Innenhöhe der Bremstrommel [mm]
- 38,0
Spezifische Referenzen
- ean13
- 4006633302807
- Hersteller-Teilenummer (MPN)
- 2402180018102
