ATE Original zweiteilige Bremstrommel (24021800231) für Mercedes-Benz
61,71 €
(inkl. MwSt.)
51,00 € Steuerexzl.
Teilenummer:
ATE 24.0218-0023.1
(240218-00231)
- Außendurchmesser [mm]: 220,0
- Innendurchmesser [mm]: 180,0
- Trägerplattendurchmesser [mm]: 67,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480077
- Ean-Code: 4006633068567
- Gewicht: 5.98kg
Specification of ATE 24.0218-0023.1 / 240218-00231 / 24021800231:
| OE Number | Reference info |
| MERCEDES-BENZ 168 423 02 01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 1684230201 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 168 423 04 01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 1684230401 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 168 423 02 01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 1684230201 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 168 423 04 01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 1684230401 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MERCEDES-BENZ A-CLASS (W168) Construction Year from 199709 Fitting Position Rear Axle | 1997-07 - 2004-08 | 60 | 82 | 1397 | Hatchback |
| MERCEDES-BENZ A-CLASS (W168) Fitting Position Rear Axle | 2001-01 - 2004-08 | 60 | 82 | 1598 | Hatchback |
| MERCEDES-BENZ A-CLASS (W168) Construction Year from 199709 Wheelbase for shortened wheelbase for model code/type code 168.033 Fitting Position Rear Axle | 1997-07 - 2004-08 | 75 | 102 | 1598 | Hatchback |
| MERCEDES-BENZ A-CLASS (W168) Construction Year from 199905 Fitting Position Rear Axle Country Specific Design Brazil | 1999-03 - 2004-08 | 92 | 125 | 1898 | Hatchback |
| MERCEDES-BENZ A-CLASS (W168) Construction Year from 199808 Construction Year to 200101 Fitting Position Rear Axle | 1998-07 - 2001-02 | 44 | 60 | 1689 | Hatchback |
| MERCEDES-BENZ A-CLASS (W168) Fitting Position Rear Axle | 2001-02 - 2004-08 | 55 | 75 | 1689 | Hatchback |
| MERCEDES-BENZ A-CLASS (W168) Construction Year to 200101 Fitting Position Rear Axle | 1998-07 - 2001-02 | 66 | 90 | 1689 | Hatchback |
| MERCEDES-BENZ A-CLASS (W168) Wheelbase for shortened wheelbase for model code/type code 168.009 Fitting Position Rear Axle | 2001-02 - 2004-08 | 70 | 95 | 1689 | Hatchback |

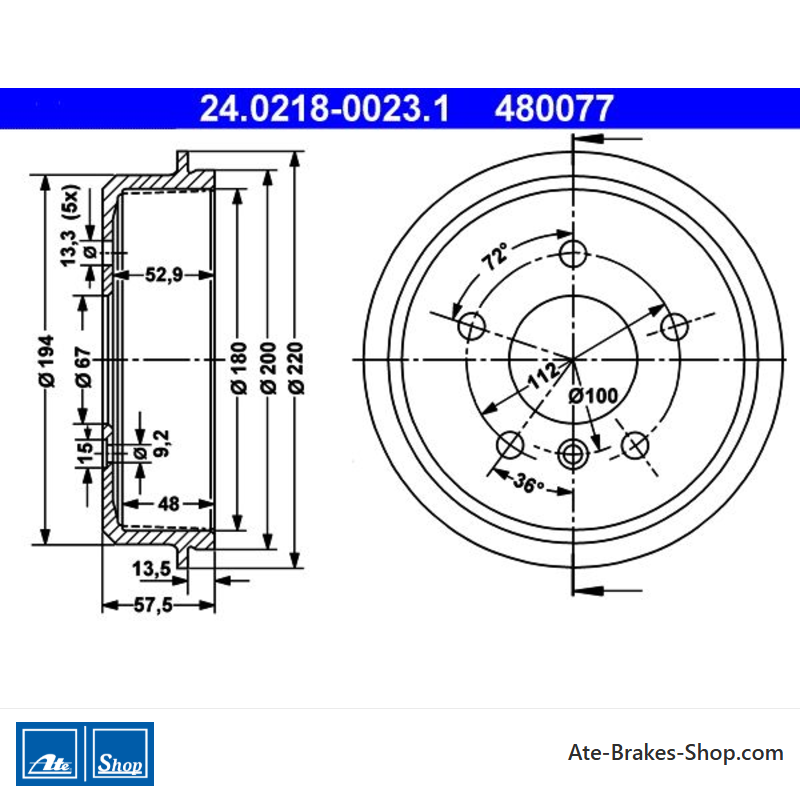

24.0218-0023.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Mercedes-Benz
- Handelsnummer
- 480077
- Herkunftsland
- China
- Höhe
- 57,5
- Außendurchmesser [mm]
- 220,0
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 112,0
- Trägerplattendurchmesser [mm]
- 67,0
- Innendurchmesser [mm]
- 180,0
- Bohrdurchmesser [mm]
- 13,3
- Max. Bohrende Dimension [mm]
- 181,2
- Innenhöhe der Bremstrommel [mm]
- 48,0
Spezifische Referenzen
- ean13
- 4006633068567
- Hersteller-Teilenummer (MPN)
- 2402180023102
ATE 24.0218-0023.1
(240218-00231)
- Außendurchmesser [mm]: 220,0
- Innendurchmesser [mm]: 180,0
- Trägerplattendurchmesser [mm]: 67,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480077
